AXIS P13 Network Camera Series

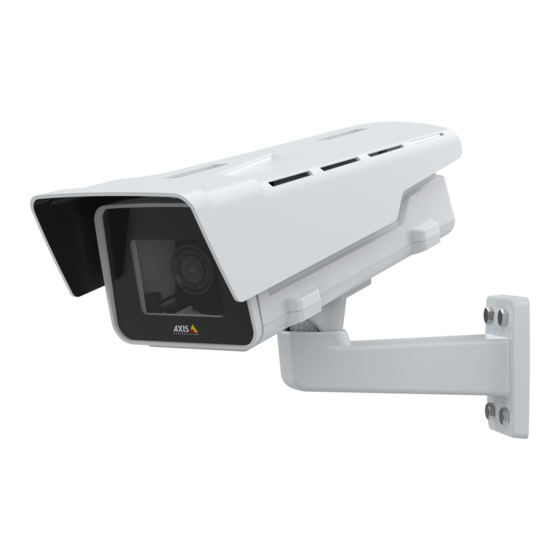

AXIS P1375-E Network Camera
AXIS P1377-LE Network Camera
AXIS P1378-LE Network Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis P1375-E

Summary of Contents for Axis P1375-E

  • Page 1 AXIS P13 Network Camera Series AXIS P1375-E Network Camera AXIS P1377-LE Network Camera AXIS P1378-LE Network Camera User manual...

  • Page 2: Table Of Contents

    AXIS P13 Network Camera Series Table of Contents Product overview ......... . .

  • Page 3: Product Overview

    Optic unit 10 Zoom puller 11 Lock screw for focus ring 12 Focus ring 13 Front heater (only applicable for certain versions) 14 IR illumination LED (AXIS P1377-LE/AXIS P1378-LE) 15 Light sensor (AXIS P1377-LE/AXIS P1378-LE) NOTICE TICE TICE Do not lift the product in the cable cover.
  • Page 4 15 I/O connector 16 RS485/422 connector 17 Power connector 18 Network connector (PoE) 19 microSD card slot 20 Audio in 21 Audio out 22 Status LED 23 Control button 24 Cable gasket M20 (2x) 25 Iris connector 26 Illuminator connector (AXIS P1375-E)

  • Page 5: Installation

    AXIS P13 Network Camera Series Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.

  • Page 6: Find The Device On The Network

    Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 7: Configure Your Device

    AXIS P13 Network Camera Series Configure your device Configure your device Need more help? You can access the built-in help from the device’s webpage. The help provides more detailed information on the device’s features and their settings. Replace the lens 1.

  • Page 8: Hide Parts Of The Image With Privacy Masks

    AXIS P13 Network Camera Series Configure your device Hide parts of the image with privacy masks You can create one or several privacy masks to hide parts of the image. 1. Go to Video > Privacy masks. 2. Click 3. Click the new mask and type a name.

  • Page 9: Select Exposure Mode

    Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.

  • Page 10: Verify The Pixel Resolution

    AXIS P13 Network Camera Series Configure your device Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter. ABC 123 1. Go to Video > Image.

  • Page 11: Show A Text Overlay In The Video Stream When The Device Detects An Object

    4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp, or during product installation and configuration.

  • Page 12: Video Compression Formats

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.

  • Page 13: Reduce Bandwidth And Storage

    Configure your device Note • H.265 is licensed technology. The Axis product includes one H.265 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. • Most web browsers don’t support H.265 decoding and because of this the camera doesn’t support it in its web interface.

  • Page 14: Add Audio To Your Recording

    AXIS P13 Network Camera Series Configure your device Add audio to your recording Turn on audio: 1. Go to Video > Stream > Audio and include audio. 2. If the device has more than one input source, select the correct one in Source.

  • Page 15: Record Video When The Camera Detects An Object

    Applications With applications, you can get more out of your Axis device. AXIS Camera Application Platform (ACAP) is an open platform that makes it possible for third parties to develop analytics and other applications for Axis devices. Applications can be preinstalled on the device, available for download for free, or for a license fee.

  • Page 16: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 17: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 18: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).
  • Page 19 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.

  • Page 20: The Web Interface

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.

  • Page 21: Video

    AXIS P13 Network Camera Series The web interface Ongoing recordings Shows ongoing recordings and their designated storage space. Recordings: View ongoing and filtered recordings and their source. For more information, see Recordings on page 33 Shows the storage space where the recording is saved.
  • Page 22 AXIS P13 Network Camera Series The web interface Starts the wiper. Click and select a preset position to go to that preset position in the live view. Or, click Setup to go to the preset position page. Adds or removes a focus recall area. When you add a focus recall area, the camera saves the focus settings at that specific pan/tilt range.
  • Page 23 AXIS P13 Network Camera Series The web interface Installation Capture mode : A capture mode is a preset configuration that defines how the camera captures images. When you change the capture mode, it can affect many other settings, such as view areas and privacy masks.
  • Page 24 AXIS P13 Network Camera Series The web interface Stabilizer margin : Use the slider to adjust the size of the stabilizer margin, which determines the level of vibration to stabilize. If the product is mounted in an environment with a lot of vibration, move the slider towards Max. As a result, a smaller scene is captured.
  • Page 25 AXIS P13 Network Camera Series The web interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 26 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 27 AXIS P13 Network Camera Series The web interface Illumination angle : Use the slider to manually set the illumination angle, for example, if the angle needs to be different from the camera’s angle of view. If the camera has a wide angle of view, you can set the illumination angle to a narrower angle, which equals a greater tele position.
  • Page 28 AXIS P13 Network Camera Series The web interface • Center: Uses a fixed area in the center of the image to calculate the exposure. The area has a fixed size and position in the live view. • Full : Uses the entire live view to calculate the exposure.
  • Page 29 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 30 AXIS P13 Network Camera Series The web interface P-frames: A P-frame is a predicted image that shows only the changes in the image from the previous frame. Enter the desired number of P-frames. The higher the number, the less bandwidth is required. However, if there is network congestion, there could be a noticeable deterioration in the video quality.

  • Page 31: Audio

    Locate device: Plays a sound that helps you identify the speaker. For some products, the device will flash a LED. Calibrate : Calibrate the speaker. Launch AXIS Audio Manager Edge: Launch the application. Device settings Input: Turn on or off audio input. Shows the type of input.
  • Page 32 AXIS P13 Network Camera Series The web interface Allow stream extraction : Turn on to allow stream extraction. Input type : Select the type of input, for instance, if it’s internal microphone or line. Power type : Select power type for your input.

  • Page 33: Recordings

    AXIS P13 Network Camera Series The web interface Recordings Click to filter the recordings. From: Show recordings done after a certain point in time. To: Show recordings up until a certain point in time. Source : Show recordings based on source. The source refers to the sensor.

  • Page 34: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 35 AXIS P13 Network Camera Series The web interface Note The system uses the date and time settings in all recordings, logs, and system settings. Device location Enter where the device is located. Your video management system can use this information to place the device on a map.
  • Page 36 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 37 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 38 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 39 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 40 AXIS P13 Network Camera Series The web interface Add SSH account: Click to add a new SSH account. • Restrict root access: Turn on to restrict functionality that requires root access. • Enable SSH: Turn on to use SSH service.
  • Page 41 The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both...
  • Page 42 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 43 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 44 AXIS P13 Network Camera Series The web interface Reconnect automatically: Specifies whether the client should reconnect automatically after a disconnect. Connect message Specifies if a message should be sent out when a connection is established. Send message: Turn on to send messages.
  • Page 45 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 46 AXIS P13 Network Camera Series The web interface Write protect: Turn on to stop writing to the network share and protect recordings from being removed. You can’t format a write-protected network share. Retention time: Select how long to keep recordings, to limit the amount of old recordings, or to comply with regulations regarding data storage.
  • Page 47 When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com.
  • Page 48 AXIS P13 Network Camera Series The web interface Add user: Click to add a new ONVIF user. Username: Enter a unique username. New password: Enter a password for the user. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example, letters, numbers, punctuation, and some symbols.
  • Page 49 AXIS P13 Network Camera Series The web interface Trigger delay: Enter the minimum time that the tampering conditions must be active before the alarm triggers. This can help prevent false alarms for known conditions that affect the image. Trigger on dark images: It is very difficult to generate alarms when the camera lens is sprayed, since it is impossible to distinguish that event from other situations where the image turns dark in a similar way, for example, when the lighting conditions change.
  • Page 50 AXIS P13 Network Camera Series The web interface Port Name: Edit the text to rename the port. Direction: indicates that the port is an input port. indicates that it’s an output port. If the port is configurable, you can click the icons to change between input and output.

  • Page 51: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 52 AXIS P13 Network Camera Series The web interface • Factory default: Upgrade and return all settings to the factory default values. When you choose this option, you can’t revert to the previous firmware version after the upgrade. • Autorollback: Upgrade and confirm the upgrade within the set time. If you don’t confirm, the device reverts to the previous firmware version.

  • Page 53: Specifications

    Don’t remove the SD card while the product is running. This device supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

  • Page 54: Buttons

    Ground Line out (mono) Illuminator connector 4-pin connector used to connect AXIS Fixed Box Illuminator Kit A to the camera. I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.
  • Page 55 AXIS P13 Network Camera Series Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 50 mA Input 1 Digital input or Supervised input –...
  • Page 56 AXIS P13 Network Camera Series Specifications RS485/RS422 connector Two 2-pin terminal blocks for RS485/RS422 serial interface used to control auxiliary equipment such as pan-tilt devices. The serial port can be configured to support: • Two-wire RS485 half duplex • Four-wire RS485 full duplex •...

  • Page 57: Ptz Drivers

    PTZ drivers PTZ drivers APTP This is a list of models supported by this driver. The physical installation depends on your Axis product and the PTZ unit. Important Check what serial communication your Axis product and the PTZ unit will support.
  • Page 58 Pelco Spectra Mini • Videotec DTRX3/PTH310P • Videotec ULISSE • PTK AMB • YP3040 Other models may be supported but this has not been verified by Axis. Technical information DEFAULT capabilities for PTZ driver: Driver Pelco 4.17 Version DEFAULT serial configuration: PortMode...

  • Page 59: Visca

    To change serial port settings, go to System > Plain config > Serial in the device’s web interface. Visca This is a list of models supported by this driver. The physical installation depends on your Axis product and the PTZ unit. Important Check what serial communication your Axis product and the PTZ unit will support.
  • Page 60 AXIS P13 Network Camera Series PTZ drivers Note Different PTZ units may have other capabilities (both less and more). Movement Absolute Relative Continuous Tilt Zoom Focus Iris AutoIris AutoFocus IrCutFilter BackLight OSDMenu Connection For the RS485/RS422 pin assignment on your device, see RS485/RS422 connector on page 56.
  • Page 61 User manual Ver. M15.2 AXIS P13 Network Camera Series Date: September 2023 © Axis Communications AB, 2020 - 2023 Part no. T10135686...
