INSTALLATION GUIDE

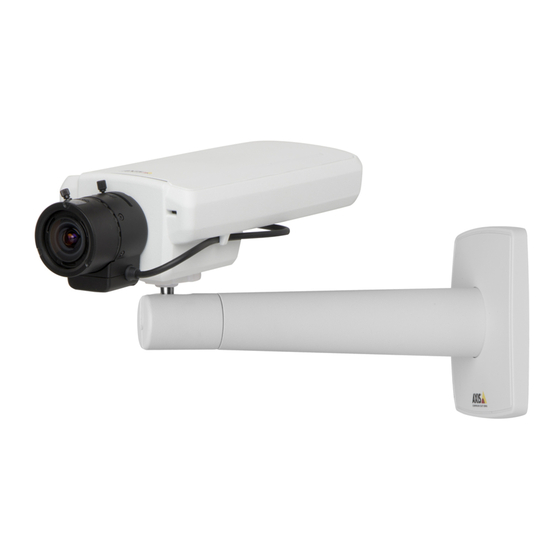

AXIS P1353 Network Camera
AXIS P1354 Network Camera

Advertisement

Table of Contents
loading

Summary of Contents for Axis P1353

  • Page 1 INSTALLATION GUIDE AXIS P1353 Network Camera AXIS P1354 Network Camera...
  • Page 2: Legal Considerations

    • download user documentation and firmware updates • find answers to resolved problems in the FAQ database. Search by product, category, or phrases • report problems to Axis support by logging in to your private support area. • chat with Axis support staff (selected countries only) •...
  • Page 3 • Use only spare parts provided by or recommended by Axis. • Do not attempt to repair the product by yourself, contact Axis or your Axis reseller for ser- vice matters. • This Axis product shall be used in compliance with local laws and regulations.
  • Page 4: Battery Replacement

    Battery Replacement This Axis product uses a 3.0 V CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of 5 years. Low battery power affects the operation of the RTC, causing it to reset at every power-up. A log message will appear when the battery needs replacing.
  • Page 5: Installation Guide

    Page 5 AXIS P1353, AXIS P1354 - Installation Guide This Installation Guide provides instructions for installing AXIS P1353/P1354 Network Camera on your network. For all other aspects of using the product, please see the User Manual, available at www.axis.com Installation steps 1.
  • Page 6: Hardware Overview

    Page 6 AXIS P1353/P1354 Installation Guide Hardware overview LED indicator Internal microphone Zoom puller Focus puller SD card slot (microSD) Network connector PoE Power LED Audio out Network LED Audio in Iris connector Control button Power connector I/O terminal block RS485/422 connector Product number (P/N) &...
  • Page 7: Install The Hardware

    600 g (1.32 lb) Install the hardware IMPORTANT! - AXIS P1353/P1354 is designed for indoor and outdoor use. To use the camera outdoors, it must be installed in an approved outdoor housing. Please see www.axis.com for more information on outdoor housings.
  • Page 8: Adjust Zoom And Focus

    Page 8 AXIS P1353/P1354 Installation Guide Adjust zoom and focus To adjust the zoom and focus follow these instructions: 1. Open the product’s home page and go to Setup > Basic Setup > Focus. 2. Under the Basic tab, click Open iris. If the button is inactive, the iris is already open.
  • Page 9 If movements in front of the camera cannot be avoided, the Focus Assistant should not be used. • If the Control button is not released within two seconds, AXIS Dynamic DNS Service is enabled instead of the Focus Assistant. •...
  • Page 10: Unit Connectors

    Ground DC Power Power input 8-28 V DC AXIS P1353: max 6.4 W AXIS P1354: max 6.4 W Audio in - 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal).
  • Page 11 AXIS P1353/P1354 Installation Guide Page 11 Function Notes Specifications Ground 3.3 V DC Can be used to power auxiliary equipment. Max load = 50 mA Note: This pin can only be used as power out. Power Digital Connect to GND to activate, or leave floating Min.
  • Page 12 Page 12 AXIS P1353/P1354 Installation Guide RS-485/422 - two 2-pin terminal blocks for RS-485/422 serial interface used to control auxiliary equipment. The RS-485/422 serial port can be configured in the following port modes: • Bidirectional RS-485 half-duplex port for data transmission using two wires, one combined RX/TX pair.
  • Page 13: Led Indicators

    AXIS P1353/P1354 Installation Guide Page 13 LED indicators Color Indication Network Green Steady for connection to a 100 Mbit/s network. Flashes for network activity. Amber Steady for connection to 10 Mbit/s network. Flashes for network activity. Unlit No network connection.
  • Page 14: Resetting To The Factory Default Settings

    Further Information The User Manual is available from the Axis Web site at www.axis.com Visit www.axis.com/techsup to check if there is updated firmware available for your network product. To see the currently installed firmware version, see Setup > About. Visit Axis learning center www.axis.com/academy for useful trainings, webinars, tutorials and guides.
  • Page 15 Ce produit Axis doit être utilisé conformément aux lois et réglementations locales en vigueur. • Pour pouvoir être utilisé à l'extérieur, ce produit Axis doit être placé dans un boîtier d'extérieur homologué. • Le produit Axis doit être installé par un professionnel qualifié. Veuillez vous conformer aux règlements nationaux et locaux relatifs à...
  • Page 16 Remplacement des piles Ce produit Axis nécessite une pile au lithium CR2032 de 3,0 V pour l'alimentation de son horloge en temps réel interne. Dans des conditions normales d'utilisation, cette pile est censée durer au moins 5 ans. Si la pile est faible, le fonctionnement de l'horloge en temps réel peut être affecté et entraîner sa réinitialisation à...
  • Page 17 Guide d’installation de l’AXIS P1353 AXIS P1354 Ce guide explique comment installer une caméra réseau AXIS P1353/P1354 sur votre réseau. Pour tous les autres aspects liés à l'utilisation de ce produit, veuillez consulter le Manuel de l'utilisateur, disponible sur www.axis.com Procédure d’installation...
  • Page 18 Page 18 AXIS P1353/P1354 Guide d'installation Vue d’ensemble du matériel Voyant lumineux Microphone interne Commande de zoom Commande de mise au point Logement carte SD (carte microSD) Connecteur réseau PoE Voyant d’alimentation Sortie audio Voyant de réseau Entrée audio Connecteur du diaphragme Bouton de commande Connecteur d’alimentation...
  • Page 19 600 g Installation du matériel IMPORTANT ! - AXIS P1353/P1354 sont conçues pour des utilisations en intérieur et en extérieur. Pour pouvoir être utilisées à l’extérieur, elles doivent être placées dans un boîtier d’extérieur homologué. Consultez le site www.axis.com pour obtenir plus d'informations sur les boîtiers d'extérieur.
  • Page 20 Page 20 AXIS P1353/P1354 Guide d'installation Réglage du zoom et de la mise au point Pour régler le zoom et la mise au point, procédez comme suit : 1. Ouvrez la page d’accueil du produit et sélectionnez Setup > Basic Setup > Focus (Configuration >...
  • Page 21 AXIS P1353/P1354 Guide d’installation Page 21 • Le diaphragme doit toujours être ouvert au maximum lors de la mise au point, ce qui offre la plus petite profondeur de champ et, par conséquent, les meilleures conditions pour une mise au point correcte.
  • Page 22 Si les mouvements devant la caméra ne peuvent pas être évités, l’assistant de mise au point ne doit pas être utilisé. • Si vous ne relâchez pas le bouton de commande dans les deux secondes, le service AXIS Dynamic DNS sera activé au lieu de l’assistant de mise au point. •...
  • Page 23 Mise à la terre Alimentation Puissance d’entrée 8 à AXIS P1353: max 6,4 W 28 V CC AXIS P1354: max 6,4 W Entrée audio - Entrée de 3,5 mm pour microphone mono ou signal mono avec entrée de ligne (le canal de gauche est utilisé...
  • Page 24 Page 24 AXIS P1353/P1354 Guide d'installation Connecteur pour terminaux E/S - Utilisé dans des applications telles que la détection de mouvements, le déclenchement d’événements, l’enregistrement à intervalles et les notifications d’alarme. En plus d’une alimentation auxiliaire et d’une broche GND, il assure l’interface avec : •...
  • Page 25 AXIS P1353/P1354 Guide d’installation Page 25 Le schéma de raccordement ci-après illustre comment connecter un périphérique auxiliaire à la caméra réseau 3.3 V max 50 mA...
  • Page 26 Page 26 AXIS P1353/P1354 Guide d'installation RS-485/422 - Deux blocs terminaux à 2 broches pour l’interface série RS-485/422 utilisée pour le contrôle des équipements auxiliaires. Le port série RS-485/422 peut être configuré dans les modes de port suivants : •...
  • Page 27 AXIS P1353/P1354 Guide d’installation Page 27 Voyants lumineux Couleur Indication Réseau Vert Continu en cas de connexion à un réseau de 100 Mbit/s. Clignote en cas d’activité réseau. Orange Continu en cas de connexion à un réseau de 10 Mbit/s. Clignote en cas d’activité...
  • Page 28 Plus d’informations Vous pouvez consulter le Manuel de l'utilisateur à l'adresse www.axis.com Consultez le site www.axis.com/techsup pour vérifier si des mises à jour des micrologiciels sont disponibles pour votre caméra Axis. Pour connaître la version du micrologiciel actuellement installée, reportez-vous à la page Setup > About (Configuration - À propos de).
  • Page 29 Sicherheitsvorkehrungen Bitte lesen Sie diese Installationsanleitung sorgfältig durch, bevor Sie mit der Installation des Axis Produkts beginnen. Halten Sie die Installationsanleitung bereit, falls Sie darauf zurückgreifen müssen. • Lagern Sie das Axis-Produkt in einer trockenen und belüfteten Umgebung. • Setzen Sie das Axis Produkt keinen Vibrationen, Erschütterungen oder starkem Druck aus.
  • Page 30 Batteriewechsel Dieses Axis-Produkt ist mit einer 3,0 V CR2032 Lithium-Batterie als Stromversorgung für die interne Echtzeituhr (RTC) ausgestattet. Unter normalen Bedingungen hält die Batterie mindestens 5 Jahre. Bei entladener Batterie ist der Betrieb der Echtzeituhr nicht mehr ausreichend gewährleistet, so dass die Uhr bei jedem Systemstart zurückgesetzt wird. Sie erhalten eine Protokollnachricht, wenn ein Batteriewechsel erforderlich ist.
  • Page 31 Seite 31 AXIS P1353, AXIS P1354 - Installationsanleitung In dieser Anleitung wird die Installation einer AXIS P1353/P1354 Netzwerk-Kamera in Ihrem Netzwerk beschrieben. Alle weiteren Hinweise zur Verwendung des Produkts finden Sie im Benutzerhandbuch, das Ihnen unter „www.axis.com“ zur Verfügung steht.
  • Page 32 Seite 32 AXIS P1353/P1354 Installationsanleitung Hardware-Übersicht LED-Anzeige Internes Mikrofon Zoomregler Schärfenregler Einschub für SD-Karte (microSD) Netzwerkanschluss PoE Netz-LED Audio-Ausgang Netzwerk-LED Audio-Eingang Anschluss für Blende Steuertaste Netzanschluss RS485/422 Anschluss E/A-Anschlussblock Teilenummer (P/N) & Seriennummer (S/N). Die Seriennummer wird benötigt für die...
  • Page 33 600 g (1,32 Ib) Installieren Sie die Hardware WICHTIG! - AXIS P1353/P1354 ist für die Verwendung im Innen- und Außenbereich vorgesehen. Um die Kamera im Freien zu verwenden, muss sie in einem für Außenbereiche zugelassenen Gehäuse installiert werden. Auf unserer Homepage unter www.axis.com finden Sie weitere Informationen über Gehäuse für den...
  • Page 34 Seite 34 AXIS P1353/P1354 Installationsanleitung Stellen Sie Zoom und Bildschärfe ein. Befolgen Sie die folgenden Anweisungen, um die Zoomstärke und die Bildschärfe einzustellen: 1. Rufen Sie die Webseite des Produkts auf und gehen Sie auf Einrichtung (Setup) > Standardeinstellung (Basic Setup) > Fokus (Focus).
  • Page 35 AXIS P1353/P1354 Installationsanleitung Seite 35 Steuertaste Zoomregler Schärfenregler Fokus-Assistent Um über den Fokus-Assistenten die Bildschärfe einzustellen, gehen Sie nach den Anweisungen der Schritte 1 bis 3 auf Seite 34 vor, bevor Sie mit den folgenden Schritten fortfahren. 1. Montieren oder platzieren Sie die Kamera so, dass sie sich nicht bewegen kann.
  • Page 36 • Wenn Sie die Steuertaste nicht innerhalb von zwei Sekunden loslassen, wird anstelle des Fokus- Assistenten der AXIS Dynamic DNS Service aktiviert. • Wenn die Kamera so montiert ist, dass die Betätigung der Steuertaste nicht möglich ist, können Sie trotzdem den Fokus-Assistenten verwenden.
  • Page 37 Masse (GND) Masse Gleichstrom Netzeingang 8-28 V AXIS P1353: max 6,4W Gleichstrom AXIS P1354: max 6,4W Audioeingang - 3,5-mm-Anschluss für ein Monomikrofon oder ein Monosignal (linker Kanal wird von einem Stereosignal benutzt). Audio-Ausgang - Audioausgang (Leistungsstufe) zum Anschließen einer Rundrufanlage (PA) oder eines Aktivlautsprechers mit integriertem Verstärker.
  • Page 38 Seite 38 AXIS P1353/P1354 Installationsanleitung E/A Terminalanschluss - Wird z. B. für Bewegungserkennung und Ereignisauslösung, Zeitrafferaufnahmen und Alarmbenachrichtigungen verwendet. Zusätzlich zu den Anschlüssen für die Zusatzstromversorgung und Masse fungiert er als Schnittstelle für: • 1 digitaler Ausgang: Zum Anschluss externer Geräte...
  • Page 39 AXIS P1353/P1354 Installationsanleitung Seite 39 Das folgende Schaltbild zeigt ein Beispiel für den Anschluss eines Zusatzgerätes an die Netzwerk- Kamera 3.3 V max 50 mA...
  • Page 40 Seite 40 AXIS P1353/P1354 Installationsanleitung RS-485/422- - zweipolige Anschlussblöcke für serielle Schnittstellen vom Typ RS-485/422, verwendet zur Steuerung von Zusatzgeräten. Der serielle RS-485/422-Anschluss kann in den folgenden Anschlussmodi konfiguriert werden: • Bidirektionaler RS-485 Halbduplex-Anschluss für die Datenübertragung über zwei Leiter, einem kombinierten RX/TX Paar.
  • Page 41 AXIS P1353/P1354 Installationsanleitung Seite 41 LED-Anzeigen Farbe Bedeutung Netzwerk Grün Leuchtet dauerhaft bei Verbindung mit einem 100-MBit/s-Netzwerk. Blinkt bei Netzwerkaktivität. Gelb Leuchtet dauerhaft bei Verbindung mit einem 10-MBit/s-Netzwerk. Blinkt bei Netzwerkaktivität. Leuchtet Keine Netzwerkverbindung. nicht Status Grün Leuchtet bei Normalbetrieb konstant grün.
  • Page 42: Weitere Informationen

    Unter www.axis.com/techsup finden Sie Firmware-Aktualisierungen für Ihre Netzwerkprodukte. Informationen zur aktuellen Firmware-Version finden Sie unter Einrichtung (Setup) > Info. Im Axis Lernzentrum unter www.axis.com/academy finden Sie hilfreiche Schulungen, Webinare, Lernprogramme und Anleitungen. Garantie Für weitere Informationen zu der Axis-Produkt-Garantie und zu verwandten Themen, finden Sie unter www.axis.com/warranty...
  • Page 43 • Utilizzare solo parti di ricambio fornite o raccomandate da Axis. • Non tentare di riparare il prodotto da soli, contattare Axis o il rivenditore di zona Axis per assistenza. • Questo prodotto Axis deve essere utilizzato in conformità alle leggi e alle disposizioni locali.
  • Page 44 Sostituzione della batteria Questo prodotto Axis utilizza una batteria al litio CR2032 da 3.0 V per alimentare il real-time clock (RTC) interno. In normali condizioni questa batteria ha una durata di almeno 5 anni. La batteria scarica influisce sul funzionamento dell'RTC, che viene reimpostato ad ogni accensione. Un messaggio di registro apparirà...
  • Page 45: Contenuto Della Confezione

    Questo documento fornisce le istruzioni necessarie per installare una Telecamera di rete AXIS P1353/P1354 nella rete in uso. Per tutte le altre informazioni relative all'uso del prodotto, consultare la Guida per l'utente, disponibile sul sito www.axis.com Procedura di installazione Attenersi alla seguente procedura per installare la telecamera di rete nella rete locale (LAN): 1.
  • Page 46 Pagina 46 AXIS P1353/P1354 Guida all'installazione Panoramica dell'hardware Indicatore LED Microfono interno Levetta zoom Levetta di messa a fuoco Slot per schede di memoria SD (microSD) Connettore di rete PoE LED di alimentazione Uscita audio LED di rete Ingresso audio...
  • Page 47 46 x 78 x 205 mm 600 g Installazione dell'hardware IMPORTANTE! - AXIS P1353/P1354 è adatta sia ad ambienti interni che esterni. Per utilizzare la telecamera all'esterno, deve essere installata in un alloggiamento approvato. Andare su www.axis.com per ulteriori informazioni su alloggiamenti da esterni.
  • Page 48 Pagina 48 AXIS P1353/P1354 Guida all'installazione Regolazione dello zoom e della messa a fuoco. Per regolare lo zoom e la messa a fuoco, attenersi alla seguente procedura. 1. Aprire la home page del prodotto e selezionare Setup > Basic Setup > Focus (Configurazione >...
  • Page 49 AXIS P1353/P1354 Guida all'installazione Pagina 49 • Il diaframma deve sempre essere aperto al massimo durante la regolazione della messa a fuoco, poiché questa condizione riduce al minimo la profondità di campo e offre le migliori condizioni per una corretta messa a fuoco.
  • Page 50 Se non è possibile evitare movimenti davanti alla telecamera, non utilizzare Focus Assistant. • Se non si rilascia il pulsante di comando entro due secondi, viene abilitata la funzione AXIS Dynamic DNS Service (Servizio DNS dinamico) anziché Focus Assistant. •...
  • Page 51 Descrizione Terra Alimentazione CC Ingresso alimentazione, AXIS P1353: max 6.4 W 8-28 V CC AXIS P1354: max 6.4 W Ingresso audio - Ingresso da 3.5 mm per microfono in mono o segnale mono line-in (il canale sinistro è usato da un segnale in stereo).
  • Page 52 Pagina 52 AXIS P1353/P1354 Guida all'installazione Connettore morsetto I/O - Usato per applicazioni specifiche, come Motion Detection, l'attivazione di eventi, la registrazione temporizzata e le notifiche di allarme. Oltre a fungere da connettore di alimentazione ausiliario e pin di messa a terra, può...
  • Page 53 AXIS P1353/P1354 Guida all'installazione Pagina 53 Il seguente diagramma di connessione dà un esempio su come collegare una periferica ausiliaria alla telecamera di rete 3.3 V max 50 mA...
  • Page 54 Pagina 54 AXIS P1353/P1354 Guida all'installazione RS-485/422 - Due morsettiere da 2 pin per l'interfaccia seriale RS-485/422, utilizzate per il controllo di periferiche ausiliarie. La porta seriale RS-485/422 può essere configurata su una delle seguenti modalità porta: • Porta bidirezionale RS-485 half-duplex per la trasmissione di dati con due cavi e una coppia RX/TX combinata.
  • Page 55: Indicatori Led

    AXIS P1353/P1354 Guida all'installazione Pagina 55 Indicatori LED Colore Indicazione Connettore Verde Luce fissa: connessione di rete a 100 Mbit/s. Luce lampeggiante: attività di rete. Giallo Luce fissa: connessione di rete a 10 Mbit/s. Luce lampeggiante: attività di rete. Spento Assenza di connessione.
  • Page 56: Ripristino Delle Impostazioni Predefinite

    Per conoscere la versione del firmware installata, vedere > About (Informazioni su). Per utili corsi di formazione, webinar, tutorial e guide, visitare il centro di apprendimento di Axis all'indirizzo www.axis.com/academy. Garanzia Per informazioni sulla garanzia del prodotto Axis e informazioni ad essa relative, consultare la pagina www.axis.com/warranty...
  • Page 57 Medidas preventivas Lea detenidamente esta Guía de instalación antes de instalar el producto Axis. Guarde la Guía de instalación para poder consultarla en el futuro. • Guarde el producto Axis en un entorno seco y ventilado. • Evite exponer el producto Axis a vibraciones, golpes o presiones excesivas. No instale el producto en soportes inestables ni en superficies o paredes inestables o con vibraciones, ya que esto podría dañarlo.
  • Page 58 Sustitución de la batería Este producto Axis utiliza una batería de litio CR2032 3.0 de 3,0 V como fuente de alimentación para su reloj de tiempo real interno (RTC). En condiciones normales, esta batería durará un mínimo de 5 años. Cuando la batería tiene poca carga, el funcionamiento del RTC se puede ver afectado, ya que esto puede hacer que se reinicie cada vez que se encienda.
  • Page 59 AXIS P1353, AXIS P1354 - Guía de instalación En esta guía se proporcionan instrucciones para instalar la Cámara de red AXIS P1353/P1354 en su red. Para cualquier otra cuestión relativa al uso del producto, consulte el Manual del usuario, disponible en www.axis.com.
  • Page 60 Página 60 AXIS P1353/P1354 Guía de instalación Presentación del hardware Indicador LED Micrófono interno Botón del zoom Botón de enfoque Ranura para tarjeta SD (microSD) Conector de red PoE LED de alimentación Salida de audio LED de red Entrada de audio Conector del iris Botón de control...
  • Page 61 600 g (1,32 libras) Instalación del hardware ¡IMPORTANTE! - La AXIS P1353/P1354 está destinada al uso en interiores y exteriores. Para utilizar la cámara en exteriores, debe instalarse en una carcasa protectora para exteriores aprobada. Para obtener más información sobre carcasas para exteriores, consulte el sitio web www.axis.com.
  • Page 62 Página 62 AXIS P1353/P1354 Guía de instalación Ajuste del zoom y el enfoque Para ajustar el zoom y el enfoque, siga estas instrucciones: 1. Abra la página de inicio del producto y diríjase a Setup (Configuración)> Basic Setup (Configuración básica) > Focus (Enfoque).
  • Page 63 AXIS P1353/P1354 Guía de instalación Página 63 • El iris se debe abrir siempre al máximo durante el enfoque, proporcionando la menor profundidad de campo posible y, por tanto, las mejores condiciones para un enfoque correcto. Botón de control Botón del zoom Botón de enfoque...
  • Page 64 • Si no se suelta el botón de control al cabo de dos segundos, se habilita el Servicio de DNS dinámico de AXIS en lugar del Asistente de enfoque. • Si la cámara está montada de manera que no se puede acceder al botón de control, podrá seguir utilizando el Asistente de enfoque.
  • Page 65 AXIS P1353/P1354 Guía de instalación Página 65 Conectores Conector de red - Conector Ethernet RJ 45. Compatible con alimentación a través de Ethernet. Se recomienda emplear cables blindados. Conector de alimentación - Bloque de conectores de 2 pines para entrada de alimentación.
  • Page 66 Página 66 AXIS P1353/P1354 Guía de instalación Conector de terminales de E/S - Se utiliza en aplicaciones tales como detección de movimiento, activación de eventos, grabación a intervalos y notificaciones de alarmas. Además de un pin de alimentación auxiliar y un pin de masa, proporciona a la interfaz la conexión de:...
  • Page 67 AXIS P1353/P1354 Guía de instalación Página 67 El diagrama de conexiones siguiente ofrece un ejemplo de cómo conectar un dispositivo auxiliar a la cámara de red 3.3 V max 50 mA...
  • Page 68 Página 68 AXIS P1353/P1354 Guía de instalación RS-485/422 - Dos bloques de terminales de 2 pines para la interfaz serie RS-485/422 utilizada para controlar equipos auxiliares. El puerto serie RS-485/422 se puede configurar en los modos de puerto siguientes: •...
  • Page 69: Indicadores Led

    AXIS P1353/P1354 Guía de instalación Página 69 Indicadores LED Color Indicación Verde Fijo para indicar la conexión a una red de 100 Mbits/s. Parpadea para indicar actividad en la red. Ámbar Fijo para indicar conexión a una red de 10 Mbits/s. Parpadea para indicar actividad en la red.
  • Page 70 Manual del usuario. Más información El Manual del usuario está disponible en el sitio web de Axis en www.axis.com. Visite www.axis.com/techsup para comprobar si hay disponible firmware actualizado para el producto de red.
  • Page 72 Ver. 1.1 Installation Guide Printed: February 2013 AXIS P1353/P1354 Network Camera © Axis Communications AB 2012-2013 Part No. 50566...
