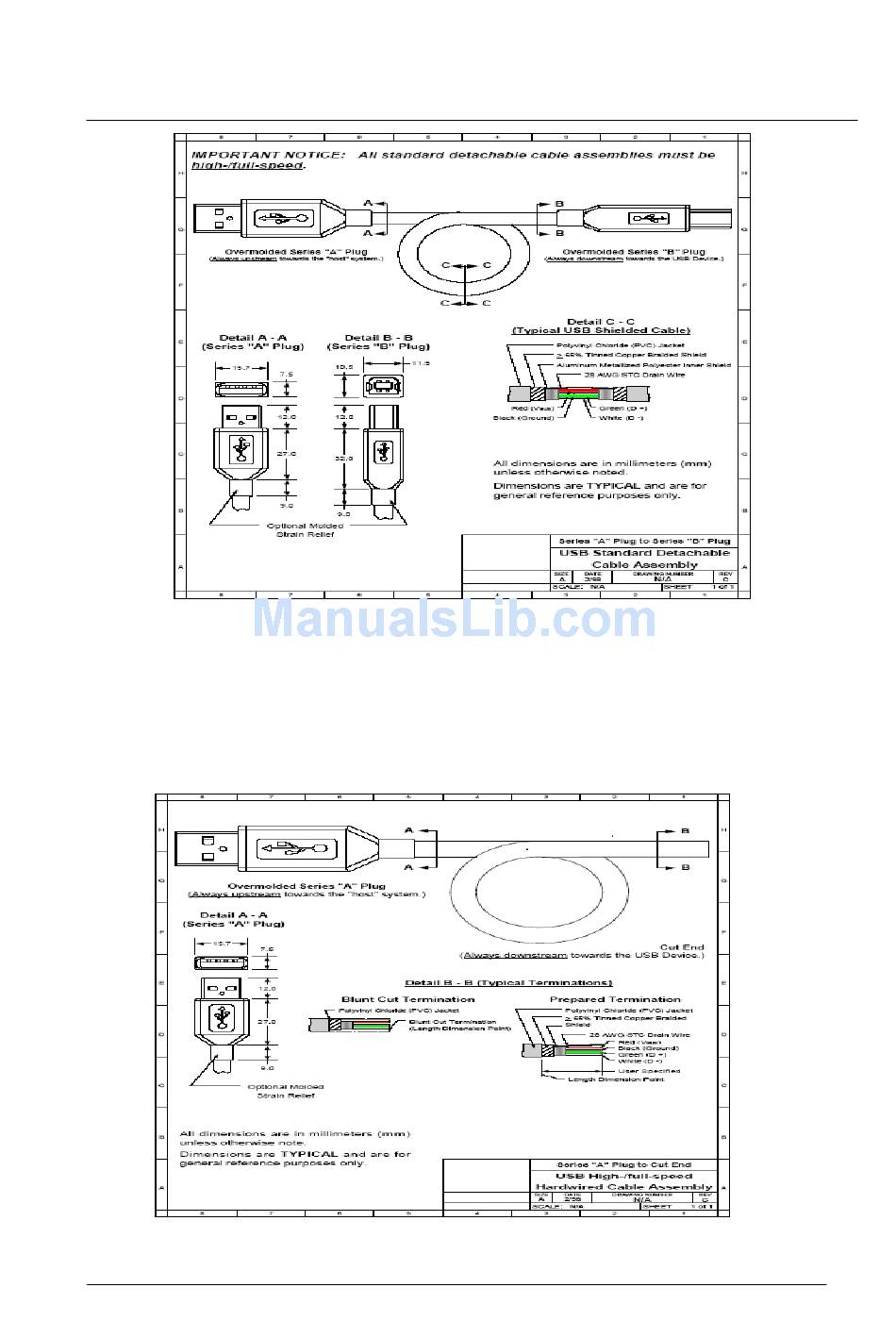

Figure 6-7: USB Standard Detachable Cable Assembly

6.2.1.4.2

High-/full-speed Captive Cable Assemblies

Assemblies are considered captive if they are provided with a vendor-specific connect means (hardwired or
custom detachable) to the peripheral. High-/full-speed hardwired cable assemblies may be used with either
high-speed, full-speed, or low-speed devices. When using a high-/full-speed hardwired cable on a lowspeed
device, the cable must meet all low-speed requirements.
Figure 6-8 illustrates a high-/full-speed hardwired cable assembly.

Figure 6-8: USB High-/full-speed Hardwired Cable Assembly
