the host system.
Series "B" receptacle mates with a Series "B" plug (male). Electrically, Series "B" receptacles
function as inputs to hubs or devices.
Series "B" plug mates with a Series "B" receptacle. The Series "B" plug is always oriented towards
the USB hub or device.
6.2.1.2.1

USB Connector Termination Data

Table 6-1 provides the standardized contact terminating assignments by number and electrical value for
Series "A" and Series "B" connectors.
Spinpoint M8U-Internal Product Manual REV 3.4

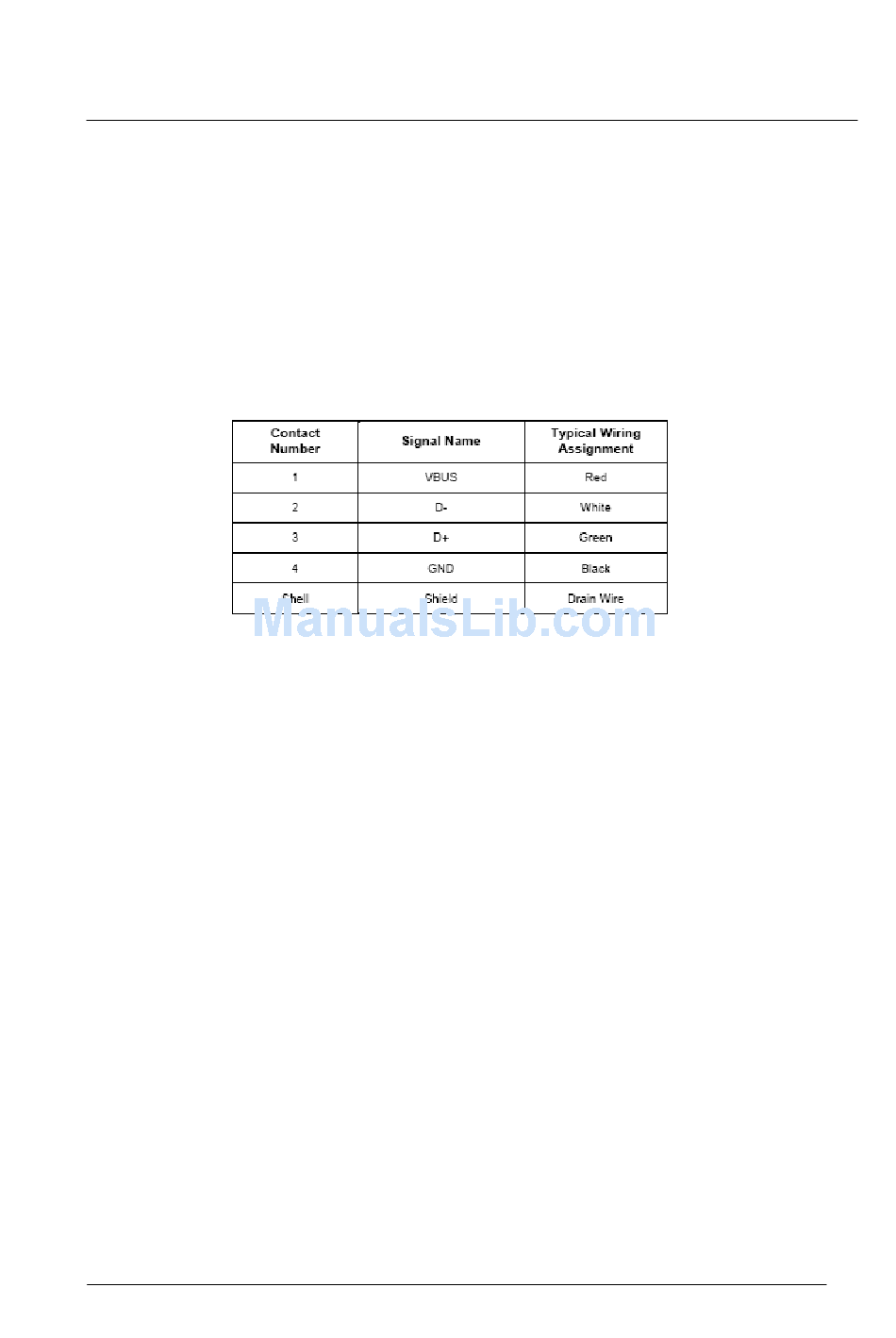

Table 6-1: USB Connector Termination Data

INSTALLATION
34
