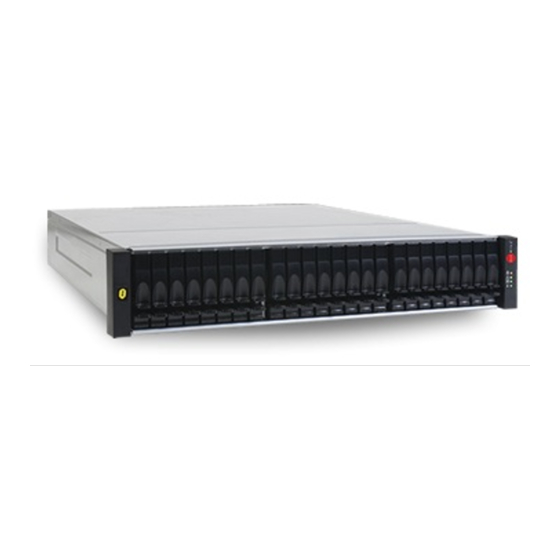

Seagate Dot Hill AssuredSAN 3000 Series Installation And Replacement Manual
  1. Manuals
  2. Brands
  3. Seagate Manuals
  4. Computer Hardware
  5. Dot Hill AssuredSAN 3000 Series
  6. Installation and replacement manual

Seagate Dot Hill AssuredSAN 3000 Series Installation And Replacement Manual

Fru
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AssuredSAN 3000 Series
FRU Installation and Replacement Guide
P/N 83-00004642- 1 6-01
Revision A
March 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dot Hill AssuredSAN 3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Seagate Dot Hill AssuredSAN 3000 Series

Summary of Contents for Seagate Dot Hill AssuredSAN 3000 Series

  • Page 1 AssuredSAN 3000 Series FRU Installation and Replacement Guide P/N 83-00004642- 1 6-01 Revision A March 2012...
  • Page 2 Copyright © 2012 Dot Hill Systems Corp. All rights reserved. Dot Hill Systems Corp., Dot Hill, the Dot Hill logo, AssuredSAN, AssuredSnap, AssuredCopy, AssuredRemote, R/Evolution, and the R/Evolution logo are trademarks of Dot Hill Systems Corp. All other trademarks and registered trademarks are proprietary to their respective owners.

  • Page 3: Table Of Contents

    Contents About this guide ............9 Intended audience .
  • Page 4 Before you begin ............. 46 2U24 Ear bezels .
  • Page 5 Figures 1 Controller enclosure exploded view (standard-depth 2U24) ......16 2 Controller enclosure assembly (standard-depth 2U24) ........16 3 Controller enclosure architecture —...
  • Page 6 Figures...
  • Page 7 Tables 1 Document conventions ............10 2 Individual product models comprising 3000 Series .
  • Page 8 Tables...

  • Page 9: About This Guide

    About this guide This guide identifies 3000 Series FRUs (field-replaceable units), and describes how to remove or install them within the AssuredSAN™ 3000 Series products listed below: Hybrid FC/iSCSI Controller Enclosures: • 3920 • 3930 Fibre Channel Controller Enclosures: • 3723 •...

  • Page 10: Document Conventions And Symbols

    For information about Recommendations for using optional data-protection AssuredSAN 3000 Series Using Data Protection Software features (AssuredSnap, AssuredCopy, AssuredRemote) Using a rackmount bracket kit to install an enclosure AssuredSAN Rackmount Bracket Kit Installation into a rack AssuredSAN 2-Post Rackmount Bracket Kit Installation Product hardware setup and related troubleshooting AssuredSAN 3000 Series Setup Guide Obtaining and installing a license to use licensed...
  • Page 11 NOTE: Provides additional information. TIP: Provides helpful hints and shortcuts. AssuredSAN 3000 Series FRU Installation and Replacement Guide...
  • Page 12 About this guide...

  • Page 13: Frus

    FRUs Available FRUs You can determine which FRUs pertain to your controller enclosure using the Command-line Interface (CLI). Access the controller via a telnet client; log into the controller over the network (default user name manage and password !manage). If the default user or password — or both — have been changed for security reasons, enter the secure login credentials instead of the defaults shown above.

  • Page 14: Frus Addressing 24-Drive Enclosures

    numbers and ordering information. Data addressing 3000 Series 24-drive and 12-drive enclosure products is provided to supplement the illustrated replacement procedures described in Chapter 2 — Procedures. The illustrations following herein show various 2U24 and 2U12 chassis used in 24-drive and 12-drive enclosures, respectively.
  • Page 15 Table 3 3000 Series product components for standard-depth 24-drive enclosures Item Enclosure component descriptions Rail kits (variable options) shown a) Rack mount kit, shelf, short, All HW 22.5" - 31" b) Rack mount kit, shelf, long, All HW 25" - 36" c) Rack mount bracket kit, 2-Post adjustable, All HW Cable kit (Cable package: SAS-8470 to mini-SAS-8088 4 x 0.6m) shown...

  • Page 16: Controller Enclosure Exploded View (Standard-Depth 2U24)

    Figure 1 Controller enclosure exploded view (standard-depth 2U24) The illustration above shows ear covers (item No.2). An enclosure bezel is sometimes used instead of ear covers. See Figure 7 on page 19 for an illustration showing how the bezel aligns for attachment to the front panel of SFF 24-drive models via press-fit onto four mounting ball studs located on chassis ears.

  • Page 17: Controller Enclosure Architecture - Internal Components Sub-Assembly (Standard-Depth 2U24)

    Power supply unit I/O module Disk drive module Dual midplane Figure 3 Controller enclosure architecture — internal components sub-assembly (standard-depth 2U24) Table 4 supplements Table 3 on page 14, showing items specific to the 24-drive reduced-depth chassis. Table 4 3000 Series product components for reduced-depth 24-drive enclosures Item Enclosure component descriptions Disk drive (SFF)

  • Page 18: Controller Enclosure Exploded View (Reduced-Depth 2U24)

    Figure 4 Controller enclosure exploded view (reduced-depth 2U24) Figure 4 (above) and Figures 5 and 6 (below) illustrate reduced-depth 24-drive enclosure models. Figure 5 Controller enclosure assembly (reduced-depth 2U24) FRUs...

  • Page 19: Enclosure Bezel For 24-Drive Models

    Power supply unit I/O module Disk drive module Midplane Figure 6 Controller enclosure architecture — internal components sub-assembly (reduced-depth 2U24) Enclosure bezel for 24-drive models As an alternative to using ear covers, SFF 24-drive enclosures support a bezel sub-assembly that attaches to the front of the chassis (see Figure 7 on page 19).

  • Page 20: Frus Addressing 12-Drive Enclosures

    Figure 8 Controller enclosure assembly with 24-drive enclosure bezel installed FRUs addressing 12-drive enclosures Table 5 3000 Series product components for 12-drive enclosures Item Enclosure component descriptions Disk drive (LFF) a) 3.5" disk drive module (various models of differing storage capacities: SAS, SATA) b) Air management module (disk drive blank to maintain optimum air flow within enclosure) Ear kit a) Left ear assembly (including ear cap)
  • Page 21 Table 5 3000 Series product components for 12-drive enclosures Item Enclosure component descriptions Expansion module (I/O modules and drive (expansion) enclosures are ordered separately) shown a) 3120, 1JM, mini-SAS (SFF-8088) connection [6Gb] 2.5" b) 3130, 1JM, mini-SAS (SFF-8088) connection [6Gb] 3.5" c) 2122, 1JM, mini-SAS (SFF-8088) connection [3Gb] 2.5"...

  • Page 22: Controller Enclosure Exploded View (Standard-Depth 2U12)

    Figure 9 Controller enclosure exploded view (standard-depth 2U12) Figure 9 (above) and Figures 10 through 12 (below) illustrate 12-drive enclosure models. Figure 10 is an assembled view of Figure 9, whereas Figure 1 1 shows a newer 2U12 chassis assembly. Figure 12 shows assembly of component FRUs within the enclosure.

  • Page 23: Controller Enclosure Assembly (Standard-Depth 2U12)

    Figure 1 1 Controller enclosure assembly (standard-depth 2U12) Power supply unit I/O module Disk drive module Midplane Figure 12 Controller enclosure architecture — internal components sub-assembly (standard-depth 2U12) Table 6 supplements Table 5 on page 20, showing items specific to the 12-drive reduced-depth chassis. Table 6 3000 Series product components for reduced-depth 12-drive enclosures Item Enclosure component descriptions...

  • Page 24: Enclosure Bezel For 12-Drive Reduced-Depth Model

    NOTE: The following illustrations visually describe Table 6 components for the reduced-depth chassis: • Exploded view — Figure 13 on page 24 • Assembly (partial) — Figure 14 on page 25 (shows bezel alignment) • Assembly — Figure 15 on page 25 (shows bezel installed) •...

  • Page 25: Partial Controller Enclosure Assembly Showing Bezel Alignment (Reduced-Depth 2U12)

    CAUTION: Whether configured with or without an air filter, to ensure adequate EMI protection for the disk drives, the bezel should be properly installed while the enclosure is in operation. Ball stud on chassis ear (typical 4 places) Enclosure bezel sub-assembly (EMI shield and removable air filter) Figure 14 Partial controller enclosure assembly showing bezel alignment (reduced-depth 2U12) Figure 15 Controller enclosure assembly with bezel installed (reduced-depth 2U12)
  • Page 26 FRUs...

  • Page 27: Procedures

    Procedures This chapter provides procedures for replacing FRUs (field-replaceable units), including precautions, removal instructions, installation instructions, and verification of successful installation. Each procedure addresses a specific task. Certain procedures refer to related documentation. See Related documentation on page 9 for a list of these documents and where to find them online. Electrostatic discharge Before you begin any of the procedures, consider the following precautions and preventive measures.

  • Page 28: Replacing Chassis Fru Components

    Replacing chassis FRU components Chassis FRUs replace a damaged chassis or chassis components. A fully functional chassis requires successful installation of the following components: • One or two controller modules of the same model (for a given controller enclosure) Replacing a controller module or expansion module on page 29 for more information.

  • Page 29: Replacing A Controller Module Or Expansion Module

    Replacing a controller module or expansion module IMPORTANT: The replacement controller is pre-loaded with TS200 or later firmware. This requires that a second controller — in a dual-controller configuration — be upgraded to the same code version in order to operate properly.

  • Page 30: Configuring Partner Firmware Update

    CAUTION: When replacing a controller module, ensure that less than 10 seconds elapse between inserting it into a slot and fully latching it in place. Failing to do so might cause the controller to fail. If it is not latched within 10 seconds, remove the controller module from the slot, and repeat the process. Configuring partner firmware update In a dual-controller system in which Partner Firmware Update (PFU) is enabled, when you update firmware on one controller, the system automatically updates the partner controller.

  • Page 31: Stopping I/O

    Stopping I/O When troubleshooting drive and connectivity faults, ensure you have a current full backup. As an additional data protection precaution, stop all I/O to the affected vdisks. IMPORTANT: Stopping I/O to a vdisk is a host-side task, and falls outside the scope of this document. When on-site, you can verify that there is no I/O activity by briefly monitoring the system LEDs;...

  • Page 32: Using The Cli

    NOTE: See AssuredSAN 3000 Series RAIDar User Guide for additional information. Using the CLI 1. Log-in to the CLI using default user manage and password !manage. If the default user or password — or both — have been changed for security reasons, enter the secure login credentials instead of the system defaults shown above.

  • Page 33: Removing A Controller Module

    A C T L IN K H O S C L I C L I Figure 17 Disengaging a controller module 5. Press both latches downward to disconnect the controller module from the midplane (see Figure 18). A C T L IN K H O S C L I...

  • Page 34: Installing A Controller Module Or Expansion Module

    Installing a controller module or expansion module TIP: You can install a controller module into an enclosure that is powered on, provided you wait 60 seconds after removing the old controller module. Check controller and midplane power connectors before inserting the new controller module into the enclosure. See CAUTION bullets regarding “electrostatic discharge”...

  • Page 35: Using The Cli

    2. In the Configuration View panel, right-click the system and select Tools > Shut Down or Restart Controller. 3. In the main panel, set the options: • Select the Restart operation. • Select whether to restart the processor in controller A, B, or both. 4.

  • Page 36: Replacing A Disk Drive Module

    You can update firmware using RAIDar or using FTP (File Transfer Protocol). See the AssuredSAN 3000 Series RAIDar User Guide for more information. Replacing a disk drive module A disk drive module consists of a disk in a sled. Disk drive modules are hot-swappable, which means they can be replaced without halting I/O to the vdisks, or powering off the enclosure.
  • Page 37 a. SFF disk — Squeeze the latch release flanges together to disengage the disk drive module. b. LFF disk (standard-depth enclosure) — Squeeze the latch release flanges inward to disengage the disk drive module. c. LFF disk (reduced-depth enclosure) — Slide the release latch to the left to disengage the disk drive module.

  • Page 38: Installing A Disk Drive Module

    Extract LFF disk or blank Extract SFF disk or blank (standard-depth enclosure) Eject and extract LFF disk or blank (reduced-depth enclosure) The enclosure bezel is removed in the illustration at left to show disks. Figure 22 Removing a disk drive module or blank Installing a disk drive module 1.

  • Page 39: Installing A Disk Drive Module Or Blank

    Insert SFF disk or blank Insert LFF disk or blank (standard-depth enclosure) Insert LFF disk or blank (reduced-depth enclosure) The enclosure bezel is removed in the illustration at left to show disks. Figure 23 Installing a disk drive module or blank 3.

  • Page 40: Determine If A Disk Is Missing

    Using the CLI: 6. Log in to the CLI (use default user manage and password !manage, or the appropriate username and password if they have been changed). 7. To view information about disks, run the following command: show disks <disk-ID> Disks are specified by enclosure ID and slot number.

  • Page 41: Before You Begin

    When replacing a power supply FRU, you might accidentally disconnect cables, causing disks to go offline. As a precaution — before installing or replacing a FRU — you should stop I/O to all vdisks. If stopping I/O is not possible, the next best action is to defer FRU replacement until such time as it is possible to stop all I/O.

  • Page 42: Power Supply Units

    Power supply units IMPORTANT: Newer AC power supply units do not have power switches. These PSUs power on when connected to a power source, and power off when disconnected. Power cycling procedures vary according to the type of power supply included within the enclosure. For controller and expansion enclosures configured with AC PSUs that do not have power switches, refer to the procedure described under AC PSU...

  • Page 43: Dc And Ac Psus With Power Switch

    DC and AC PSUs with power switch DC and legacy AC power supplies — each equipped with a power switch — are shown below. Power switch Power switch Power cord Power connect cable connect DC power supply unit Legacy AC power supply unit Figure 25 DC and AC PSUs with power switch Powering off the PSU 1.

  • Page 44: Installing A Power Supply Unit

    Controller or drive enclosure Power supply unit (PSU) (switchless AC model) Revolved latch Thumbscrew Power supply unit (installed position) Figure 26 Removing a power supply unit 6. Use the latch to pull the module straight out of the chassis. 7. If replacing two power supply modules, repeat step 3 through step 6. CAUTION: Do not lift the module by its latch;...

  • Page 45: Connecting A Power Cable

    To install a power supply module, perform the following steps: 1. Orient the PSU with the AC or DC connector toward the right as shown in Figure 26 on page 44 and Figure 27 on page 44, respectively. 2. With the latch in the open position, slide the module into the appropriate power supply slot as far as it will go.

  • Page 46: Verifying Component Operation

    a. Connect a DC power cable to each DC power supply using the D-shell connector. Use the UP> arrow on the connector shell to ensure proper positioning (see adjacent left side view of D-shell connector). b. Tighten the screws at the top and bottom of the shell, applying a torque between 1.7 N-m (15 in-lb) and 2.3 N-m (20 in-lb), to securely attach the cable to the DC PSU.

  • Page 47: 2U12 Ear Bezels

    Left ear Right ear (disk drives shown) (chassis shown) Figure 29 Replacing ear bezels — 2U24 models 2U12 Ear bezels Figure 30, and Figure 31 on page 47 illustrate ear bezel replacement relative to 2U12 models. See Removing ear bezel components on page 48, and Installing ear bezel components on page 48.

  • Page 48: Removing Ear Bezel Components

    Removing ear bezel components Figure 29 on page 47, Figure 30 on page 47, and Figure 31 when removing the ear bezel sub-assemblies. 1. Stop all I/O from hosts to the system. 2. Use management software to shut down any other components necessary. 3.

  • Page 49: Replacing A Fibre Channel Transceiver

    Replacing a Fibre Channel transceiver This section provides steps for replacing a small form-factor pluggable (SFP transceiver) connector used in a Fibre Channel (FC) controller host port. An example SFP connector is shown below. Figure 32 Sample SFP connector Before you begin CAUTION: Mishandling fibre-optic cables can degrade performance.

  • Page 50: Installing An Sfp Module

    Fibre-optic cable attached to SFP Fibre-optic cable disconnected Figure 33 Disconnect fibre-optic interface cable from SFP 2. SFPs are commonly held in place by a small wire bail actuator. Flip the actuator up. Flip actuator/revolve upwards Figure 34 Flip SFP actuator upwards 3.

  • Page 51: Verifying Component Operation

    Connect fibre-optic cable to SFP Fibre-optic cable attached to SFP Figure 36 Connect fibre-optic interface cable to SFP Verifying component operation View the Link Status and Link Activity LEDs on the controller module face plate. A blinking LED indicates that no link is detected. Also check the link status and link activity LEDs on the host. Replacing a 10GbE SFP+ transceiver This section provides steps for removing and replacing a small form-factor pluggable plus (SFP+ transceiver) connector used in an Internet SCSI (iSCSI) controller host port.

  • Page 52: Before You Begin

    Whether your controller enclosure product is a 2U24 or 2U12 model, a fully functional replacement chassis requires the successful removal and installation of the following components: • All disk drive modules and air management modules • Two ear bezels (for left and right ears) Some models use an enclosure bezel instead of left and right ear covers •...
  • Page 53 Table 10 Removing and replacing a controller enclosure chassis and its FRUs To accomplish this sequential process See the following procedures 1. Remove disk drive modules and air management Air management modules on page 36. modules from the damaged chassis. Before you begin on page 36.

  • Page 54: Removing A Damaged Storage Enclosure Chassis From The Rack

    Removing a damaged storage enclosure chassis from the rack This section provides a procedure for removing a damaged controller enclosure chassis from its rack location. CAUTION: It is recommended that all disk drive modules and air management modules be removed before removing the enclosure.

  • Page 55: Verifying Component Operation

    NOTE: For powering-on AC PSUs with or without a power switch, and DC and AC PSUs with a power switch, see Power supply units on page 42. Verifying component operation Restart system devices in the following sequence. Allow time for each device to complete its Power On Self Tests (POST) before proceeding: 1.
  • Page 56 Procedures...

  • Page 57: Index

    Index Numerics 4-port FC-iSCSI 4-port SAS 2U12 IOM blank 3330 1Gb iSCSI conventions 3430 10GbE iSCSI document 3530 SAS 3533 SAS 3730 FC disk drives 3733 FC air management modules 3930 FC-iSCSI 2U24 3320 1Gb iSCSI document 3420 10GbE iSCSI conventions 3520 SAS prerequisite knowledge...
  • Page 58 P/N tables small form-factor pluggable SFP+ transceiver 10GbE iSCSI controller host port small form-factor pluggable plus host interface protocols iSCSI hosts stopping I/O LEDs controller module disk drive module enclosure rear panel enclosure status front panel power supply unit (PSU) partner firmware update (PFU) power supply unit (PSU) AC model compatibility...
