Spinpoint M8U-Internal Product Manual REV 3.4

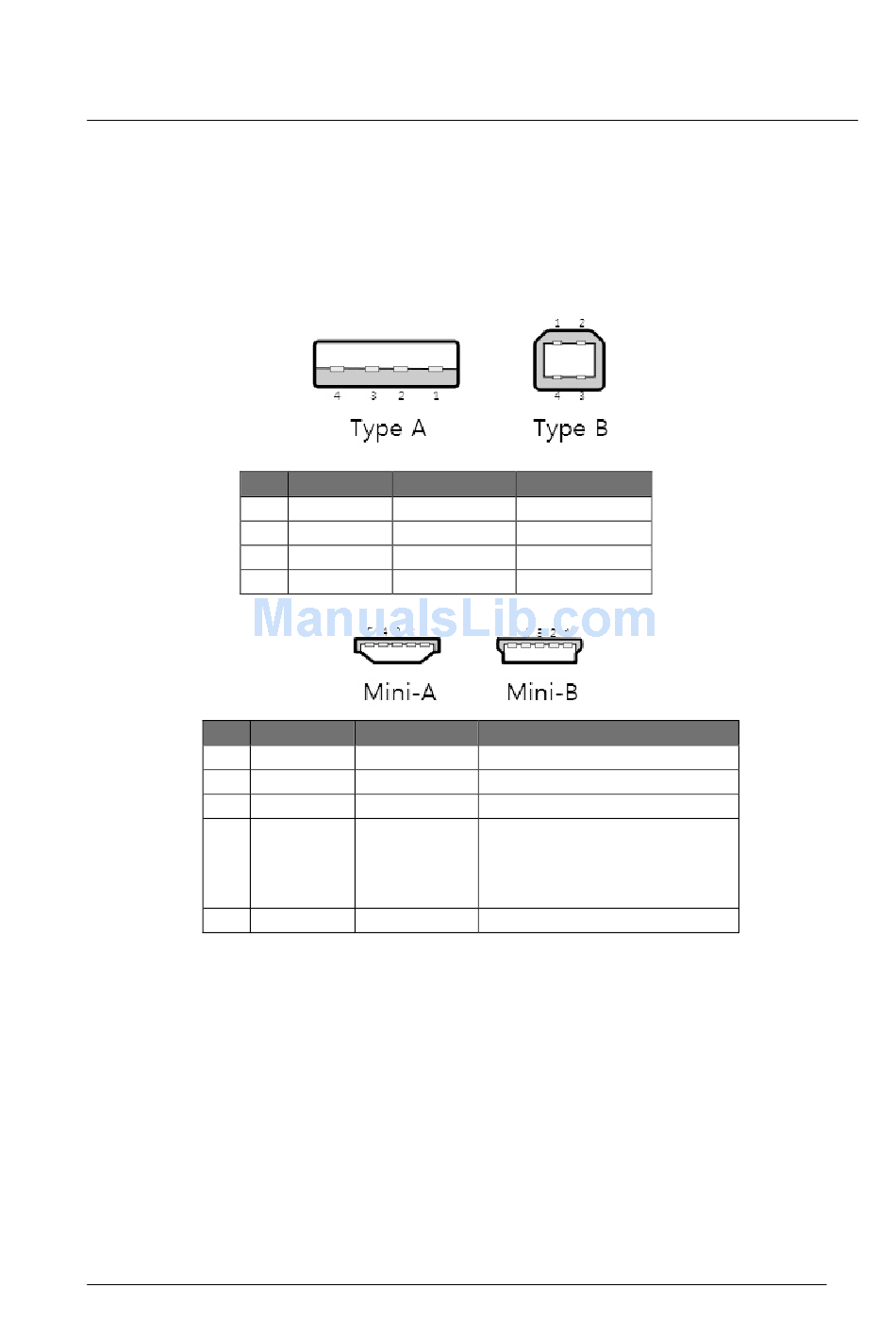

Table 4-1 lists the signals connection on the USB interface.
Table 4-1 USB Connector Pin Definitions
Name
Cable color
VCC
D-
White
D+
Green
GND
Black
Name
Cable color
VCC
Red
D-
White
D+
Green
ID
none
GND
Black
Definition
Red
+5V
Data -
Data +
Ground
Definition
+5V
Data -
Data +
Permits distinction of
Micro-A and Micro-B plug
Type A : connected to ground
type B : not connected
Signal Ground
