INSTALLATION
6.2.1.2.2

Series "A" and Series "B" Receptacles

Electrical and mechanical interface configuration data for Series "A" and Series "B" receptacles are shown
in Figure 6-3 and Figure 6-4.

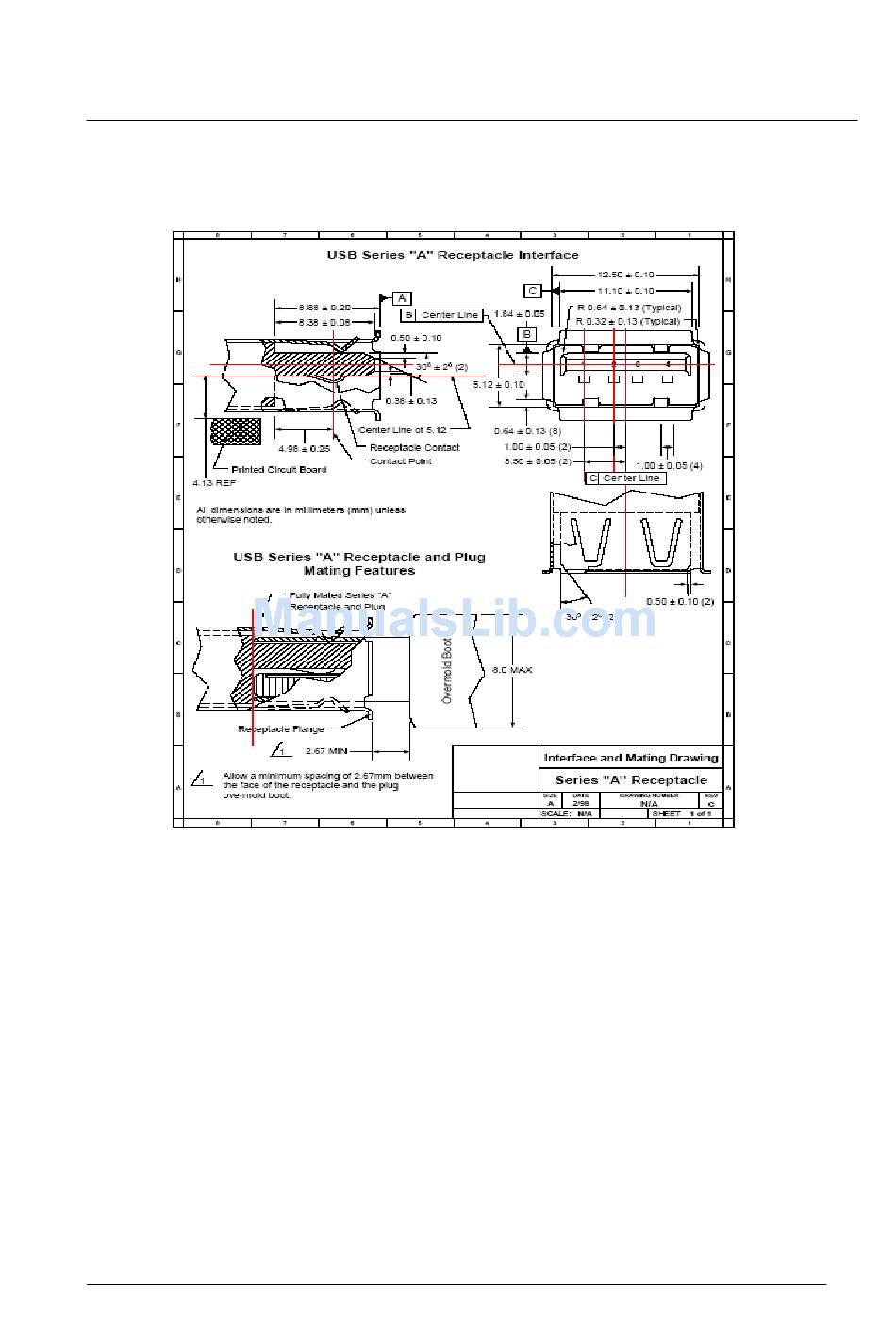

Figure 6-3: USB Series "A" Receptacle Interface

Spinpoint M8U-Internal Product Manual REV 3.4
35
