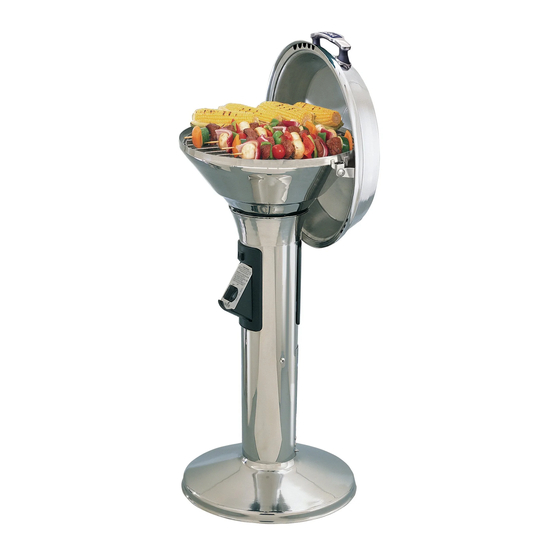

- Page 1 W N E R ’ S A N U A L Care and Use Guide for Del Mar Natural Gas BBQ Grill Model DM10-016NG © Magma Products, Inc. 2003 6/03...
-
Page 2: Important Safety Warnings
IMPORTANT SAFETY WARNINGS PLEASE READ THE FOLLOWING BEFORE OPERATION FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, immediately call your gas supplier or your fire department. - Page 3 ➤ Always place your Del Mar secure base. A patio slab or substantial deck is recommended. ➤ Do not obstruct the flow of combustion and ventilation air. ➤ This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles or boats.
- Page 4 Magma ® Del Mar Series Barbeque Grill. We have used the finest materials in its construction and with only minimal care, the BBQ and its components will give you many years of dependable service. Please take time to read...
- Page 5 Stainless steel grill grate 16” diameter, 201 sq. inches (Inside) Stainless steel Radiant Burner Plate and Dome System permits use of the Del Mar as a BBQ, a stove, or as an oven (Inside) Stainless steel burner “Hideaway” control panel One knob design with dependable integrated Piezo igniter...
-
Page 6: Removing Packing Materials
REMOVING PACKING MATERIALS 1. Remove the grill 2. Take out the grate by depressing the grate at the tabs and turning the grate clockwise until it is free of the 3. Remove the radiant holding clips. PEELING PROTECTIVE COVER OFF OF HANDLE 1. - Page 7 1.Visually inspect all 4. Using a flashlight if necessary, hoses prior to each use of th grill. 2. Remove the inspection panel 5. If either hose shows excessive located on the rear of column near the top by rotating the locking mechanism.
-
Page 8: Inspection For Spiders
Spiders, Earwigs, and other insects find the venturi tube and burner of barbeques to be ideal nest building areas. Webs, or the insects themselves, can block the flow of gas, which may cause flashback (a fire in the venturi tube). Always inspect these areas prior to operation of the grill. Inspection Procedure: 1. -
Page 9: Leak Test
• Do not use an open flame to check for leaks. • Do not remove valve orifices. • Do not smoke during testing. • Do not test indoors. Always test outdoors in a well-ventilated area. • Test for leaks each time the propane canister is replaced. •... - Page 10 OPERATION OF THE ”HIDEAWAY” CONTROL PANEL 1. Depress the release button. 2. This will open the “hideaway” control panel. Note: Since the speed at which the control panel opens is, in part, regulated by the gas hoses, the panel will open more quickly in hot weather, and more slowly in cold...
-
Page 11: Lighting Instructions
Igniter Lighting Your Del Mar Grill is equipped with a Piezo crystal ignition that is activated through the valve control knob. For proper operation, the igniter/electrode should be clean and free from debris. Regular inspection and cleaning is recommended, (see“Maintaining you Grill”). 1. -
Page 12: Operation
Your Magma Del Mar gas grill is equipped with adjustable nylon deck pads. These leveling devices can be used to correct small inconsistencies in you balcony, terrace, deck, or patio to insure a level grill. - Page 13 USING THE DEL MAR AS A STOVE The unique design of the Del Mar allows it to be used as a conventional stove in your outdoor setting. This permits you to fry, saute, boil, wok, etc. • Remove the grill grate. • Remove the radiant dome •...
-
Page 14: A Word About Stainless Steel
Rinse with fresh water and wipe the stainless dry when finished. We also recommend that between uses, you cover the grill (Optional acrylic dyed custom covers are available through your retailer or directly from Magma). Interior Stainless Steel Components: Interior stainless steel components (firepan, radiant plate and dome, and burner) are subject to high temperatures, grease and food residue. -
Page 15: Troubleshooting Guide
Problem Burner will not light with igniter Burner will not light even with match Flame goes out Flare-up Yellow sooty flame TROUBLE SHOOTING GUIDE Possible Cause Igniter electrode covered with grease or residue Igniter/electrode wire loose or disconnected Wire is shorted causing spark from wire before electrode No spark being generated Electrode protection cap is not... -
Page 16: Expanded View
EXPANDED VIEW 11-001 11-002 11-017 10-453 10-165 11-004 11-005 11-006 11-010 11-007 11-015 11-016 11-011NG (complete) Gray parts 11-014 11-003 10-166 11-008 11-012 11-011A 11-013 11-009 11-018... - Page 17 DEL MAR BY MAGMA Manufacturer Model Name Model Number Fuel Fuel Supply Fuel Burn Time Construction Materials Exterior Interior Grill Surface Area Grill Material Number of Burners Grill Burner BTU Burner Material Burner Valve Material Ignition System Handle Material Bowl...
- Page 18 100% All 18-8 Stainless Steel Wok Fish & Veggie Grill Tray Stainless Steel Finish or Teflon Select Non-Stick Finish OTHER MAGMA ACCESSORIES Gourmet 9 Piece Nestable Cookware Stainless Steel with DuPont Teflon Select Non-Stick Finish “Nest” in less than 1/2 cubic foot...
-
Page 19: Quick Reference Chart
Type of Cut of Size of Meat Meat Steak 1” - 1-1/2” Beef Roast 2 -3 Lbs. Hamburger 3/4” - 1” Steak/Fillet 3/4” - 1” Fish Whole Chops/Steaks 1” - 1-1/2” Pork Ham Steaks 3/4” - 1” (Pre-Cooked) Spare Ribs 3 Lbs. -
Page 20: Limited Warranty
MAGMA and the Magma logo are registered trademarks of Magma Products, Inc. Del Mar is a registered trademark of Magma Products, Inc. This product is protected for Magma Products, Inc. under one or more of these U.S. patents: 5,413,090; D438,750; 292,163; other patents pending. This product is further protected for Magma Products, Inc.
