For Models: A10-205 • A10-215
For questions regarding performance, assembly, operation, parts, or returns,
contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m.
Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com
Read these instructions carefully before use. Familiarize yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.

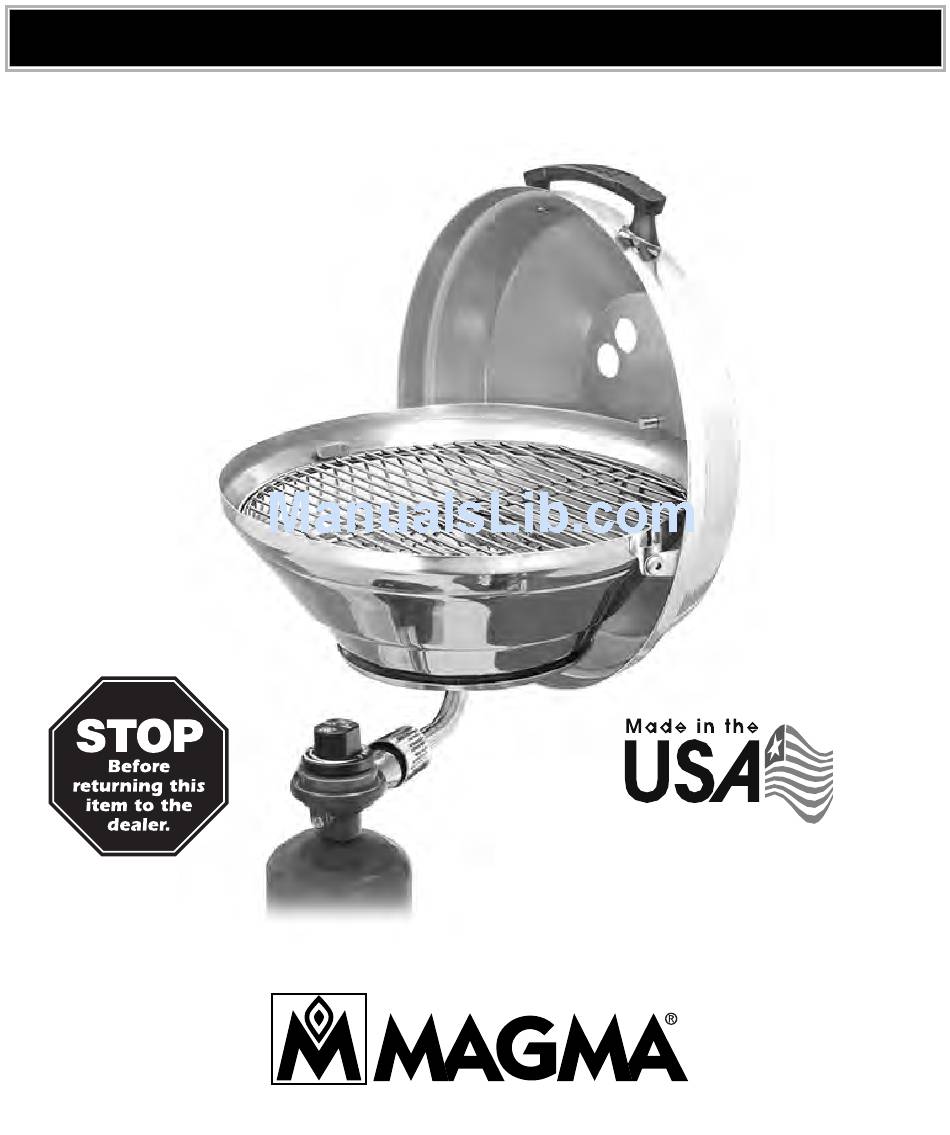

OWNER'S MANUAL

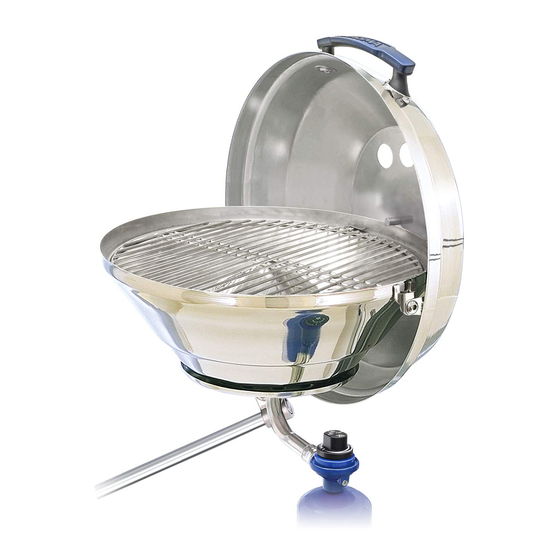

Stainless Steel Gas Grill
U.S. PATENTS
4,788,962
5,330,154
5,413,090
D 292,163
Other Patents and
Design Patents Pending
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magma A10-205
Summary of Contents for Magma A10-205
- Page 1 Design Patents Pending For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com Read these instructions carefully before use. Familiarize yourself with the appliance before...
-
Page 2: Important Safety Warnings
• USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE AMERICAN BOAT AND YACHT COUNCIL (ABYC) STANDARDS A-1 (9), MARINE LIQUIFIED PETROLEUM GAS (LPG) SYSTEMS. • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN. - Page 3 Flat Surface 1 Select and install appropriate Magma mount in your desired location. Prior to installing the grill, check that mount does not easily move with a reasonable force applied. 2 Next, decide if gas control valve will be easier to access from the center right side or center left side of grill.
- Page 4 Grease Tray Pins Grease Threaded Tray Burner Pipe 5 With grill body tightly attached to L-Bracket, unthread burner 3 full revolutions only. CAUTION: DO NOT UNTHREAD MORE THEN 3 REVOLUTIONS, AS GRILL MAY FALL OVERBOARD. • Lift entire grill up to disengage from grease tray positioning pins (5a & 5b) and rotate so lid operates freely in desired position (5a).
- Page 5 Lock USING GRILL WITH ON-BOARD LPG (PROPANE) SYSTEMS • Magma On-Board LPG (Propane) Valves and Lpg (Propane) Low Pressure Gas Grill Connection Kits allow Magma Grills to be installed within a boats existing on-board, pre-regulated low pressure LPG (Propane) system.
-
Page 6: Operating Procedures
• DO NOT CONNECT A HIGH-PRESSURE SUPPLY HOSE FROM A NON-REGULATED TANK DIRECTLY TO GRILL. Magma's grills are designed for use with small disposable propane canisters or with pre-regulated low-pressure propane and optional low-pressure valves. Running high-pressure propane fuel supply lines on a boat is in violation of American Boat &... -
Page 7: Maintenance
All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice. -
Page 8: Replacement Parts
REPLACEMENT PARTS A10-215 A10-205 Party Size Original Size 10-353 10-253 Cooking Grill Cooking Grill 10-466 10-467 Radiant Plate Radiant Plate 10-657 10-657 Burner Burner 10-258 10-258 Flame Deflector Flame Deflector 10-751 10-751 Complete Handle Complete Handle Assembly & Fasteners Assembly & Fasteners... -
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Burner will not No gas flow Check fuel level, replace canister or refill light cylinder Obstructed gas flow Clean burner, turbo venturi tube, and valve orifice. Remove debris/spider webs Flare-up Excessive cooking temperature Operate only on low when lid is closed Reduce flame level Leave lid open... -
Page 10: Limited Warranty
Discoloration or Corrosion caused by exposure to excessive heat or failure to properly clean and care for the stainless steel surfaces. If the product fails to operate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option. If you wish to obtain performance under this limited warranty, you should contact Magma's Customer Service Department via telephone at (562) 627-0500, or via e-mail at mail@MagmaProducts.com, or via U.S.
