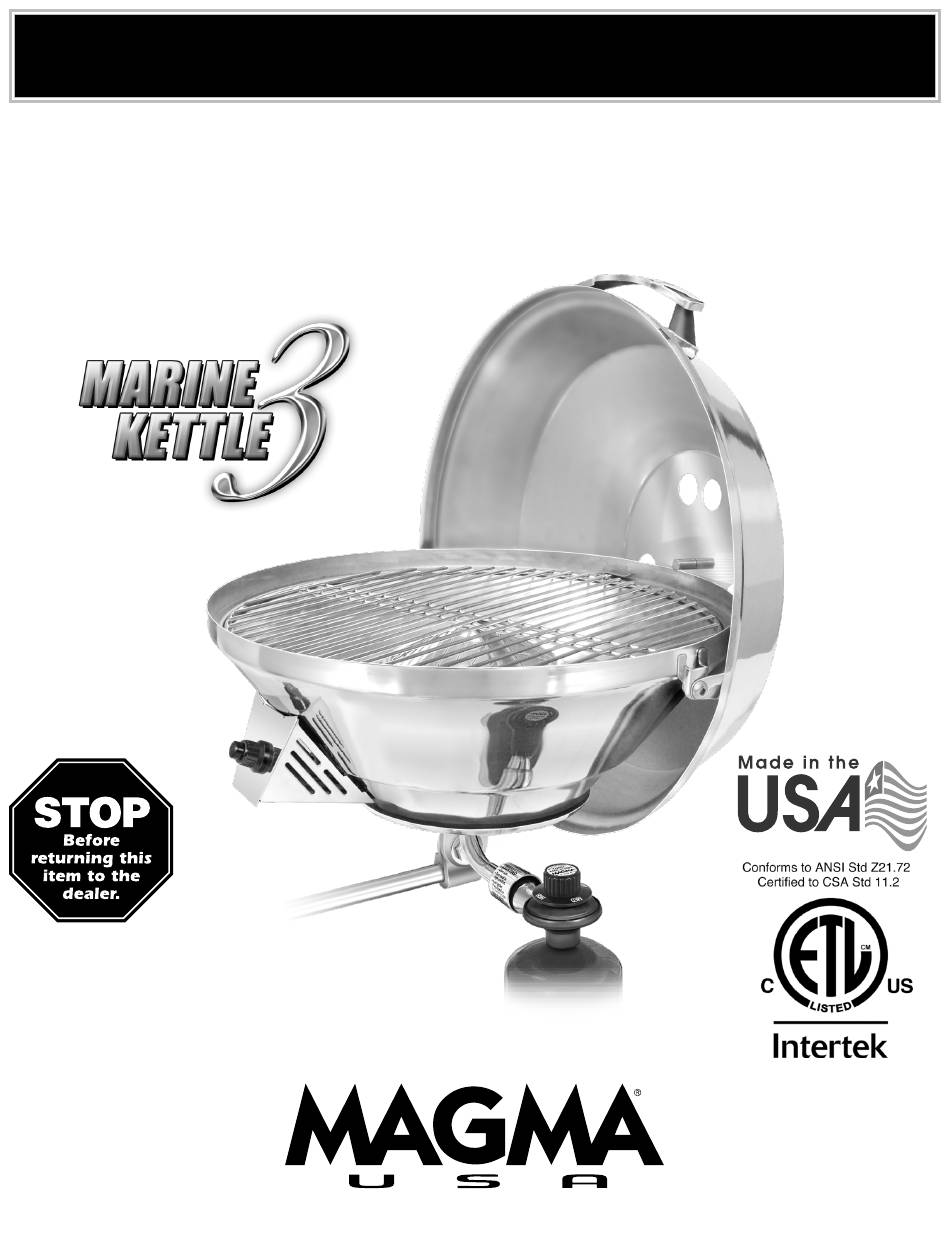

OWNER'S MANUAL
MARINE KETTLE 3
GAS GRILL
®
A10-207-3 • A10-217-3 • A10-207-3-CSA • A10-217-3-CSA
A10-207-3-CE-2 • A10-217-3-CE-2
®
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts at
MAGMA by calling (562) 627-0500
7:00 a.m. — 5:00 p.m. Pacific Time Monday thru Friday
or e-mail us at mail@MagmaProducts.com.
IMPORTANT, Read These Instructions Carefully Before Use. Familiarize Yourself With the Appliance
Before Connecting It to Its Gas Container. Keep These Instructions for Future Reference.
Advertisement
Related Manuals for Magma MARINE KETTLE 3
Summary of Contents for Magma MARINE KETTLE 3
- Page 1 ® For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. — 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com. IMPORTANT, Read These Instructions Carefully Before Use. Familiarize Yourself With the Appliance...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 • USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE AMERICAN BOAT AND YACHT COUNCIL (ABYC) STANDARDS A-1 (9), MARINE LIQUIFIED PETROLEUM GAS (LPG) SYSTEMS. • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN.
- Page 4 IMPORTANT SAFETY WARNINGS FOR CE-2 GRILL MODELS READ ALL INSTRUCTIONS BEFORE OPERATING. • USE OUTDOORS ONLY. • DO NOT USE THIS APPLIANCE INSIDE THE BOAT OR ANY ENCLOSED SPACE. • GRILL RADIATES HEAT, CLEARANCE FROM COMBUSTIBLES, 24" (61 CM) SIDE AND BACK, NEVER USE UNDER AWNINGS, PATIO COVERS, ETC.
- Page 5 Flat Surface 1. Select and install appropriate Magma mount in your desired location. Prior to installing the grill, check that mount does not easily move with a reasonable force applied. 2. Next, decide if gas control valve will be easier to access from the center right side or center left side of grill.
- Page 6 SETTING UP YOUR GRILL Grease Tray Pins Threaded Grease Tray Burner Pipe 5. With grill body tightly attached to L-Bracket and taking care not to damage electrode, unthread burner 3 full revolutions only. CAUTION: DO NOT UNTHREAD MORE THEN 3 REVOLUTIONS, AS GRILL MAY FALL OVERBOARD. •...
- Page 7 CONNECTING FUEL SOURCE US & CSA — CONTROL VALVE REGULATOR A10-207-3 • A10-217-3 Lock Indicator • Uses standard 1-lb. disposable propane canisters (DOT-39 NRC). • Prior to installing valve, become familiar with the valve function and graphics on valve knob. Never force the knob. Always turn or push gently.
- Page 8 See our Valve Application Guide at MagmaProducts.com for correct valve. • In North America, use Magma A10-225 LPG 10' Gas Grill Connection Kit in conjunction with Type 3 Valve. Outside North America check your local dealer for proper hose and fittings.
- Page 9 OPERATING PROCEDURES WARNING: Do not overheat grill. Magma grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open.
- Page 10 CONTROL VALVE All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice.
- Page 11 REPLACEMENT PARTS A10-207-3, A10-207-3-CSA — “Original” Size A10-207-3-CE-2 — “Original” Size A10-217-3, A10-217-3-CSA — “Party” Size A10-217-3-CE-2 — “Party” Size Cooking Grill Radiant Plate Burner Fire Pan Complete Handle Assembly & Fasteners Lid w/hinge & fasteners (no handle) Bowl Electronic Pulse Igniter Igniter Case Grease Tray...
- Page 12 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Electrode covered with • Clean electrode grease or residue Electrode wire loose, • Clean, adjust & reconnect wire between igniter & disconnected, or corroded electrode, (See “Complete Disassembly”, Page 10) Wire is shorted causing spark BURNER WILL NOT LIGHT •...
- Page 13 Sets with Stainless Steel or Ceramica Non-Stick Interiors ® 1/2 cubic foot Grill Cover/Tote Bag Stainless Steel, Cobalt Blue, Jet Black, or Magma Red Enamel Original & Party Size exteriors and Induction compatible models available. Luggage Quality Padded LED Grill Light “Telescoping”...
- Page 14 Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither Magma dealers, nor the retail establishment selling this product has any authority to make any warranties or to promise remedies in addition to or inconsistent with those stated above.
- Page 15 ADDENDUM FOR GAS GRILL MODELS A10-207-3AU-1, A10-217-3AU-1 SOLD IN AUSTRALIA CAUTION: Accessible parts may be very hot. Keep young children away. ONLY USE IN WELL-VENTILATED AREAS. • CARBON MONOXIDE HAZARD-THIS APPLIANCE CAN PRODUCE CARBON MONOXIDE WHICH HAS NO ODOUR. DO NOT USE IN ENCLOSED AREAS, (FOR EXAMPLE: CAR, TENT, CARAVAN, MOBILE HOME) MAY CAUSE DEATH.
- Page 16 CYLINDERS: If there is a leak on your appliance (smell of gas), immediately attempt to turn off cylinder valve. Turn off appliance control valve. Remove appliance to a well-ventilated location away from any ignition source. STORAGE: NEVER LEAVE GAS CYLINDERS CONNECTED WHEN NOT IN USE! CYLINDERS: When you have finished using this appliance, turn gas cylinder off;...
