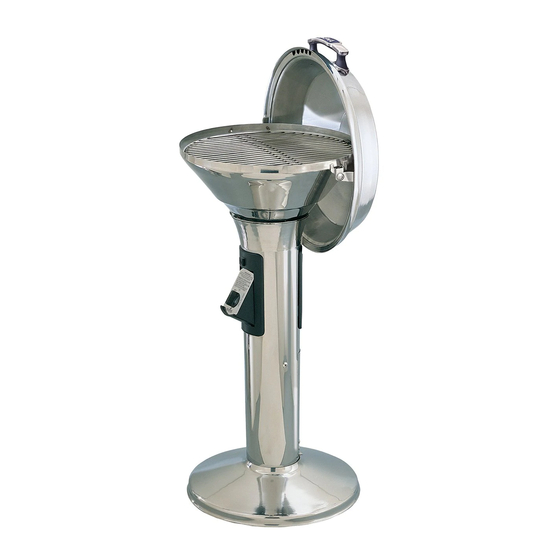

Natural gas grill
Hide thumbs Also See for Delmar DM10-016NG:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delmar DM10-016NG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Magma Delmar DM10-016NG

  • Page 2: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS PLEASE READ THE FOLLOWING BEFORE OPERATION OF YOUR DEL MAR BBQ GRILL. ™ FOR YOUR SAFETY AVERTISSEMENT S’il y a une odeur de gaz: If you smell gas: 1. Coupez l’admission de gaz de 1. Shut off gas to the appliance. l’appariel.
  • Page 3 Each Magma® Del Mar ™ Gas Grill is individually fire tested before it leaves the factory. For this reason, the burner on your BBQ may be slightly discolored.
  • Page 5 FEATURES Stainless steel grill grate Stainless steel 16” diameter, double lined lid 201 sq. inches (Inside) Stainless steel Radiant Burner Plate “Easy Lift” and Dome System hinged lid permits use of the Del Mar as a BBQ, a stove, or as an oven Double lined Stainless steel Bowl-design to...
  • Page 6: Removing Packing Materials

    REMOVING PACKING MATERIALS 1. Remove the grill 2. Take out the 4. Place the radiant 5. Replace the grill grate by depressing cardboard packaging plate and dome grate ensuring the grate at the tabs that includes the in to the fire pan that the tabs are and turning the radiant plate and...
  • Page 7 INSPECTION OF HOSES 1.Visually inspect all 4. Using a flashlight if necessary, 6. Open the access panel at the hoses prior to each inspect the gas delivery hose, bottom rear of the column. use of th grill. and the upper end of the gas 7.
  • Page 8: Inspection For Spiders

    INSPECTION FOR SPIDERS Spiders, Earwigs, and other insects find the venturi tube and burner of barbeques to be ideal nest building areas. Webs, or the insects themselves, can block the flow of gas, which may cause flash- back (a fire in the venturi tube). Always inspect these areas prior to operation of the grill. Inspection Procedure: Igniter Electrode 1.
  • Page 9: Leak Test

    LEAK TEST • Do not use an open flame to check for leaks. • Do not remove valve orifices. • Do not smoke during testing. • Do not test indoors. Always test outdoors in a well-ventilated area. • Test for leaks each time the propane canister is replaced. •...
  • Page 10 OPERATION OF THE ”HIDEAWAY” CONTROL PANEL 1. Depress the 2. This will open the 3. Control panel will only close if release button. “hideaway” control the knob is in the “off” position. panel. Note: Since Never force the control panel the speed at which closed.
  • Page 11: Igniter Lighting

    LIGHTING INSTRUCTIONS Igniter Lighting Your Del Mar Grill is equipped with a Piezo crystal ignition that is activated through the valve control knob. For proper operation, the igniter/electrode should be clean and free from debris. Regular inspection and cleaning is recommended, (see“Maintaining you Grill”). 6.
  • Page 12: Operation

    LEVELING THE GRILL Your Magma Del Mar gas grill is equipped with adjustable nylon deck pads. These leveling devices can be used to correct small inconsistencies in you balcony, terrace, deck, or patio to insure a level grill.
  • Page 13 USING THE DEL MAR AS A STOVE The unique design of the Del Mar allows it to be used as a conventional stove in your outdoor setting. This permits you to fry, saute, boil, wok, etc. • Remove the grill grate. • Remove the radiant dome •...
  • Page 14: A Word About Stainless Steel

    Rinse with fresh water and wipe the stainless dry when finished. We also recommend that between uses, you cover the grill (Optional acrylic dyed custom covers are available through your retailer or directly from Magma). Interior Stainless Steel Components: Interior stainless steel components (firepan, radiant plate and dome, and burner) are subject to high temperatures, grease and food residue.
  • Page 15: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Burner will not light Igniter electrode covered with Clean igniter electrode with igniter grease or residue Igniter/electrode wire loose or Check connection and reconnect disconnected Wire is shorted causing spark Replace igniter wire from wire before electrode No spark being generated Replace valve assembly...
  • Page 16: Expanded View

    EXPANDED VIEW 11-001 Handle & Outer Lid Assembly 11-002 “Magma” Name Plate w/ Adhesive 11-003 11-017 Internal Fire Lid Handle with Mounting Hardware 10-453 Cooking Grill 10-765 Radiant Plate & Dome 10-657 Burner with Igniter Strap 11-009 11-018 Long Pivot Pin...
  • Page 17: Additional Features

    DEL MAR BY MAGMA Manufacturer Magma Products, Inc. Model Name Del Mar Model Number DM10-016NG Fuel Natural Gas Fuel Supply Residential Natural Gas Supply Fuel Burn Time Unlimited Construction Materials Exterior 100% Mirror Polished 18-9 Stainless Steel Interior 100% 18-8 Stainless Steel Grill Surface Area 16"...
  • Page 18 Stainless Steel Wok Fish & Veggie Grill Tray Stainless Steel Finish or Stainless Steel with DuPont ® Teflon Select Non-Stick Finish ® OTHER MAGMA ACCESSORIES Gourmet 9 Piece “Nesting” Cookware Stainless Steel with DuPont ® Teflon ® Select Non-Stick Finish...
  • Page 19: Quick Reference Chart

    QUICK REFERENCE CHART * Approximate Cooking Times and Temperatures Approximate Cooking Times (Total) and Meat Temperatures Type of Cut of Size of Recomm. Meat Meat Fire Temp. Rare Medium Well Done Comments Steak 1” - 1-1/2” Med - Hot 10-12 Min/140º 12-14 Min/160º...
