O
W N E R ' S
For questions regarding
performance, assembly,
operation, parts, or
returns, contact the
experts at MAGMA by
calling TOLL FREE IN
U.S.A. AND CANADA
1-800-86-MAGMA
7:00 a.m. - 5:00 p.m.
Pacific Time Monday thru
Friday or e-mail us at
mail@MagmaProducts.com
M
A N U A L

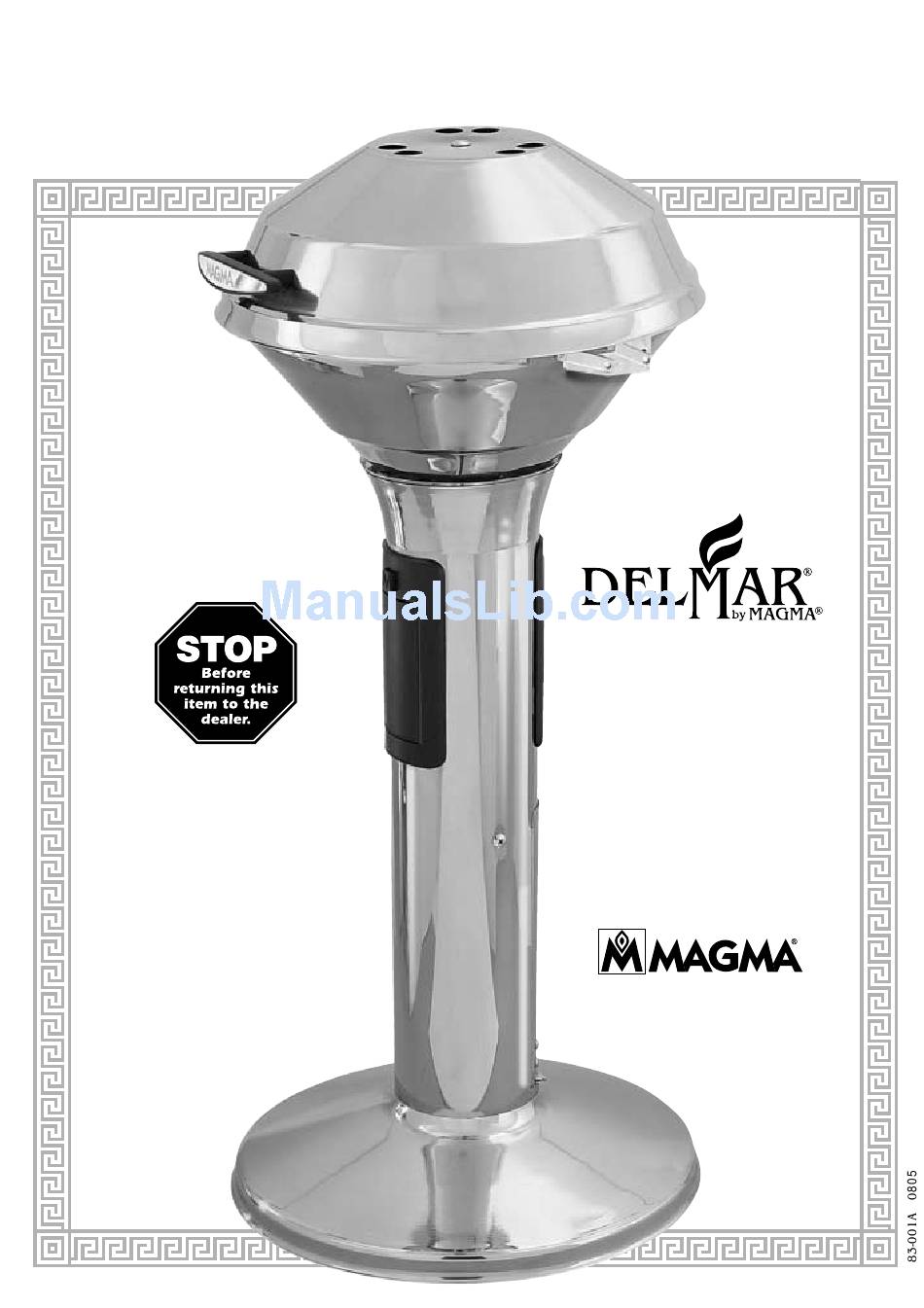

Care and Use Guide
for Del Mar
Propane Grill
Model DM10-016LP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magma Del Mar DM10-016LP
Summary of Contents for Magma Del Mar DM10-016LP
- Page 1 W N E R ’ S For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling TOLL FREE IN U.S.A. AND CANADA 1-800-86-MAGMA 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com...
-
Page 2: Important Safety Warnings
IMPORTANT SAFETY WARNINGS PLEASE READ THE FOLLOWING BEFORE OPERATION OF YOUR DEL MAR FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, immediately call your gas supplier or your fire department. - Page 3 The pressure regulator and hose assembly supplied with the outdoor cooking appliance must be used. The LP gas cylinder must be disconnected when this appliance is not in use. ™ Gas Grill is individually fire tested before it leaves the factory.
- Page 4 Magma ® Del Mar Series Barbeque Grill. We have used the finest materials in its construction and with only minimal care, the BBQ and its components will give you many years of dependable service. Please take time to read...
- Page 5 Stainless steel grill grate 16” diameter, 201 sq. inches (Inside) Stainless steel Radiant Burner Plate and Dome System permits use of the Del Mar as a BBQ, a stove, or as an oven (Inside) Stainless steel burner “Hideaway” control panel One knob design with dependable integrated Piezo igniter...
-
Page 6: Removing Packing Materials
REMOVING PACKING MATERIALS 1. Remove the grill 2. Take out the grate by depressing the grate at the tabs and turning the grate clockwise until it is free of the 3. Remove the radiant holding clips. 4. Place the radiant cardboard packaging plate and dome that includes the... - Page 7 INSPECTION OF HOSES 1.Visually inspect all hoses prior to each of the grill. 2. Remove the inspection panel located on the rear of column near the top by rotating the locking mechanism. 6. Open the access 7. Remove the panel at the bottom rear of the column.
-
Page 8: Inspection For Spiders
Spiders, Earwigs, and other insects find the venturi tube and burner of barbeques to be ideal nest building areas. Webs, or the insects themselves, can block the flow of gas, which may cause flash- back (a fire in the venturi tube). Always inspect these areas prior to operation of the grill. Inspection Procedure: 1. -
Page 9: Leak Test
• Do not test indoors. Always test outdoors in a well-ventilated area. • Test for leaks each time the propane canister is replaced. • Use a solution of mild soap (liquid dish soap works well) and water for testing • Do not use an open flame to check for leaks. •... -
Page 10: Changing The Fuel Canister
OPERATION OF THE ”HIDEAWAY” CONTROL PANEL 1. Depress the release button. CHANGING THE FUEL CANISTER 1. Turn valve to the off position. 2. Open the Canister Access Panel. 2. This will open the “hideaway” control panel. Note: Since the speed at which the control panel opens is, in part, regulated by the gas... -
Page 11: Lighting Instructions
Igniter Lighting Your Del Mar Grill is equipped with a Piezo crystal ignition that is activated through the valve control knob. For proper operation, the igniter/electrode should be clean and free from debris. Regular inspection and cleaning is recommended, (see“Maintaining you Grill”). 1. -
Page 12: Operation
Your Magma Del Mar gas grill is equipped with adjustable nylon deck pads. These leveling devices can be used to correct small inconsistencies in you balcony, terrace, deck, or patio to insure a level grill. - Page 13 USING THE DEL MAR AS A STOVE Using the Del Mar as a Stove The unique design of the Del Mar allows it to be used as a conventional stove in your outdoor setting. This permits you to fry, saute, boil, wok, etc. • Remove the grill grate. • Remove the radiant dome •...
-
Page 14: A Word About Stainless Steel
Rinse with fresh water and wipe the stainless dry when finished. We also recommend that between uses, you cover the grill (Optional acrylic dyed custom covers are available through your retailer or directly from Magma). Interior Stainless Steel Components: Interior stainless steel components (firepan, radiant plate and dome, and burner) are subject to high temperatures, grease and food residue. -
Page 15: Troubleshooting Guide
Problem Burner will not light with igniter Burner will not light even with match Flame goes out Flare-up Yellow sooty flame TROUBLE SHOOTING GUIDE Possible Cause Igniter electrode covered with grease or residue Igniter/electrode wire loose or disconnected Wire is shorted causing spark from wire before electrode No spark being generated Burner ground strap is not... -
Page 16: Expanded View
11-001 Handle & Outer Lid Assembly 11-002 “Magma” Name Plate w/ Adhesive 11-017 Handle with Mounting Hardware 10-453 Cooking Grill 10-765 Radiant Plate & Dome 10-657 Burner with Igniter Strap 11-005 Fire Pan with Grill Clips 11-006 Internal Wind Baffle... - Page 17 DEL MAR BY MAGMA Manufacturer Model Name Model Number UPC Code Fuel Fuel Supply Fuel Burn Time Construction Materials Exterior Interior Grill Surface Area Grill Material Number of Burners Grill Burner BTU Burner Material Burner Valve Material Ignition System Handle Material...
- Page 18 Stainless Steel Wok Fish & Veggie Grill Tray Stainless Steel Finish or Stainless Steel with DuPont ® Teflon Select Non-Stick Finish ® OTHER MAGMA ACCESSORIES Gourmet 9 Piece “Nesting” Cookware Stainless Steel with DuPont ® Teflon ® Select Non-Stick Finish...
-
Page 19: Quick Reference Chart
Type of Cut of Size of Meat Meat Steak 1” - 1-1/2” Beef Roast 2 -3 Lbs. Hamburger 3/4” - 1” Steak/Fillet 3/4” - 1” Fish Whole Chops/Steaks 1” - 1-1/2” Pork Ham Steaks 3/4” - 1” (Pre-Cooked) Spare Ribs 3 Lbs. -
Page 20: Limited Warranty
MAGMA and the Magma logo are registered trademarks of Magma Products, Inc. Del Mar is a registered trademark of Magma Products, Inc. This product is protected for Magma Products, Inc. under one or more of these U.S. patents: 5,413,090; D438,750; 292,163; other patents pending. This product is further protected for Magma Products, Inc.
