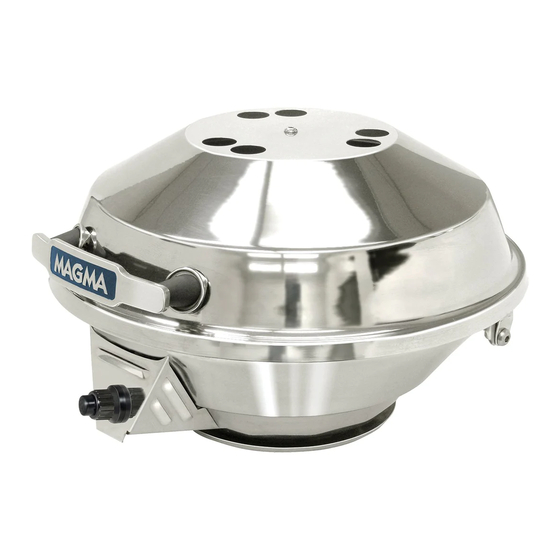

Magma Marine 2 Kettle A10-207 Owner's Manual

Magma Marine 2 Kettle A10-207 Owner's Manual

Stainless steel combination, stove & gas grill
Hide thumbs Also See for Marine 2 Kettle A10-207:

Advertisement

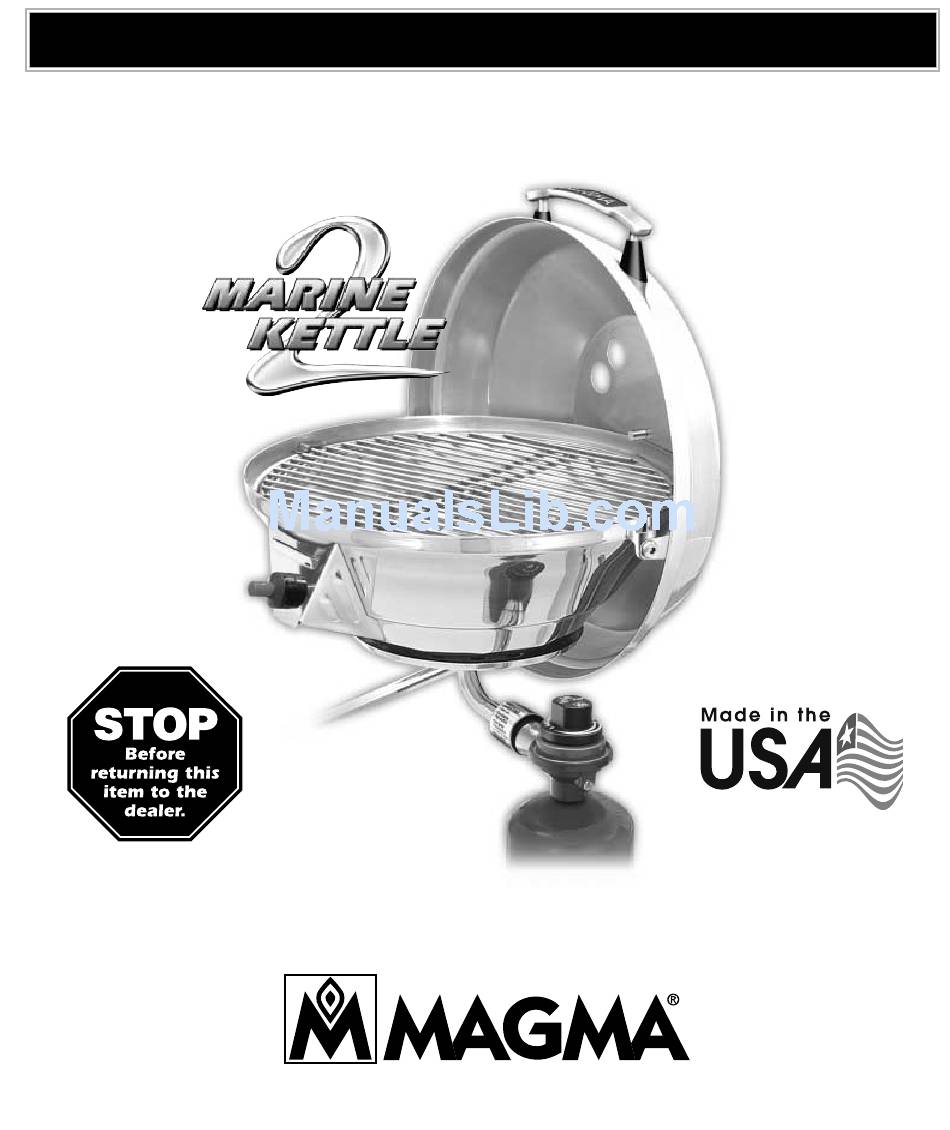

For Models: A10-207 • A10-217
Stainless Steel Combination, Stove & Gas Grill
For questions regarding performance, assembly, operation, parts, or returns, con-
tact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m.
Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com
Read these instructions carefully before use. Familiarize yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
OWNER'S MANUAL
®
U.S. PATENTS
4,788,962
5,330,154
5,414,090
D 292,163
Other Patents and
Design Patents Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marine 2 Kettle A10-207 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Magma Marine 2 Kettle A10-207

  • Page 1 Design Patents Pending For questions regarding performance, assembly, operation, parts, or returns, con- tact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com Read these instructions carefully before use. Familiarize yourself with the appliance before...
  • Page 2 • USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE AMERICAN BOAT AND YACHT COUNCIL (ABYC) STANDARDS A-1 (9), MARINE LIQUIFIED PETROLEUM GAS (LPG) SYSTEMS. • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN.
  • Page 3 Flat Surface 1 Select and install appropriate Magma mount in your desired location. Prior to installing the grill, check that mount does not easily move with a reasonable force applied. 2 Next, decide if gas control valve will be easier to access from the center right side or center left side of grill.
  • Page 4 7 Install radiant plate & dome over burner on fire pan ridge. 8 Install grill grate by rotating grate so that both grill grate tabs slide under the holding clips (8a), locking grate and all internal components in correct position. 9 Insert the turbo venturi tube into the threaded pipe on the bottom of the grill body and firmly tighten the holding nut so it doesn’t turn when rotating valve.
  • Page 5 • DO NOT CONNECT A HIGH-PRESSURE SUPPLY HOSE FROM A NON-REGULATED TANK DIRECTLY TO GRILL. Magma's grills are designed for use with small disposable propane canisters or with pre-regulated low- pressure propane and optional low-pressure valves. Running high-pressure propane fuel supply lines on a boat is in violation of American Boat &...
  • Page 6: Operating Procedures

    OPERATING PROCEDURES WARNING: Do not overheat grill. Magma grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open.
  • Page 7 Magma A10-210 Propane Storage Tote. Never stow below decks USING THE MARINE KETTLE AS A STOVE Magma’ s patented, unique design of the Marine Kettle allows it to be used as a conventional stove. This permits you to fry, saute, boil, wok, etc. • Remove the grill grate.
  • Page 8: Maintenance

    All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice.
  • Page 9: Replacement Parts

    REPLACEMENT PARTS A10-217 A10-207 Party Size Original Size 10-453 10-153 Cooking Grill Cooking Grill 10-665 10-765 Radiant Plate Radiant Plate & Dome & Dome 10-657 10-657 Burner Burner 10-658 10-758 Fire Pan Fire Pan 10-651 10-651 Complete Handle Complete Handle Assembly &...
  • Page 10: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Burner will not Electrode covered with grease Clean electrode light with igniter or residue Adjust burner so burner ground strap is Electrode not directly under burner ground strap directly above electrode Electrode wire loose, Clean, adjust &...
  • Page 11: Limited Warranty

    800-86-MAGMA, or via e-mail at mail@MagmaProducts.com, or via U.S. Postal Service mail at “Magma Products, Inc., attention Customer Service, 3940 Pixie Ave. Lakewood, CA, 90712. “ The defective part, along with proof of purchase, must be returned postage prepaid to Magma Products, Inc. We suggest that you keep your purchase receipt as we may require reasonable proof of purchase.
