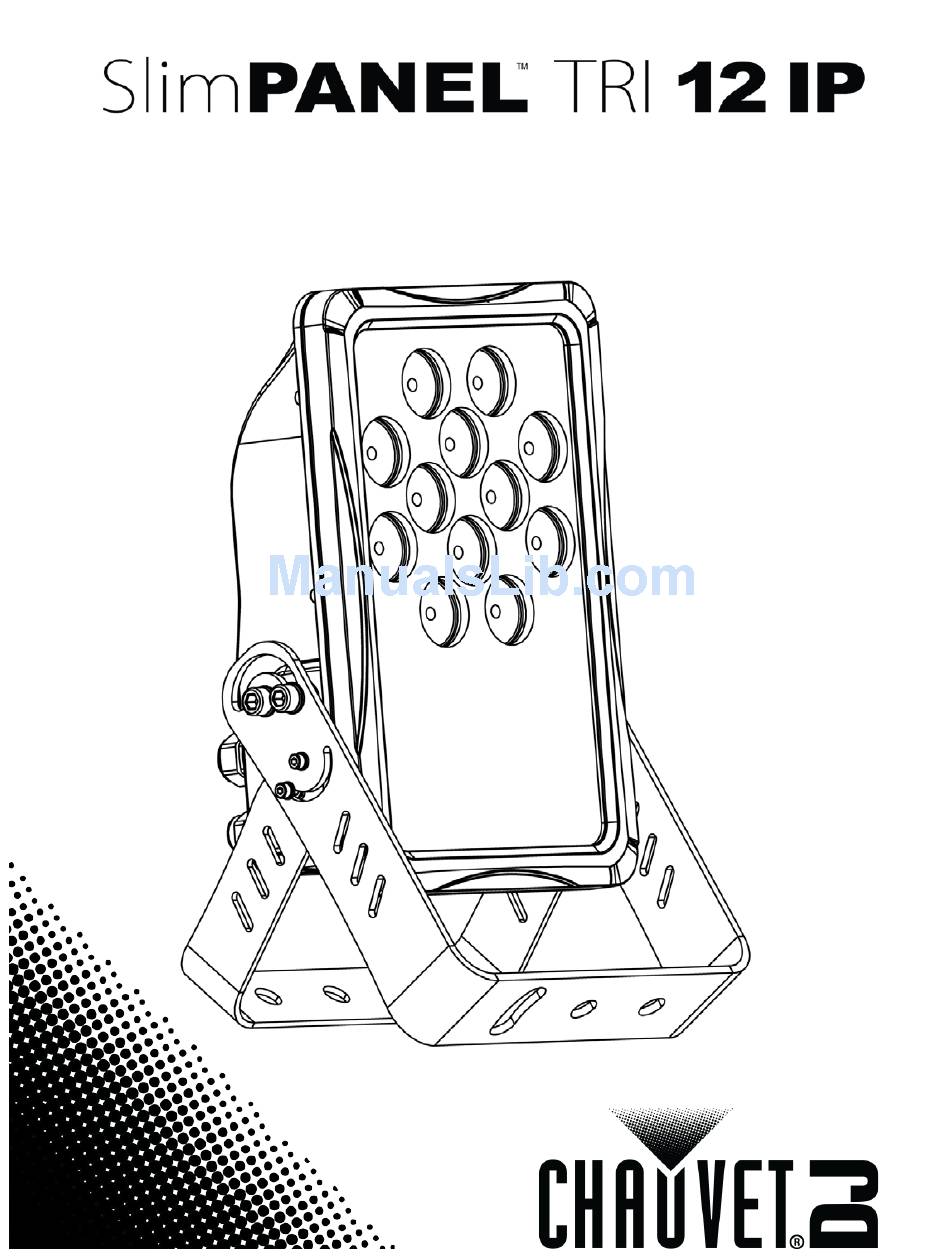

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ................3 What Is Included ....................3 Unpacking Instructions ..................3 Claims ........................3 Text Conventions ....................3 Icons ........................3 Disclaimer ......................3 Product at a Glance ..................4 Safety Notes ...................... 4 2. -
Page 3: Before You Begin
Chauvet. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Touch Display Power In Power Out DMX In Mounting Bracket DMX Out SlimPANEL™ TRI 12 IP User Manual (Rev. 4) Page 5 of 18... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 18 SlimPANEL™ TRI 12 IP User Manual (Rev. 4) -
Page 7: Setup
The power linking information above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. Orientation The SlimPANEL™ TRI 12 IP may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control Operation panel. Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 10: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 11: Dmx Channel Assignments And Values
DMX Channel Assignments and Values Channel Function Value Setting 3-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue Channel Function Value Setting 4-CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó... -
Page 12: 9-Ch
Channel Function Value Setting 9-CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 010 No function 011 ó 200 Color Macros 201 ó 205 White 1: 3200K 206 ó... -
Page 13: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Turn the product on. Never connect a product that is operating in any standalone mode (Static, Automatic, or Sound) to a DMX string connected to a DMX controller. -
Page 14: Touch Control Panel Lock
Touch Control To enable the touch panel lock, follow the instructions below: Press <MENU> repeatedly until PASS shows on the display. Panel Lock Press <ENTER>. Press <UP> or <DOWN> until ON shows on the display to enable the touch panel lock. -
Page 15: Technical Information
5. T ECHNICAL NFORMATION Product Dust build up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, you should clean your lighting products at least twice a month. -
Page 16: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 14 in (358 mm) 7 in (180 mm) 3.5 in (90 mm) 10.5 lbs (4.8 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 17: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 18: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web Pinxton, Nottingham, UK NG16 6NT www.chauvetlighting.co.uk...
