Summary of Contents for Chauvet SlimBank TRI-18

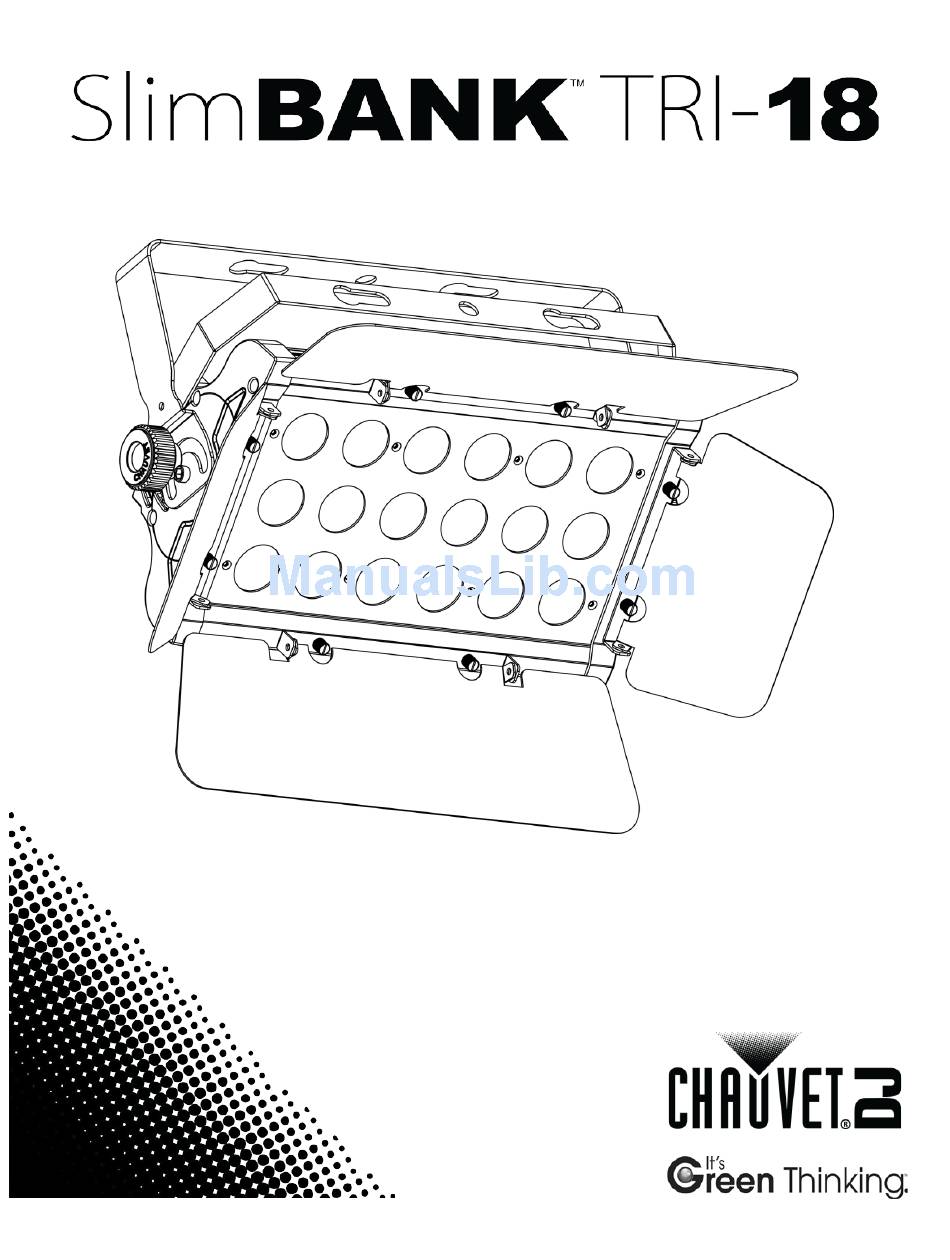

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ......................... 3 Unpacking Instructions ........................ 3 Claims ..............................3 Text Conventions ........................3 Symbols ............................3 Disclaimer ........................... 3 Product at a Glance ........................4 Safety Notes ..........................4 2.
  • Page 3: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention...
  • Page 4: Product At A Glance

    Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes These notes include important information about the mounting, usage, and maintenance of this product; read before using the product. ·...
  • Page 5: Introduction

    2. I NTRODUCTION Overview Microphone Power Display Safety Fuse Holder DMX In Menu Buttons Loop Back Panel View Power Out DMX Out SlimBANK™ TRI-18 User Manual Page 5 of 19...
  • Page 6: Dimensions

    Dimensions 15.3 in 389 mm 7.4 in 187 mm 7.7 in 197 mm Page 6 of 19 SlimBANK™ TRI-18 User Manual...
  • Page 7: Setup

    3. S ETUP AC Power The SlimBANK™ TRI-18 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 8: Power Linking

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region.
  • Page 9: Mounting

    Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimBANK™ TRI-18 may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
  • Page 10: Operation

    4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>...
  • Page 11: Configuration (Dmx)

    Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses.
  • Page 12: Dmx Channel Modes, Assignments, And Values

    DMX Channel Modes, Assignments, and Values Channel Function Value Setting 13-Channel 000 ó 255 0 to 100% 000 ó 255 0 to 100% Green Section 1 000 ó 255 0 to 100% Blue 000 ó 255 0 to 100% 000 ó 255 0 to 100% Green Section 2 000 ó...
  • Page 13: 9-Channel

    Channel Function Value Setting 9-Channel 000 ó 255 0 to 100% Dimmer 000 ó 255 0 to 100% 000 ó 255 0 to 100% Green 000 ó 255 0 to 100% Blue 000 ó 010 No function Shutter 011 ó 255 Strobe (slow to fast) 000 ó...
  • Page 14: Configuration (Standalone)

    Configuration Set the product in one of the standalone modes to control without a DMX controller. · Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode (Static, Auto, or Sound-Active) to a DMX string connected to a DMX controller.
  • Page 15: Static Colors

    Static Colors To select a preset static color, do the following: Press <MENU> repeatedly until C-- shows on the display. Press <ENTER> and r (red), g (green), b (blue), gb (cyan), r b (magenta), rg (yellow), or rgb (white) shows on the display. Use <UP>...
  • Page 16: Master/Slave Mode

    Master/Slave The Master/Slave mode allows a single SlimBANK™ TRI-18 unit (the “master”) to control the actions of one or more SlimBANK™ TRI-18 units (the “slaves”) without the Mode need of a DMX controller. The master unit will be set to operate in either an auto program or Sound-Active mode, while the slave units will be set to operate in Slave mode.
  • Page 17: Technical Information

    5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.
  • Page 18: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 15.3 in (389 mm) 7.7 in (197 mm) 7.4 in (187 mm) 7 lb (3.2 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal)
  • Page 19: Returns

    Ireland. If you live outside the U.S., United Kingdom, or Ireland, contact your distributor of record and follow their instructions on how to return CHAUVET® products to them. Visit our website for contact details. Call the corresponding CHAUVET® Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product.
