Page 1: User Manual

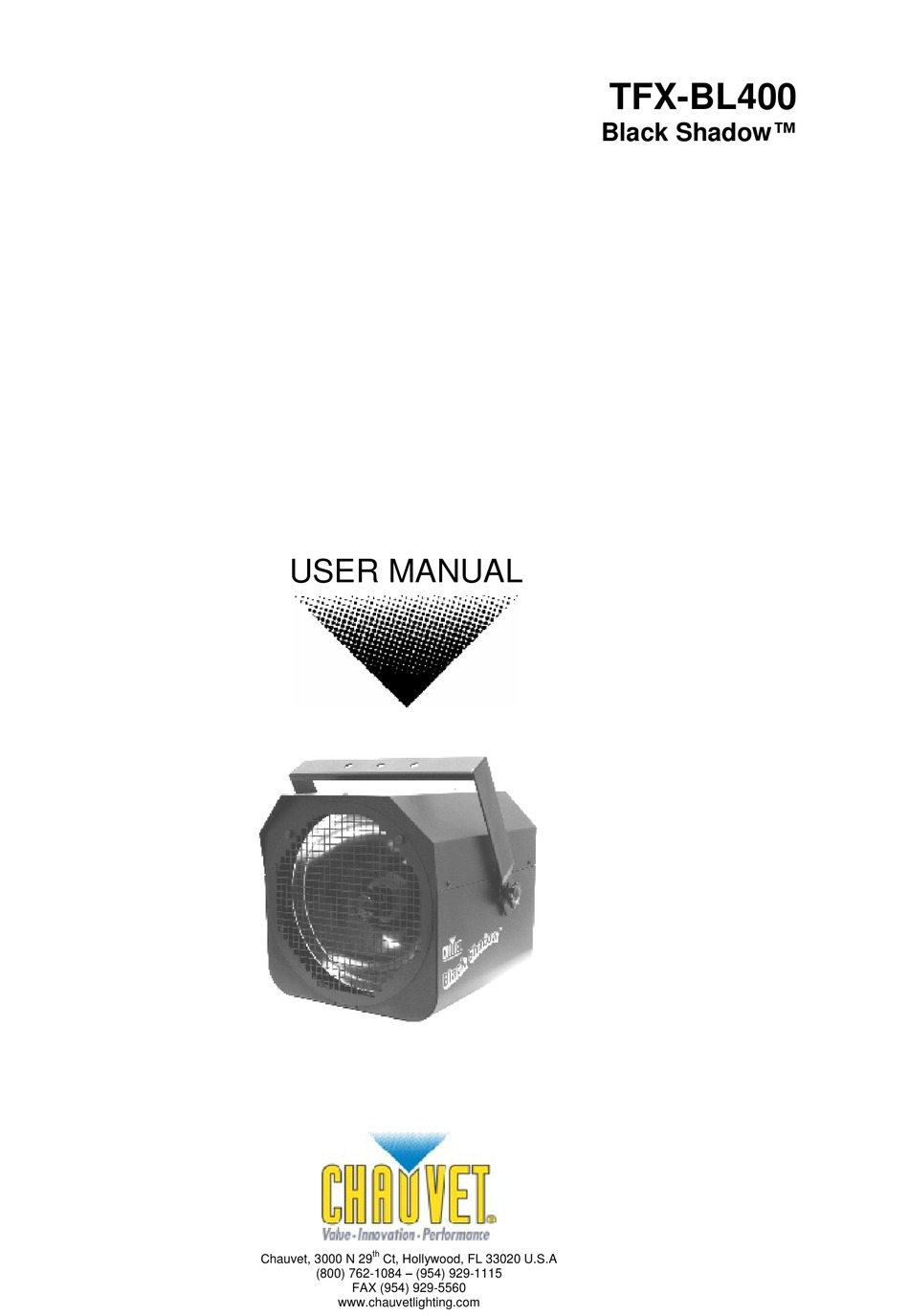

TFX-BL400 Black Shadow™ USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
ABLE OF ONTENT TABLE OF CONTENT............................... 2 BEFORE YOU BEGIN............................... 3 .......................................... 3 HAT IS INCLUDED ......................................3 NPACKING NSTRUCTIONS AC P ............................................. 3 OWER ........................................3 AFETY NSTRUCTIONS INTRODUCTION ................................4 ............................................4 EATURES ........................................4 RODUCT VERVIEW SETUP ....................................5 ............................................... -
Page 3: Before You Begin
Avoid direct eye exposure to lamp while it is on. lamp source. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. TFX-BL400 User Manual Revision: 2006-01-20/16:32... -
Page 4: Introduction

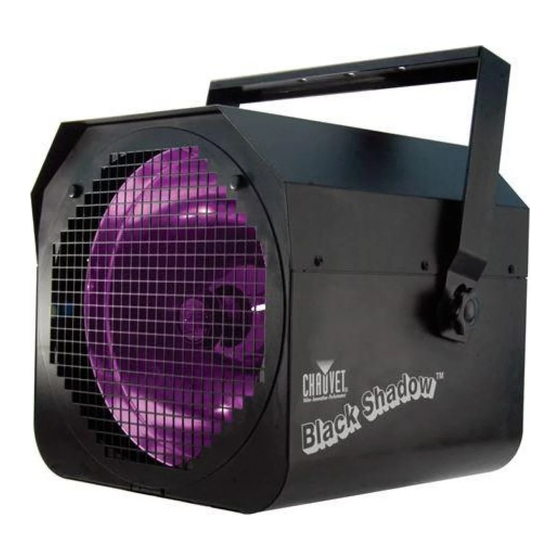

NTRODUCTION Features high-powered 400-watt blacklight cannon long throw easy lamp access safety wire mesh switch-selectable power settings 115V or 230V, (240V available) no duty cycle! Product Overview Hanging bracket Tension knob Lamp wire mesh cover WARNING! NEVER RUN ON A DIMMER CIRCUIT! YOU MUST WAIT 15 MINUTES FOR LAMP... -
Page 5: Setup
ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. A bulb is included with your product. Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. Do not touch the envelope (glass area) of the bulb with bare hands. -
Page 6: Mounting
Setup Mounting O RI E NT AT IO N This fixture may be mounted in any position provided there is adequate room for ventilation. RIG G ING Mount the fixture using, a suitable “C” or “O” type clamp. Adjust the Figure 2 - Clamp angle of the fixture by loosening both knobs and tilting the fixture. -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode... -
Page 9: Technical Specifications
Appendix Technical Specifications WEIGHT & DIMENSIONS Length........................... 432 mm (17 in) Width..........................381 mm (15 in) Height ........................... 355 mm (14 in) Weight........................16.33 Kg (36 lbs) POWER Switch-selectable power settings..............115V 60 Hz or 230V 50 Hz European version ....................... 240V 50 Hz AC input ..................
