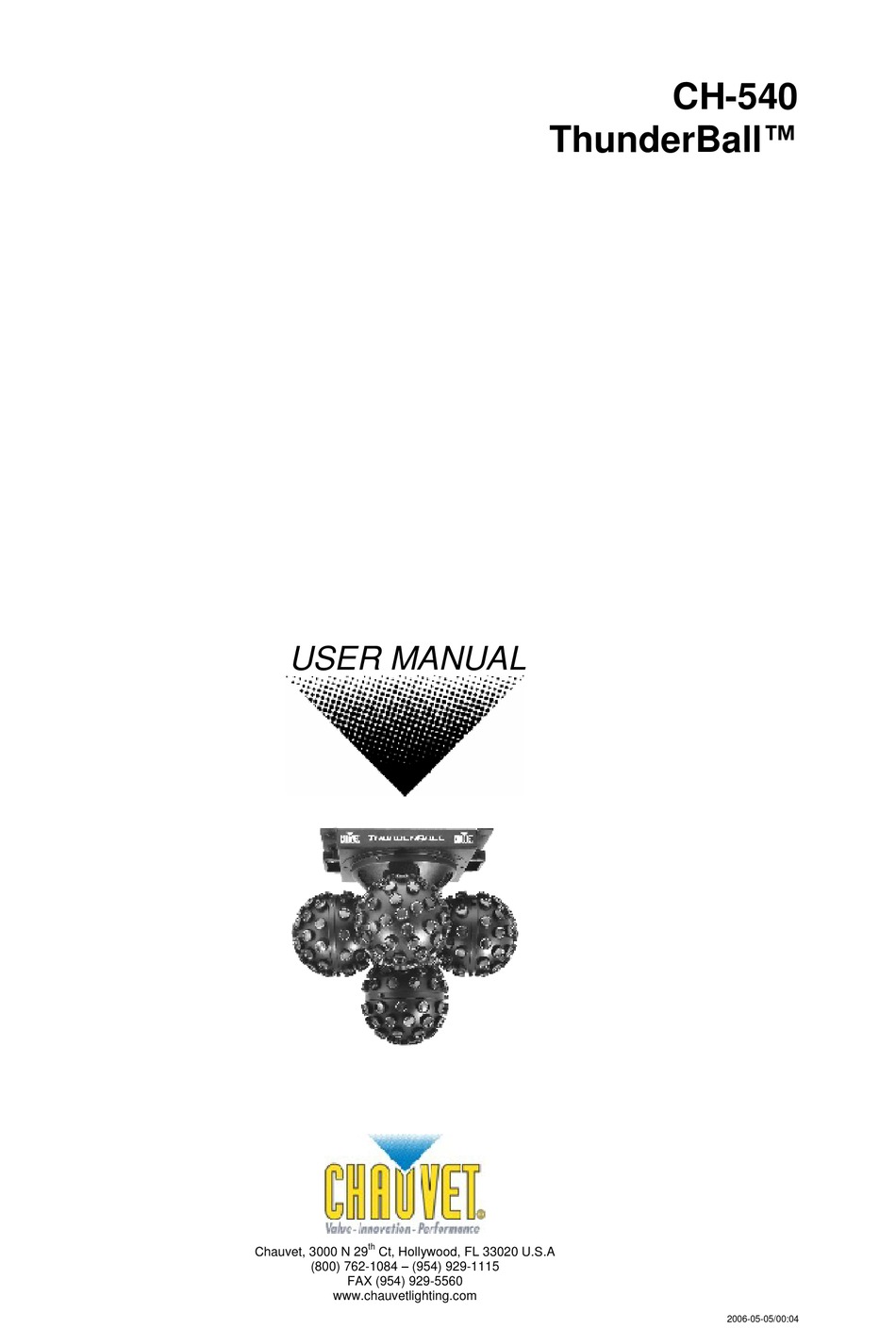

- Page 1 CH-540 ThunderBall™ USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-05-05/00:04...
-
Page 2: Table Of Contents
Rigging ... 5 OPERATING INSTRUCTIONS... 6 Duty Cycle (recommended) ... 6 APPENDIX... 7 ... 7 ENERAL AINTENANCE ... 7 ETURNS ROCEDURE ... 7 LAIMS ... 8 ENERAL ROUBLESHOOTING ... 9 ECHNICAL PECIFICATIONS ... 9 ECHNICAL UPPORT CH-540 User Manual 2006-05-05/00:04... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x ThunderBall™ (CH-540) 5 x JCD130V200W lamps or 5 x JCD230V200W lamps Warranty Card & Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
NTRODUCTION Features 5 constantly rotating spheres 360° rotation on one axis 61 interchangeable lenses per sphere Sphere lenses come in Yellow, Green, Blue, Red and Multi-colors Product Overview Carrying Handles CH-540 User Manual 2006-05-05/00:04... -
Page 5: Setup
Safety cables should always be used. Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. CH-540 User Manual WARNING! EXTREMELY HOT! Allow time to cool before handling... -
Page 6: Operating Instructions
For every 15 minute period that the fixture is used, allow 15 minutes in the Off position to cool down. To learn more about these and other CHAUVET products visit us at www.chauvetlighting.com. CH-540 User Manual... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-540 User Manual Foggers Lights & Snow ... -
Page 9: Technical Specifications
Maximum ambient temperature ... 40° (104° F) FUSE Main ...20mm Glass15A 250V Fast Blow (115V) Main ...20mm Glass 10A 250V Fast Blow (230V) ORDERING INFORMATION ThunderBall™..CH-540 Fuse 15A ... P170FUSE015 Fuse 10A ... P170FUSE010 Technical Support Address: Support (Email):...
