ASSEMBLY INSTRUCTIONS - MANTEL

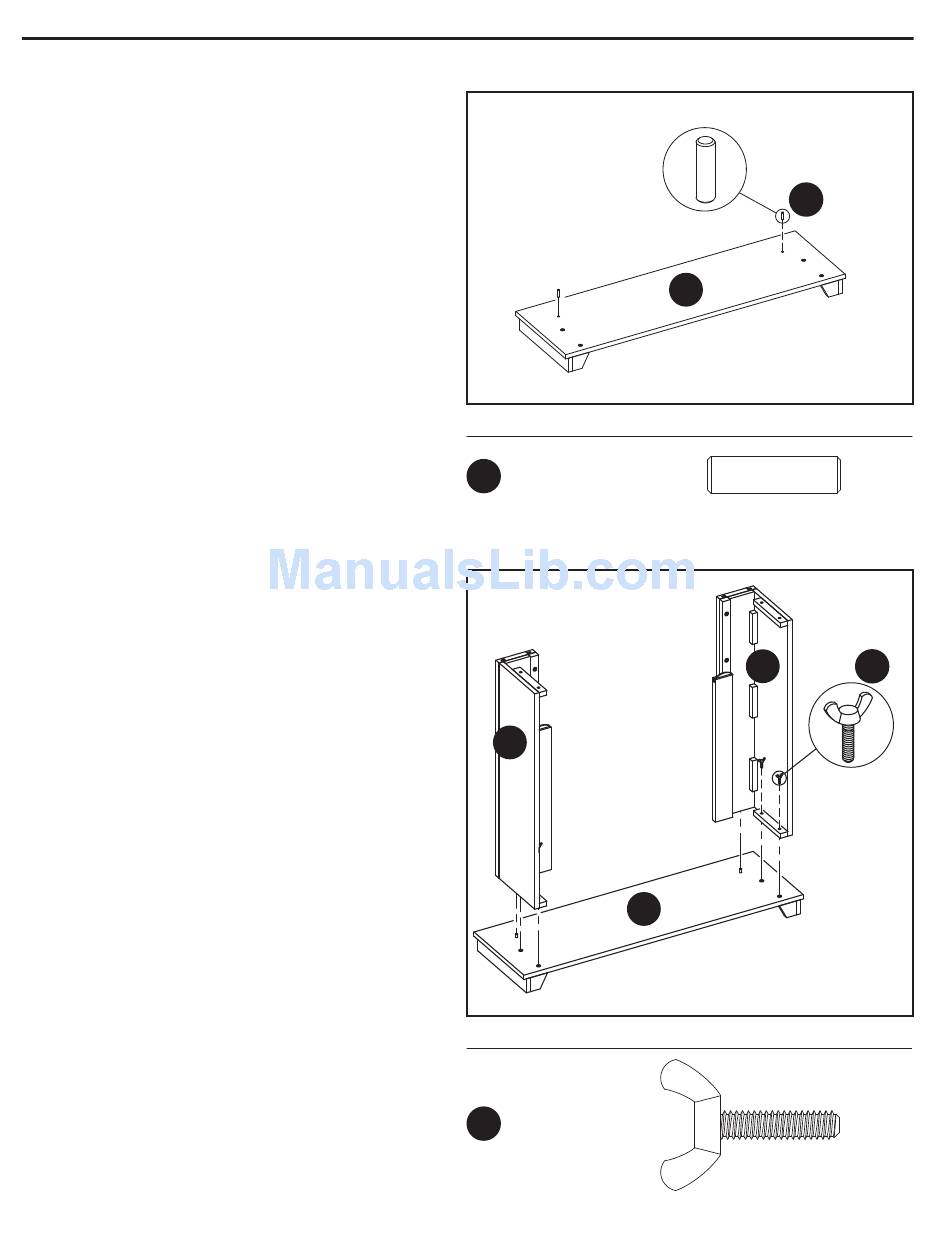

1. Insert 2 wood dowels (BB) into hearth (A)
as shown in Fig. 4
2. Lower right side panel (C) and left side
panel (B) onto wood dowels (BB) and hearth
(A) as shown in Fig. 5 and secure with 4
wing bolts (AA).
Hardware Used
BB
Wood Dowel
C
A
Hardware Used
AA
Wing Bolt
9
Fig. 4
BB
A
Fig. 5
B
x 2
AA
x 4
