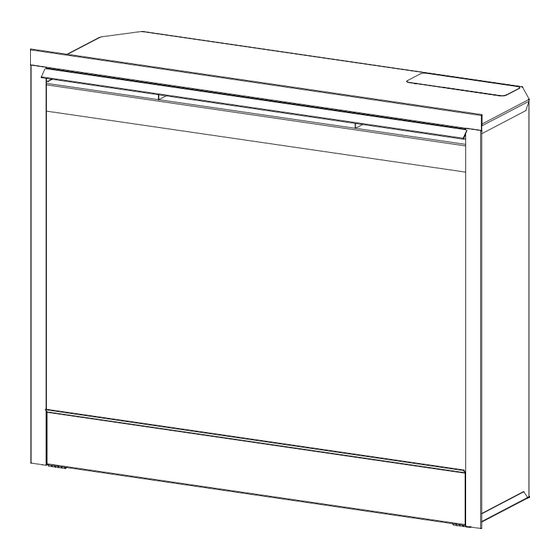

Dimplex DF2690 Owner's Manual
Hide thumbs
Also See for DF2690:
- Owner's manual (63 pages) ,
- Service manual (16 pages) ,
- Service manual (14 pages)
Table of Contents
Advertisement
Owner's Manual
Model Numbers:
DF2690
DFP6854
DF2618
6904410100
Serial Number
Model Number
Part Number
Valued Customer,
Thank you and congratulations for purchasing a Dimplex
electric fireplace. Over the years, valuable memories
will occur around the warmth and comfort of your
fireplace. Thank you for allowing our product to be the
backdrop for those special moments.
Quality checked by:
7208680200rev05
Advertisement
Table of Contents
Related Manuals for Dimplex DF2690
Summary of Contents for Dimplex DF2690
- Page 1 Owner’s Manual Model Numbers: DF2690 DFP6854 DF2618 6904410100 Quality checked by: Serial Number Model Number Part Number Valued Customer, Thank you and congratulations for purchasing a Dimplex electric fireplace. Over the years, valuable memories will occur around the warmth and comfort of your fireplace. Thank you for allowing our product to be the backdrop for those special moments. 7208680200rev05...
-
Page 2: Quick Reference Guide
1. Prior to the first use of the fireplace verify the following: • Are the circuit breakers for the socket the unit uses on? • Are the light bulbs in your fireplace loose? (to check, follow the instructions for replacing the light bulbs under the Maintenance section of this manual) 2. The heater on your fireplace may emit a slight, harmless odor when first used. This odor is a normal condition caused by the initial heating of internal heater parts and will not occur again. 3. The information regarding the model of your fireplace can be found on the rating plate. See Page 6 for location. 4. If you have any technical questions regarding the operation or service of your fireplace have your Model and Serial Number ready, and contact Dimplex North America technical support at 1-888-DIMPLEX (1-888-346-7539) before returning the p roduct to the point of purchase. -
Page 3: Table Of Contents
cONTeNTS Important Instructions ....PAGe 4 Model and Serial Number Information..PAGe 6 Fireplace Assembly ....PAGe 7 Site Selection and Preparation . -
Page 4: Important Instructions
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the unit is left operating and unattended. 4. Young children should be supervised to ensure that they do not play with the appliance. 5. The appliance is not intended for use by young children or infirmed persons without supervision. 6. The appliance must be positioned so that the plug is accessible. 7. Always unplug the electric fireplace when not in use. 8. If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard. cAuTiON RISK OF ELECTRIC SHOCK DO NOT OPEN NO USER-SERVICEABLE PARTS INSIDE 9. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the electric fireplace has been dropped or damaged in any manner. Contact Dimplex Technical Service at 1-888-346-7539. 10. Do not use outdoors. 11. Never locate fireplace where it may fall into a bathtub or other water container. 12. Do not install the fireplace directly on carpet or a similar surface which may restrict air circulation beneath the unit. 13. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over. 14. Do not locate the heater immediately below a fixed socket-outlet. 15. To disconnect the fireplace, turn the controls off, then remove the plug from the outlet. -
Page 5: Save These Instructions
16. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. 17. To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. 18. All electrical heaters have hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors. 19. Do not modify the electric fireplace. Use it only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. 20. Avoid the use of an extension cord. Extension cords may overheat and cause a risk of fire. If you must use an extension cord, the cord shall be No. 14 AWG minimum size and rated not less then 1875 Watts. 21. Do not burn wood or other materials in the electric fireplace. 22. Do not strike the fireplace glass. 23. Always use a certified electrician should new circuits or outlets be required. 24. Always use properly grounded, fused and polarized outlets. 25. Disconnect all power supply before performing any cleaning, maintenance or relocation of the unit. 26. When transporting or storing the unit and cord, keep in a dry place, free from excessive vibration and store so as to avoid damage. SAVe THeSe iNSTRucTiONS NOTe: Procedures and techniques that are considered important enough to emphasize. cAuTiON: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. -
Page 6: Model And Serial Number Information
· Reorient or relocate the receiving antenna. · Increase the separation between the equipment and the receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: (1) this device may not cause interference and; (2) this device must accept any interference, including interference that may cause undesired operation of the device. Warning Label Model and Serial Number information If you have any questions regarding our products please have the product model number and serial numbers available upon calling Dimplex customer service or technical support. To locate the model and serial number labels see below. Record the model number and serial number on the front cover of this manual for future reference (Figure 1). Figure 1 Model Number Serial Number... -
Page 7: Fireplace Assembly
WARNiNG: Ensure the power cord is not installed so that it is pinched or against any sharp edges and ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire, electric shock or injury to persons. Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock and injury to persons. Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric shock or injury to persons, always use a licensed electrician. Fireplace Assembly The only assembly required is to slide the front glass onto the fireplace and install hardware to keep it in place. 1. Remove fireplace and glass carefully from the carton, discard the plastic bag and foam packaging. -
Page 8: Site Selection And Preparation
5. Place the Front Glass onto the track of the fireplace (Figure 3) and slide it along the front until it reaches the far left of the unit. 6. Re-attach the right hand trim piece using the four (4) Philips screws from step 4. Site Selection and Preparation This section provides instructions for selecting a location and preparing the site to install the fireplace into your Dimplex mantel surround. 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 2. For ease of electrical hook up you may wish to locate the fireplace near an existing outlet (refer to NOTE 1). 3. Store the fireplace in a safe dry and dust free location. cAuTiON: Clearance for air circulation beneath the fireplace is provided by two spacers. Do not install the fireplace insert directly on carpet or similar surfaces which may restrict air circulation. If installing the fireplace in a c arpeted area, place a... -
Page 9: Fireplace Installation
NOTe 1: A 15 Amp, 120 Volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if after installation the circuit breaker trips or fuse blows on a regular basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker. iMPORTANT: If not Figure 5 using a Dimplex mantel, the fireplace must be installed in an enclosure with the following MiNiMuM dimensions (Figure 5). 23 ⅛” (587 mm) -
Page 10: Operation
Plug the unit into a 15 Amp, 120 Volt outlet. If the cord does not reach, you may use an extension cord rated for a minimum of 1875 Watts. existing Fireplace 1. Seal all drafts and vents with a non-fibrous insulation material to prevent any chimney debris from falling onto the fireplace. Do not install into an existing fireplace that is prone to dampness. 2. Cap the top of the chimney flue to prevent rain from entering. 3. Plan your electric power supply. 4. The power cord can run along the front of the hearth to an outlet near the fireplace. cAuTiON: Clearance for air circulation beneath the fireplace insert is provided by two spacers. Do not install the fireplace insert directly on carpet or similar surfaces which may restrict air circulation. If installing the fireplace in a carpeted area, place a one-piece, solid, flat surface under the fireplace insert. Ensure that all three of the insert’s feet rest securely on this surface. - Page 11 Figure 6 B. interior Light control Turn the interior light control knob to increase or decrease the brightness of the interior light. c. LeD indicators Indicates the current function of the fireplace. D. Flame/Heat Selection Switch Toggles between flame effect, low and high heat settings. e. Heater Thermostat control To adjust the temperature to your individual requirements, turn the thermostat control clockwise all the way to turn on the heater. When the room reaches the desired temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in this position to maintain the room temperature at its setting. For additional heat, turn clockwise until you hear the click again and the heater will turn on. To turn the heater off, rotate the knob fully counter clockwise. F. Main ON/OFF Switch The ON/OFF Switch supplies power to all fireplace functions. Resetting the Temperature cutoff Switch This unit is equipped with a thermostat which controls the temperature of the room by turning the heater on and off. The heater is protected with a safety device to prevent overheating. Should the heater overheat, an automatic cut out will turn the heater off and it will not come back on without being reset. It can be reset by switching the ON/...
- Page 12 OFF Switch to OFF and waiting five (5) minutes before switching the unit back on. cAuTiON: If you need to continuously reset the heater, unplug the unit and call Technical Support at 1-888-346-7539. Please have your model and serial number ready when calling. Remote control Figure 7 The fireplace is supplied with a radio frequency remote control. This remote control has a range of approximately 50 feet (15.25 m), it does not have to be pointed at the fireplace and can pass through most obstacles (including walls). It is supplied with one of hundreds of independent Button frequencies to prevent interference with other units. The frequency designation is indicated on the back of the transmitter. Button Remote control initialization Follow steps 1 through 6 to initialize your fireplace for the first time. This procedure is also required every time there is a loss of power to the remote control in the fireplace. (I.E. power failure, breaker tripped, main power switch is turned off) 1. Ensure that power is supplied through the main service panel.
-
Page 13: Maintenance
Remote control usage The remote control operates the fireplace levels sequentially, flames only to flames and low heat, to flames and high heat. The level is increased every time the ON button on the transmitter is pressed. The fireplace can be turned off at any point by pressing the OFF button on the remote control transmitter. Level 1: The flame effect is turned on and the first red indicator light turns on. Level 2: The flame effect remains on, the heater is activated to the low heat setting, and the first and second red indicator lights turn and remain lit. Level 3: The flame effect remains on, the heater is set to the high heat setting, and all three red indicator lights remain lit. Battery Replacement To replace the battery: 1. Slide battery cover open on the hand held transmitter (Figure 7). 2. Correctly install one (1) 12 Volt (A23) battery in the battery holder. 3. Close the battery cover. Maintenance WARNiNG: Disconnect the power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. Light Bulb Replacement Allow at least five (5) minutes for the light bulbs to cool before touching them to avoid accidental burning of the skin. The light bulbs need to be replaced when you notice a dark section of the flame or when the clarity and detail of the log ember bed exterior reduces. There are three (3) bulbs under the log set, which generate the flames and embers, and two (2) bulbs above the log that illuminate the log exterior. Helpful Hints It is a good idea to replace all light bulbs at one time if they are close to... - Page 14 the end of their rated life. Group replacement will reduce the number of times you need to open the unit to replace light bulbs. Care must be taken when removing the log set as the log set contains LED’s and wires. Lower Light Bulb Requirements Quantity of three (3) clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60 Watt rating. Example: GE 60BC or Philips 60 CTC. Do not exceed 60 Watts per bulb. To access the lower light bulb area: 1. Slide fireplace out of mantel. 2. Lay unit on it’s back for safe removal of front glass. 3. Remove four (4) Phillips screws from the right side of trim. 4. Slide glass to right side of fireplace to remove (Figure 8). 5. Pull the front edge of the plastic ember bed or plastic grate up and forward until the rear tab releases from the ledge located at the bottom of the mirror (Figure 9). 6. Remove flicker rod by sliding flicker rod to the left away from the flicker motor and lifting out. 7. Remove light bracket for easier access to light bulbs.
- Page 15 NOTe: Ensure the log set is installed tightly under the back ledge to prevent light leakage. Figure 9 Figure 8 Upper Ember bed Bulbs Lower Bulbs Back Trim Ledge Rear Front Log set Glass Front Side Section Edge upper Light Bulb Requirements Quantity of two (2) clear chandelier or candelabra bulbs with an E-12 (small) socket base, 15 Watt rating. Do not exceed 15 Watts per bulb. To access the upper light bulb area: 1. Slide fireplace out of mantel.
-
Page 16: Warranty
Fireplace Surface cleaning Use a cloth dampened with warm water only to clean painted surfaces of the electric fireplace. Do not use abrasive cleaners. Two Year Limited Warranty Products to which this limited warranty applies This limited warranty applies to your newly purchased Dimplex electric fireplace. This limited warranty applies only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA (and the District of Columbia) except for Hawaii and Alaska. This limited warranty applies to the original purchaser of the product only and is not transferable. Products excluded from this limited warranty Light bulbs are not covered by this limited warranty and are the sole responsibility of the owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,... - Page 17 For products (other than surrounds (mantels) and trims) for the period ending at midnight on the first anniversary of the date of first purchase, Dimplex will in its sole discretion either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair...
- Page 18 For surrounds (mantels) and trims for the period ending at midnight on the first anniversary of the date of first purchase, Dimplex will in its sole discretion either repair or replace such defective surrounds (mantels) and trims or part thereof without charge. If Dimplex is unable to repair or replace such product or part, or...
- Page 19 Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com © 2010 Dimplex North America Limited...
