IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this
fireplace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2011 Dimplex North America Limited

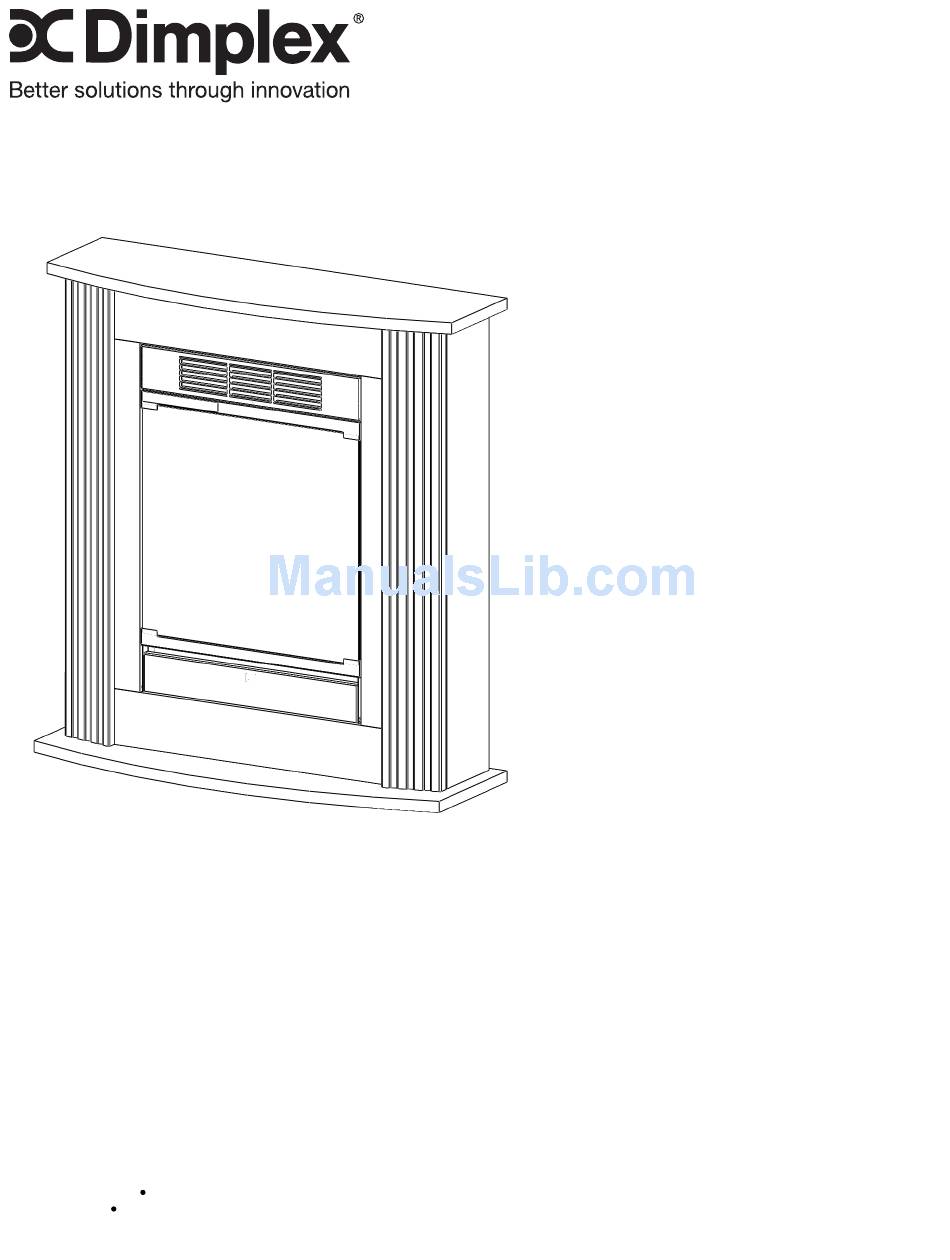

Service Manual
Mini Mozart
Model Number:
DFP15-1131
DFP15-1132
DFP15-1134
DFP15-1140
UL Part Number
690750XXXX
(No Remote)
(No Remote)
(Remote)
(Remote)
REV
PCN
DATE
00
-
4-JAN-12
7400530000R00
Advertisement
Table of Contents
Related Manuals for Dimplex Mini Mozar DFP15-1131
Summary of Contents for Dimplex Mini Mozar DFP15-1131
- Page 1 Dimplex North America Limited 4-JAN-12 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2011 Dimplex North America Limited 7400530000R00...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNINg: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
NOTE: If operating the unit with a remote control, the remote may require re-initializing after turning the power off. CAUTION: If you need to continuously reset the heater, disconnect power and call Dimplex customer service at 1-888-DIMPLEX (1-888-346-7539). Remote Control (Figure 2) -
Page 4: Maintenance
Take care not to over-tighten the bulb. • Refit the back panel and secure with the screws. NOTE: When the unit is not in use, unplug the power cord and neatly coil the power cord and set it beside the unit. Figure 3 Figure 4 www.dimplex.com... -
Page 5: Exploded Parts Diagram
EXPLODED PARTS DIAgRAM Replacement Parts List Models with Remote Flicker Motor ..... 2000220100RP 3-Position Switch ....2800071100RP Flicker Rod . -
Page 6: Wiring Diagram
WIRES FROM PILOT LIGHT WIRES FROM FLICKER MOTOR SWITCH 1 MAN. MODE/ SWITCH 2 SWITCH 2 OFF/ LOW HEAT HIGH HEAT CAPACITOR REMOTE MODE ON/OFF ON/OFF BLOWER MOTOR 120V~ 60Hz FLICKER LIGHT PILOT MOTOR BULB HEATING LIGHT CUT-OUT ELEMENTS www.dimplex.com... -
Page 7: Switch Replacement - On/Off, Low/High Heat
SWITCH REPLACEMENT – ON/OFF, cover. Disconnect the wiring connections, noting their original locations. LOW/HIgH HEAT NOTE: A flat head screwdriver can be used to gently Tools Required: Phillips head Screwdriver pry between the end of the connector and the switch to WARNINg: If the fireplace was operating prior to release the wires. -
Page 8: Flicker Motor/Flicker Rod Replacement
Connect the new power cord into the terminal block fol- Tools Required: Phillips head Screwdriver lowing the original configuration. Needle nose pliers Reassemble in the reverse order. WARNINg: If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and www.dimplex.com... -
Page 9: Remote Control Receiver Replacement
REMOTE CONTROL RECEIVER mounting tabs provided with the new receiver into the same location on the back panel REPLACEMENT Gently push the new remote control receiver onto the Tools Required: Phillips head Screwdriver mounting tabs. WARNINg: If the fireplace was operating prior to Reassemble in the reverse order. -
Page 10: Troubleshooting Guide
Replace light harness Log set dim, not glowing Burnt light bulbs Replace light bulbs Flame Shudder Defective Flicker motor Replace Flicker motor Light leaking around the log set Log set not positioned properly Check log set for proper fit www.dimplex.com... - Page 11 PROBLEM CAUSE SOLUTION Heater Heater is not turning off Improper operation Refer to Operation Section Defective Thermostat Replace Thermostat Heater is not turning on, but Improper operation Refer to Operation Section flame effect is still functioning Loose wiring Trace wiring in unit. Defective Thermostat Replace Thermostat Defective Heater Assembly...
