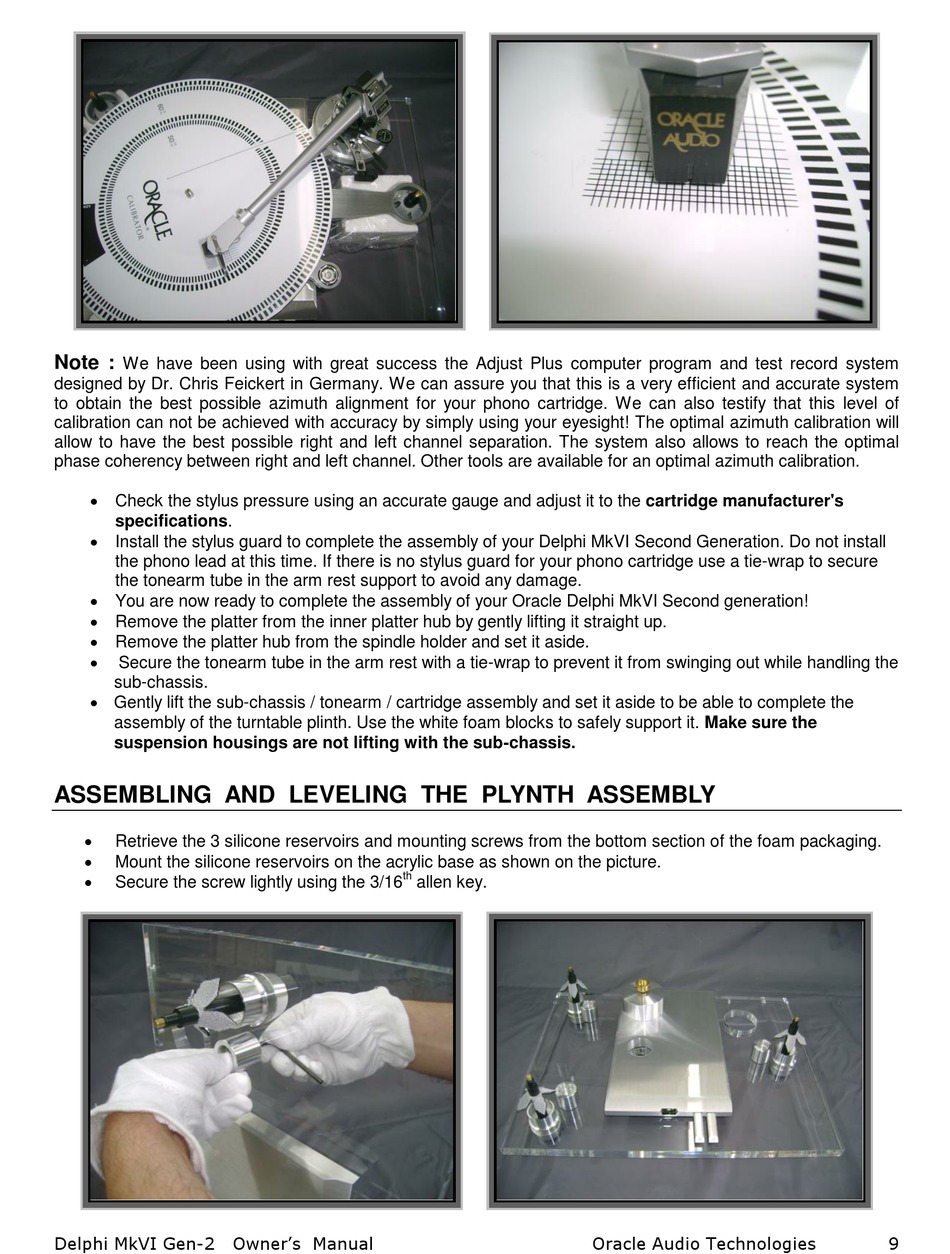

Note :
We have been using with great success the Adjust Plus computer program and test record system
designed by Dr. Chris Feickert in Germany. We can assure you that this is a very efficient and accurate system
to obtain the best possible azimuth alignment for your phono cartridge. We can also testify that this level of
calibration can not be achieved with accuracy by simply using your eyesight! The optimal azimuth calibration will
allow to have the best possible right and left channel separation. The system also allows to reach the optimal
phase coherency between right and left channel. Other tools are available for an optimal azimuth calibration.
 Check the stylus pressure using an accurate gauge and adjust it to the cartridge manufacturer's
specifications.
 Install the stylus guard to complete the assembly of your Delphi MkVI Second Generation. Do not install
the phono lead at this time. If there is no stylus guard for your phono cartridge use a tie-wrap to secure
the tonearm tube in the arm rest support to avoid any damage.
 You are now ready to complete the assembly of your Oracle Delphi MkVI Second generation!
 Remove the platter from the inner platter hub by gently lifting it straight up.
 Remove the platter hub from the spindle holder and set it aside.

Secure the tonearm tube in the arm rest with a tie-wrap to prevent it from swinging out while handling the
sub-chassis.
 Gently lift the sub-chassis / tonearm / cartridge assembly and set it aside to be able to complete the
assembly of the turntable plinth. Use the white foam blocks to safely support it. Make sure the
suspension housings are not lifting with the sub-chassis.
ASSEMBLING AND LEVELING THE PLYNTH ASSEMBLY

Retrieve the 3 silicone reservoirs and mounting screws from the bottom section of the foam packaging.

Mount the silicone reservoirs on the acrylic base as shown on the picture.

Secure the screw lightly using the 3/16
Delphi MkVI Gen-2 Owner's Manual
th
allen key.
