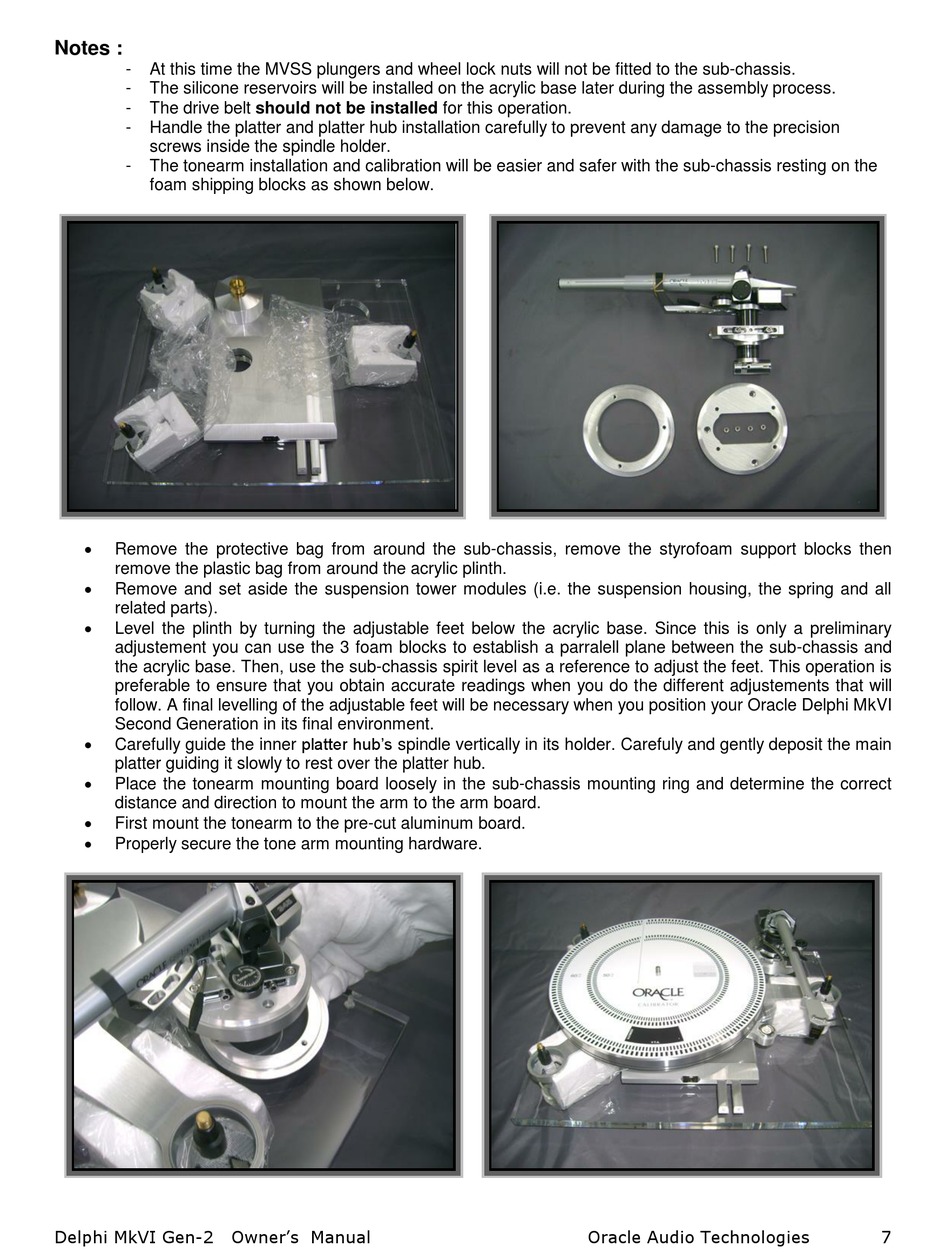

Oracle Audio Delphi MkVI Gen-2 Owner's Manual page 7

Notes :
- At this time the MVSS plungers and wheel lock nuts will not be fitted to the sub-chassis.
- The silicone reservoirs will be installed on the acrylic base later during the assembly process.
- The drive belt should not be installed for this operation.
- Handle the platter and platter hub installation carefully to prevent any damage to the precision
screws inside the spindle holder.
- The tonearm installation and calibration will be easier and safer with the sub-chassis resting on the
foam shipping blocks as shown below.

Remove the protective bag from around the sub-chassis, remove the styrofoam support blocks then
remove the plastic bag from around the acrylic plinth.

Remove and set aside the suspension tower modules (i.e. the suspension housing, the spring and all
related parts).

Level the plinth by turning the adjustable feet below the acrylic base. Since this is only a preliminary
adjustement you can use the 3 foam blocks to establish a parralell plane between the sub-chassis and
the acrylic base. Then, use the sub-chassis spirit level as a reference to adjust the feet. This operation is
preferable to ensure that you obtain accurate readings when you do the different adjustements that will
follow. A final levelling of the adjustable feet will be necessary when you position your Oracle Delphi MkVI
Second Generation in its final environment.

Carefully guide the inner platter hub's spindle vertically in its holder. Carefuly and gently deposit the main
platter guiding it slowly to rest over the platter hub.

Place the tonearm mounting board loosely in the sub-chassis mounting ring and determine the correct
distance and direction to mount the arm to the arm board.

First mount the tonearm to the pre-cut aluminum board.

Properly secure the tone arm mounting hardware.
