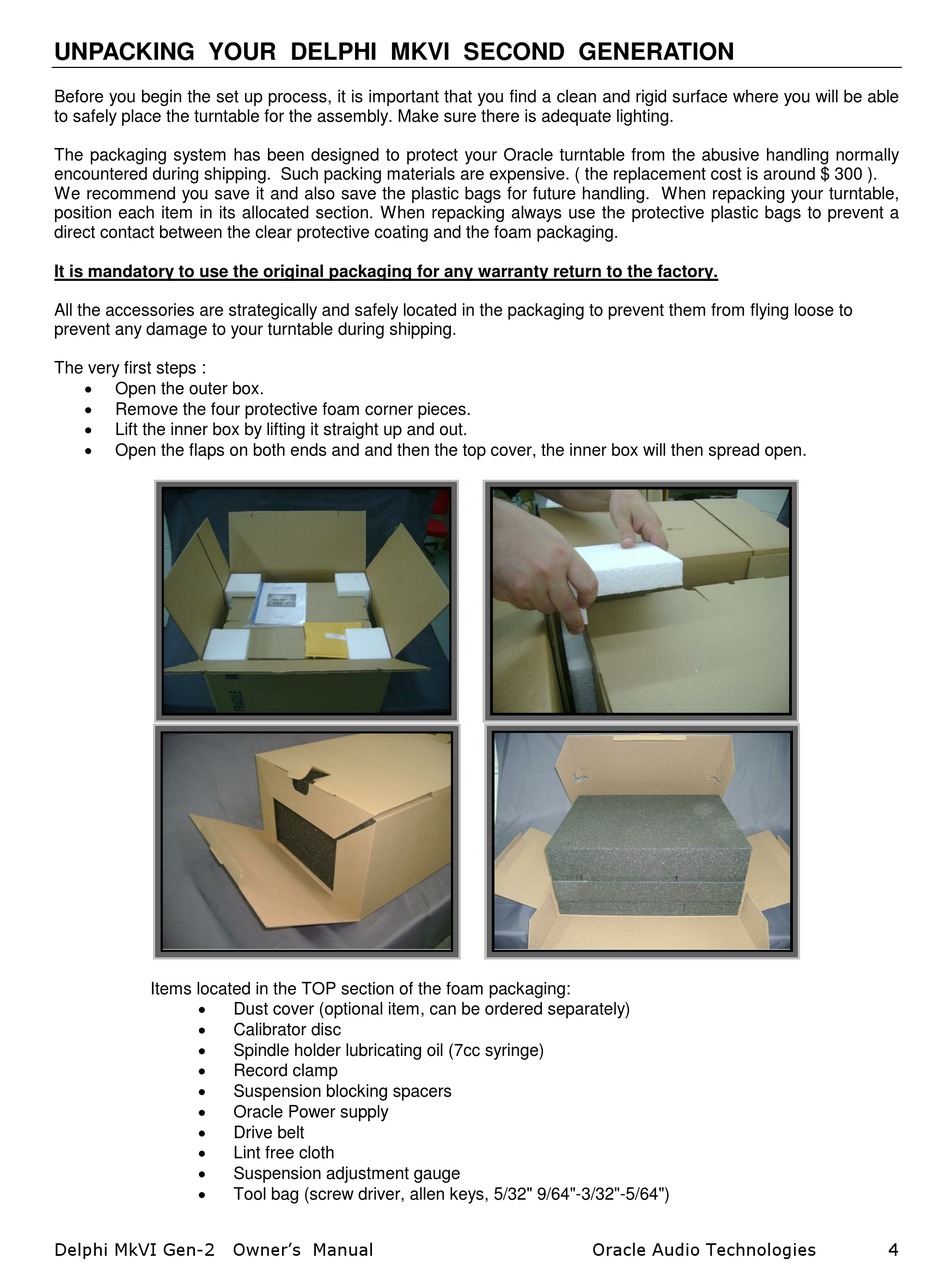

UNPACKING YOUR DELPHI MKVI SECOND GENERATION

Before you begin the set up process, it is important that you find a clean and rigid surface where you will be able
to safely place the turntable for the assembly. Make sure there is adequate lighting.
The packaging system has been designed to protect your Oracle turntable from the abusive handling normally
encountered during shipping. Such packing materials are expensive. ( the replacement cost is around $ 300 ).
We recommend you save it and also save the plastic bags for future handling. When repacking your turntable,
position each item in its allocated section. When repacking always use the protective plastic bags to prevent a
direct contact between the clear protective coating and the foam packaging.
It is mandatory to use the original packaging for any warranty return to the factory.
All the accessories are strategically and safely located in the packaging to prevent them from flying loose to
prevent any damage to your turntable during shipping.
The very first steps :

Open the outer box.

Remove the four protective foam corner pieces.

Lift the inner box by lifting it straight up and out.

Open the flaps on both ends and and then the top cover, the inner box will then spread open.
Items located in the TOP section of the foam packaging:

Dust cover (optional item, can be ordered separately)

Calibrator disc

Spindle holder lubricating oil (7cc syringe)

Record clamp

Suspension blocking spacers

Oracle Power supply

Drive belt

Lint free cloth

Suspension adjustment gauge

Tool bag (screw driver, allen keys, 5/32" 9/64"-3/32"-5/64")
Delphi MkVI Gen-2 Owner's Manual Oracle Audio Technologies 4
