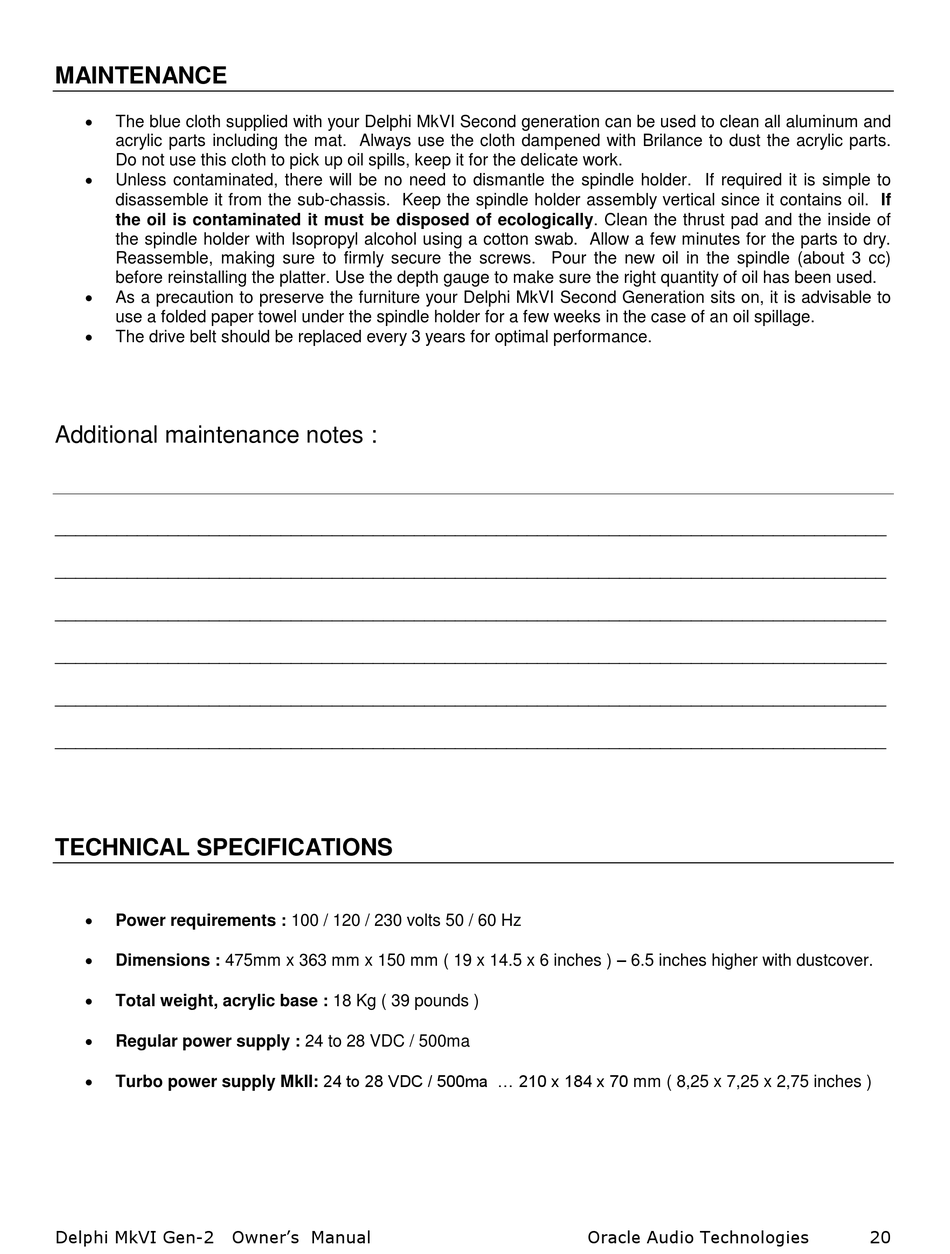

MAINTENANCE


The blue cloth supplied with your Delphi MkVI Second generation can be used to clean all aluminum and
acrylic parts including the mat. Always use the cloth dampened with Brilance to dust the acrylic parts.
Do not use this cloth to pick up oil spills, keep it for the delicate work.

Unless contaminated, there will be no need to dismantle the spindle holder. If required it is simple to
disassemble it from the sub-chassis. Keep the spindle holder assembly vertical since it contains oil. If
the oil is contaminated it must be disposed of ecologically. Clean the thrust pad and the inside of
the spindle holder with Isopropyl alcohol using a cotton swab. Allow a few minutes for the parts to dry.
Reassemble, making sure to firmly secure the screws. Pour the new oil in the spindle (about 3 cc)
before reinstalling the platter. Use the depth gauge to make sure the right quantity of oil has been used.

As a precaution to preserve the furniture your Delphi MkVI Second Generation sits on, it is advisable to
use a folded paper towel under the spindle holder for a few weeks in the case of an oil spillage.

The drive belt should be replaced every 3 years for optimal performance.
Additional maintenance notes :
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________

TECHNICAL SPECIFICATIONS


Power requirements : 100 / 120 / 230 volts 50 / 60 Hz

Dimensions : 475mm x 363 mm x 150 mm ( 19 x 14.5 x 6 inches ) – 6.5 inches higher with dustcover.

Total weight, acrylic base : 18 Kg ( 39 pounds )

Regular power supply : 24 to 28 VDC / 500ma

Turbo power supply MkII: 24 to 28 VDC / 500ma ... 210 x 184 x 70 mm ( 8,25 x 7,25 x 2,75 inches )
