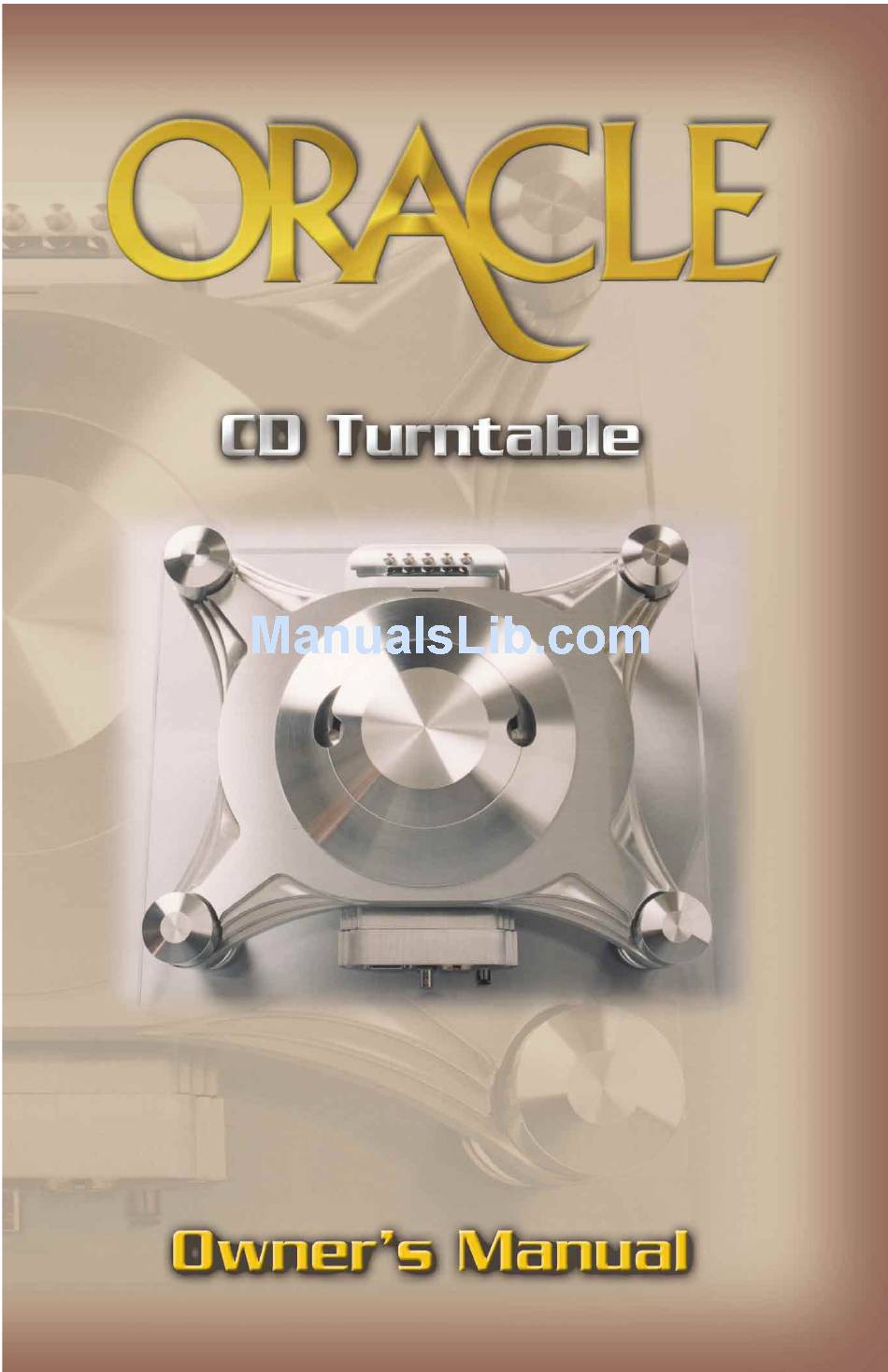

Oracle Audio CD turntable Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD turntable and is the answer not in the manual?

Questions and answers

Related Manuals for Oracle Audio CD turntable

Summary of Contents for Oracle Audio CD turntable

  • Page 2: Table Of Contents

    L a s e r L en s Cl e ani n g Fus e R ep la cem en t WARNING Please note that your Oracle CD turntable does not contain any user serviceable parts. Always consult an Oracle qualified service technician.
  • Page 3 - a double layer cardboard box, - a module of foam packaging for the accessories, - a wooden frame with internal foam packing, protecting the CD turntable itself. It is very important to preserve this packaging material since it is the only really safe method of transporting your Oracle CD turntable.

  • Page 4: Unpacking

    Unpacking TOOL NEEDED - Phillips (cross head) or Pozidrive screw driver - Small needle nose pliers • Open the external box • Carefully remove the 4 white foam protection corners • Turn the brown box on its side so you can pull out the white internal cardboard box •...
  • Page 5 Oracle player unit out of the box • Open the plastic bag at one end only and remove the foam protective end cap • Hold the plinth and slide the CD turntable assembly out of the bag • Remove the «C» shape, hold down spacer block •...

  • Page 6: Suspension Fine Tuning

    Commerciale A.C.I. Inc. or your local area distributor. This work should always be carried out by an experienced and competent technician. • Place your Oracle CD player on a flat surface to complete the set up procedure. Suspension Fine Tuning...
  • Page 7 NOTE this could damage the clear lacquer finish. IMPORTANT In the unlikely event that your Oracle suspension system may need to be completely recalibrated please refer to the caution on the preceeding page. • When all suspension towers are fine tuned, install the suspension covers...

  • Page 8: Connection Procedure

    Interconnect cable available, your dealer will help you make the right choice. CD Player Your Oracle CD Player is equipped with both an Analogue (pair) and a Digital output. • BNC, output of 0,5 volt peak to peak @ 75 Ohms • RCA analog output, •...
  • Page 9 Connection Procedure Connection to the Pre-Amplifier, CD input • Connect your pair of RCA terminated Analogue Interconnect cables from the rear of the player to your pre-amplifier Digital input ( CD input ) Analogue RCA 15 pin DC Input Outputs Digital Output NOTE It is not necessary to use digital output unless connecting...

  • Page 10: Power Supply Connection

    Power Supply Connection • Connect the 15 pin DC signal cable to the rear of the CD turntable and secure it with the two locking thumb screws • Connect the other end to the power supply and secure it as above...
  • Page 11 Urethane vibration damping trap and the compact disc Maintenance Your Oracle player is equipped with a very efficient magnetic clamp. One of the key features of this clamp is the proprietary Urethane compound ring that acts as a vibration damping trap.
  • Page 12 « No Disc » message. 2. To start playing a CD : remove the aluminium top cover ; select the CD you wish to play and place it on the CD turntable. Install the magnetic clamp and replace the top cover.

  • Page 13: Operation Instructions

    Operation Instructions • Place a compact disc over the centering device of your CD turntable • Position the magnetic disc clamp over the centering device and make sure it is well seated • Very carefully seat the aluminium top cover over the compact disc in its specially machined recess and position it so the two finger slots match the ones on the player main chassis.

  • Page 14: R E Mo T E C O Ntro L

    Remote Control Operation For your convenience and to increase ease of use, your new Oracle CD Player/Drive is supplied with an Infra-red remote control facility. To enable you to reap the benefit of this facility please spend a few minutes read- ing these simple instructions.
  • Page 15 Remote Control Operation FUNCTION KEY WHAT IS DOES & HOW TO DO IT •Scan Button• This button permits you to a CD to find a particu- SCAN lar track. this button once and it plays the first ( SCAN ) PRESS few seconds of every track in numeric order.
  • Page 16 Remote Control Operation FUNCTION KEY WHAT IS DOES & HOW TO DO IT This button allows you to repeat a section of a track or •A/B Button• the CD. To do this, listen for the starting point of the ( A / B ) section you want to repeat and button once.
  • Page 17 ( STOP ) disc. It also cancels all programmed functions and en- ables the current disc to be removed. The CD turntable is now ready to accept another disc, or to be switched off at the end of the current listening session.
  • Page 18 Routine Cleaning of the Laser Lens WARNING Extreme care is required when carrying out this procedure, the drive and lens mechanisms are extremely delicate. Routine Cleaning Cleanliness is essential in order to maintain optimum performance. Routine cleaning of the laser lens should be carried out weekly in the following way : 1.

  • Page 19: Fuse Replacement

    Fuse Replacement If the power supply is connected to the line source and the switch is in the ( ON ) position the red «L.E.D. » located at the front of the unit will glow. If it does not glow make sure the line signal coming from the wall outlet is operational. If everything is normal, follow the procedure below to proceed to the replacement of the line input fuse.
  • Page 20 S herbrooke Q C - C anada - J1 L 2S6 Tel . : 8 19-5 7 3-5 488 Fa x : 819-5 73 -0 15 4 eM ai l : oracl e.a u dio sympat ic o . c a Authorized Oracle Distributor...
