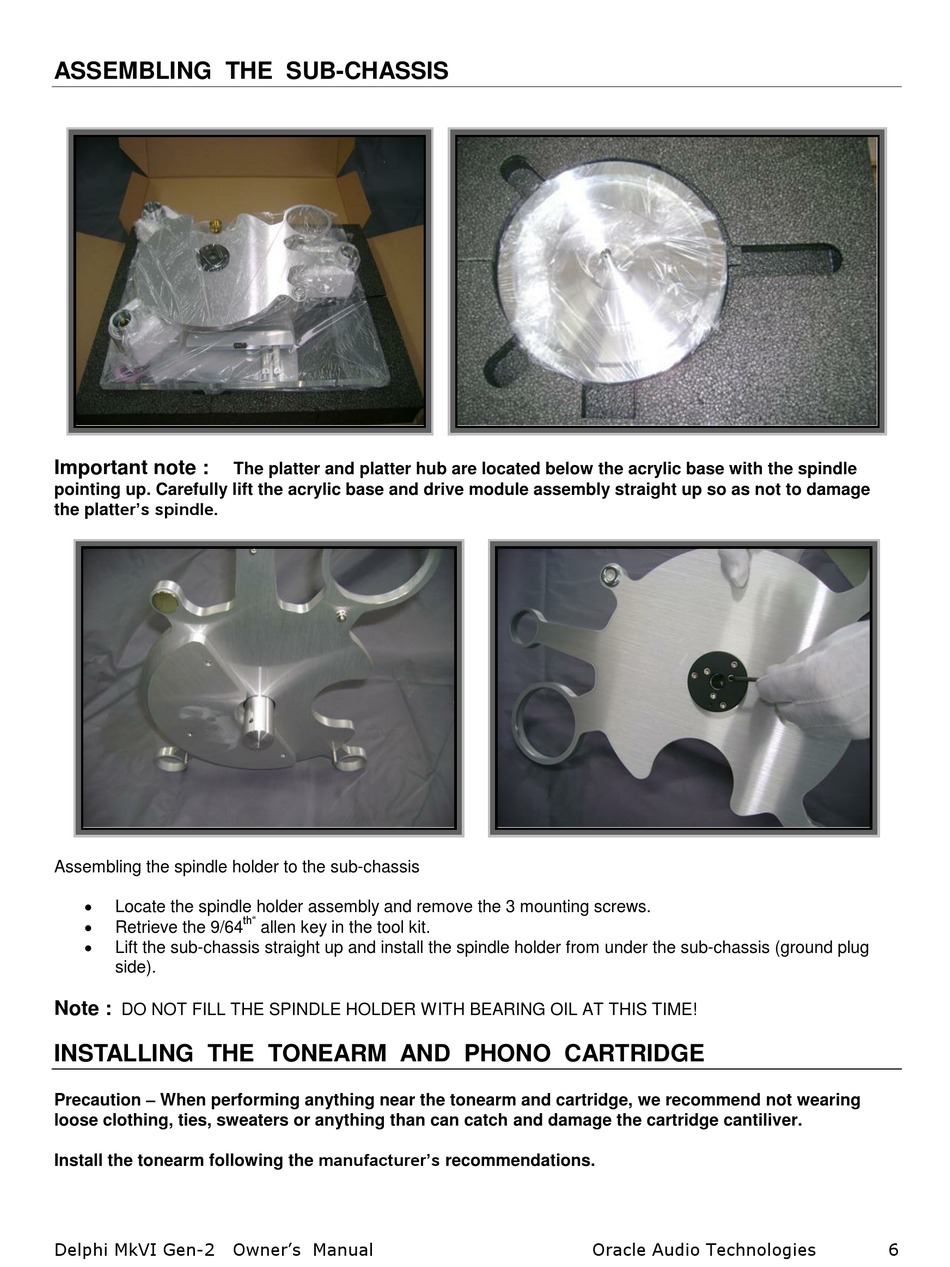

ASSEMBLING THE SUB-CHASSIS

Important note :
The platter and platter hub are located below the acrylic base with the spindle
pointing up. Carefully lift the acrylic base and drive module assembly straight up so as not to damage
the platter's spindle.
Assembling the spindle holder to the sub-chassis

Locate the spindle holder assembly and remove the 3 mounting screws.

Retrieve the 9/64

Lift the sub-chassis straight up and install the spindle holder from under the sub-chassis (ground plug
side).
Note :
DO NOT FILL THE SPINDLE HOLDER WITH BEARING OIL AT THIS TIME!

INSTALLING THE TONEARM AND PHONO CARTRIDGE

Precaution – When performing anything near the tonearm and cartridge, we recommend not wearing
loose clothing, ties, sweaters or anything than can catch and damage the cartridge cantiliver.
Install the tonearm following the manufacturer's recommendations.
