Summary of Contents for Elba HC60PCIEX1
-

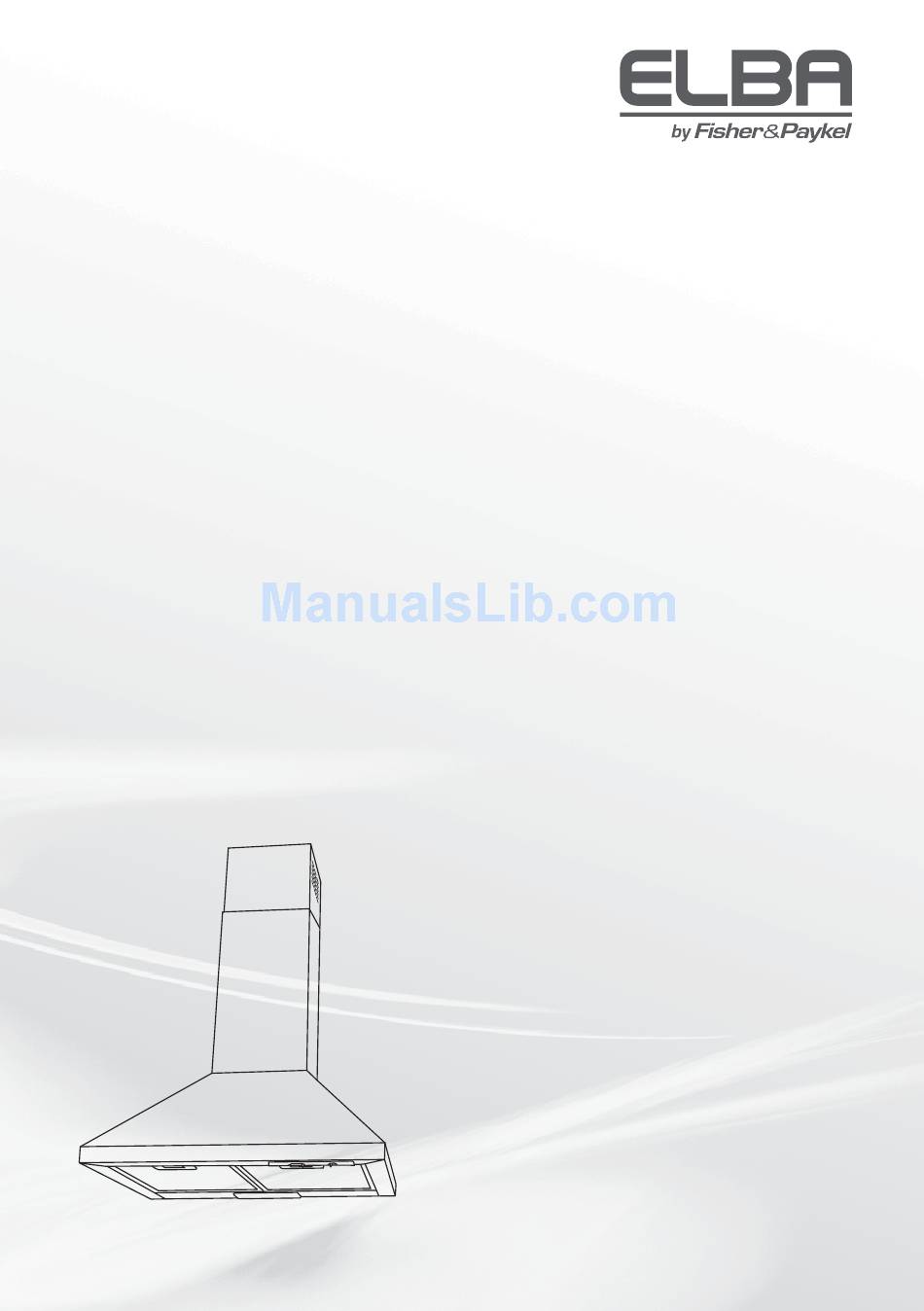

Page 1: Installation Instructions
Installation instructions User guide Wall canopy HC60PCIEX1 and HC90PCIEX1 models... -
Page 3: Table Of Contents
The models shown in this User Guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Elba dealer. -
Page 4: Safety And Warnings
Safety and warnings Important! Please read the entire set of instructions before installing the wall canopy. This wall canopy is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the wall canopy. There must be adequate ventilation of the room when the wall canopy is used at the same time as appliances burning gas or other fuels. -
Page 5: Installation Instructions
1 x wall canopy 2 x chimney flues with bracket 1 x installation instructions 2 x aluminium mesh filters (HC60PCIEX1) 3 x aluminium mesh filters (HC90PCIEX1) 2 x butterfly flaps 6 x small screws, to secure chimney flue (2 x spare) 5 x 8 x 1½”... - Page 6 Installation instructions Height of wall canopy Where an electric cooktop is installed beneath the wall canopy, the distance between the top of the cooktop and the underside of the range hood must be a minimum of 600 mm and a maximum of 700 mm.
- Page 7 Installation instructions Preparing the wall canopy for installation Before installing the wall canopy, please carefully read through the installation instructions in full. Prior to drilling any holes, check that the area behind the surface to be drilled is clear of any electrical cables or pipes etc.
- Page 8 Installation instructions Establish the desired height of the rangehood above the benchtop according to the ‘Installation height requirements’ above. Measure this distance from the top of the benchtop and, using a spirit level, draw 60 – 75 cm a light horizontal line on the wall. Make sure that the line can easily be erased or will be hidden after installation.
- Page 9 Installation instructions Drill holes and secure the rangehood to the wall. Depending on the wall type (concrete, 290 mm drywall etc) drill/screw appropriate fittings in the two locations just marked. The rangehood should now be able to be hung on these bolts/ screws through the two keyholes in the hood.
-
Page 10: Getting Started Quickly
Getting started quickly Control panel Fig.7 Slide control 3 = Fan On / High 2 = Fan On / Medium 1 = Fan On / Low 0 = Fan Off 1 = Lights On 0 = Lights Off... -
Page 11: Cleaning And Maintenance
Cleaning and maintenance Caution! Never use abrasive or oil based liquid cleaners. General maintenance The manufacturer is not liable for any damage caused by not following these instructions. The wall canopy should be cleaned regularly using warm water with soap or mild liquid detergents. - Page 12 Cleaning and maintenance Light bulb replacement (Screw-in 230V/Max 25W) Switch off the power to the wall canopy. Remove the aluminium mesh filters (or charcoal filters if fitted). Unscrew the old bulb, and screw in the new replacement bulb. Refit aluminium mesh, or charcoal filters.
-
Page 13: Manufacturer's Warranty
Manufacturer’s warranty When you purchase any new Fisher & Paykel wall canopy you automatically receive a two year Manufacturer’s Warranty covering parts and labour for servicing. Fisher & Paykel undertakes to Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS from the date of purchase. -
Page 14: Customer Care
Customer care Check the things you can do yourself. Refer to your User Guide and check: Your appliance is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to your nearest Authorised Service Centre, or contact us through our local website listed on the back cover. - Page 16 Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available. www.elba.com.au Wall canopy Installation instructions and user guide Published: 12/2008 Part No. 791800...
