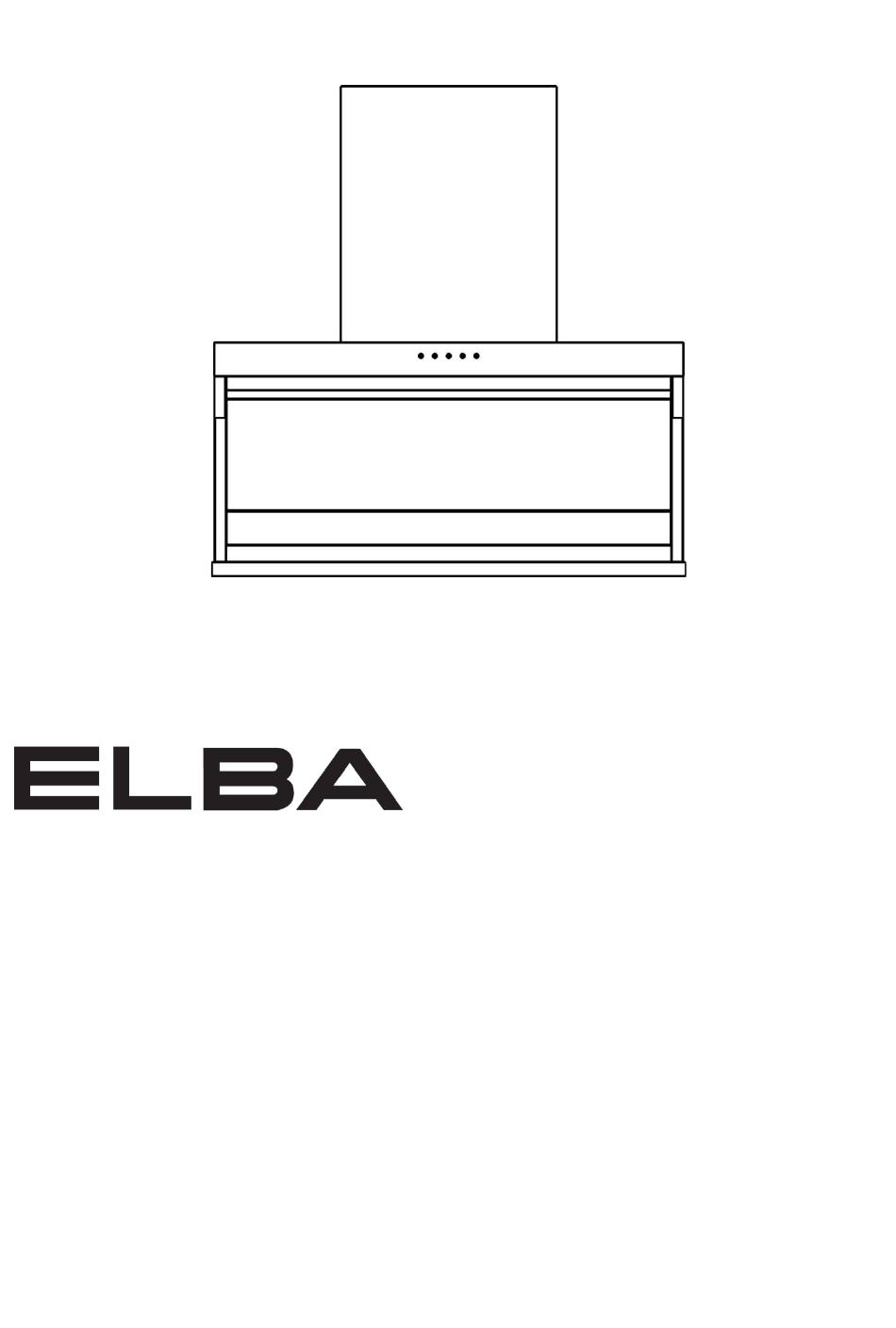

DESIGNER HOOD
MODEL: EH-Q9327ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elba EH-Q9327ST
Summary of Contents for Elba EH-Q9327ST
- Page 1 DESIGNER HOOD MODEL: EH-Q9327ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Safety Precautions
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2. - Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation: • Installation of cooker hood must be carried out by an authorized or qualified technician. • Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. •...
- Page 4 • Drill 4 holes with diameter of Ø8mm and 60mm deep. Insert the screw anchors into the holes. Fix the mounting bracket and tighten the screws. • Remove the horizontal oil cup. Hang the cooker hood on the mounting bracket and make sure the cooker hood is in level.
-
Page 5: Product Descriptions
PRODUCT DESCRIPTIONS Low Speed Control – Press to operate cooker hood in low fan speed. Medium Speed Control – Press to operate cooker hood in medium fan speed. High Speed Control – Press to operate cooker hood in high fan speed. Press and hold for 3 seconds to activate the heat cleaning function. - Page 6 OPERATING INSTRUCTIONS 1 Press the button and press the button to operate the cooker hood in low fan speed. Press the button to operate the cooker hood at medium fan speed. Press button to operate the cooker hood at high fan speed. 2 When the motor is running in low, medium or high fan speed, press button to schedule three minutes delay timer to turn off the cooker hood.
-
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE • The cooker hood must always be disconnected from the electricity supply before carrying out any maintenance. • Clean the cooker hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the cooker hood. •... -
Page 8: Troubleshooting
REPLACING THE LIGHT BULB • Disconnect the power supply, slightly insert the screwdriver at the edge of the LED light and pry downward to take out the LED light (5W). • Disconnect the connecting cable of LED light (5W) and replace a new LED light unit (5W). -
Page 9: Product Size
PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to save natural resources and make sure the product is disposed in an environmental friendly and healthy way.
