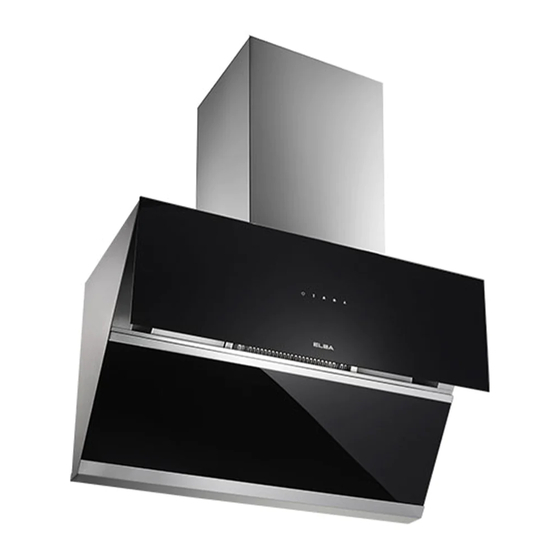

DESIGNER HOOD
MODEL: EH-N9125ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Table of Contents
Related Manuals for Elba EH-N9125ST
Summary of Contents for Elba EH-N9125ST

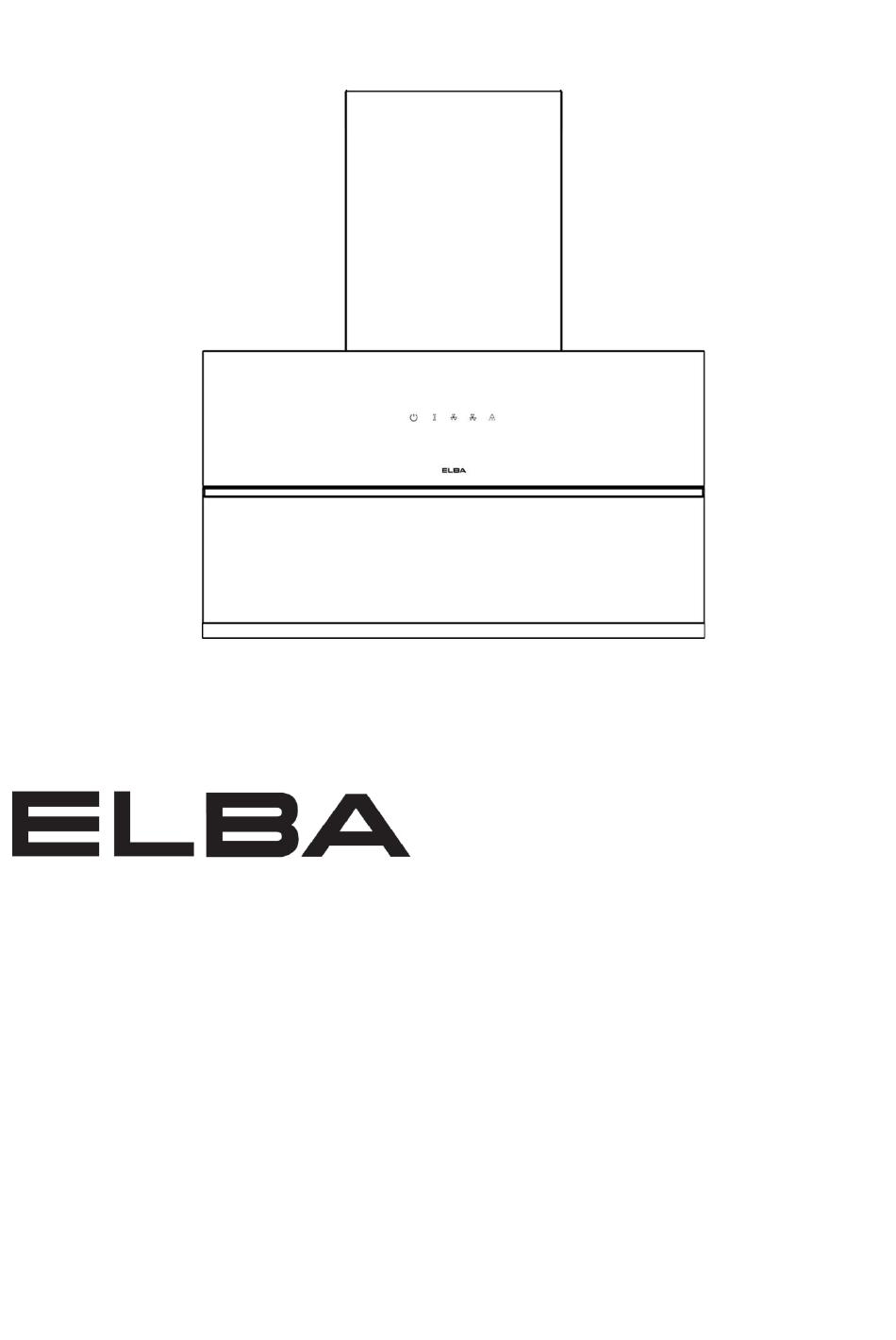

- Page 1 DESIGNER HOOD MODEL: EH-N9125ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Safety Precautions
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2. - Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation: • Installation of cooker hood must be carried out by an authorized or qualified technician. • Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. •...
- Page 4 • Drill 4 holes with diameter of Ø8mm and 60mm deep. Insert the screw anchors into the holes. Fix the mounting bracket and tighten the screws. • Remove the horizontal oil cup. Hang the cooker hood on the mounting bracket and make sure the cooker hood is in level.
- Page 5 • Loosen two screws and remove the filter. • Loosen two screws around the air inlet ring and install the charcoal filter. • After that, install the parts according to the steps mentioned above.
-
Page 6: Product Descriptions
PRODUCT DESCRIPTIONS 1 Switch/Delay Off Function – To switch the cooker hood to standby mode and turn off the cooker hood. Press this button during operation to schedule three minute delay timer to turn off the cooker hood. 2 Low Fan Speed – To operate at low fan speed. 3 High Fan Speed –... - Page 7 OPERATING INSTRUCTIONS 1 Press the button and press the button to operate the cooker hood in low speed. Press the button to operate the cooker hood in high speed. Press the button to operate the cooker hood in turbo speed. This function will revert to high speed after three minute.
-
Page 8: Cleaning And Maintenance
CLEANING AND MAINTENANCE • The cooker hood must always be disconnected from the electricity supply before carrying out the maintenance. • Clean the cooker hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the cooker hood. •... - Page 9 • Loosen the screws on the charcoal filter and then take it out. • Loosen the screws on the air inlet ring and then take it out. • Turn the locking nut in clockwise direction to take out the impeller for cleaning. •...
-
Page 10: Troubleshooting
TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far between Lower down the cooker hood the cooker hood and cooking installation height but within the safety Weak Suction appliance guideline Strong convection due to too Shut off some of the windows or doors much ventilation The power supply is not Check if the plug is well connected... -
Page 11: Main Specification
MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz LED Light : 4W x 1 Suction Power : 1,600m³/hr Motor Power : 250W Product Dimension : 896mm (W) x 976-1256mm (H) x 431mm (D) PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.
