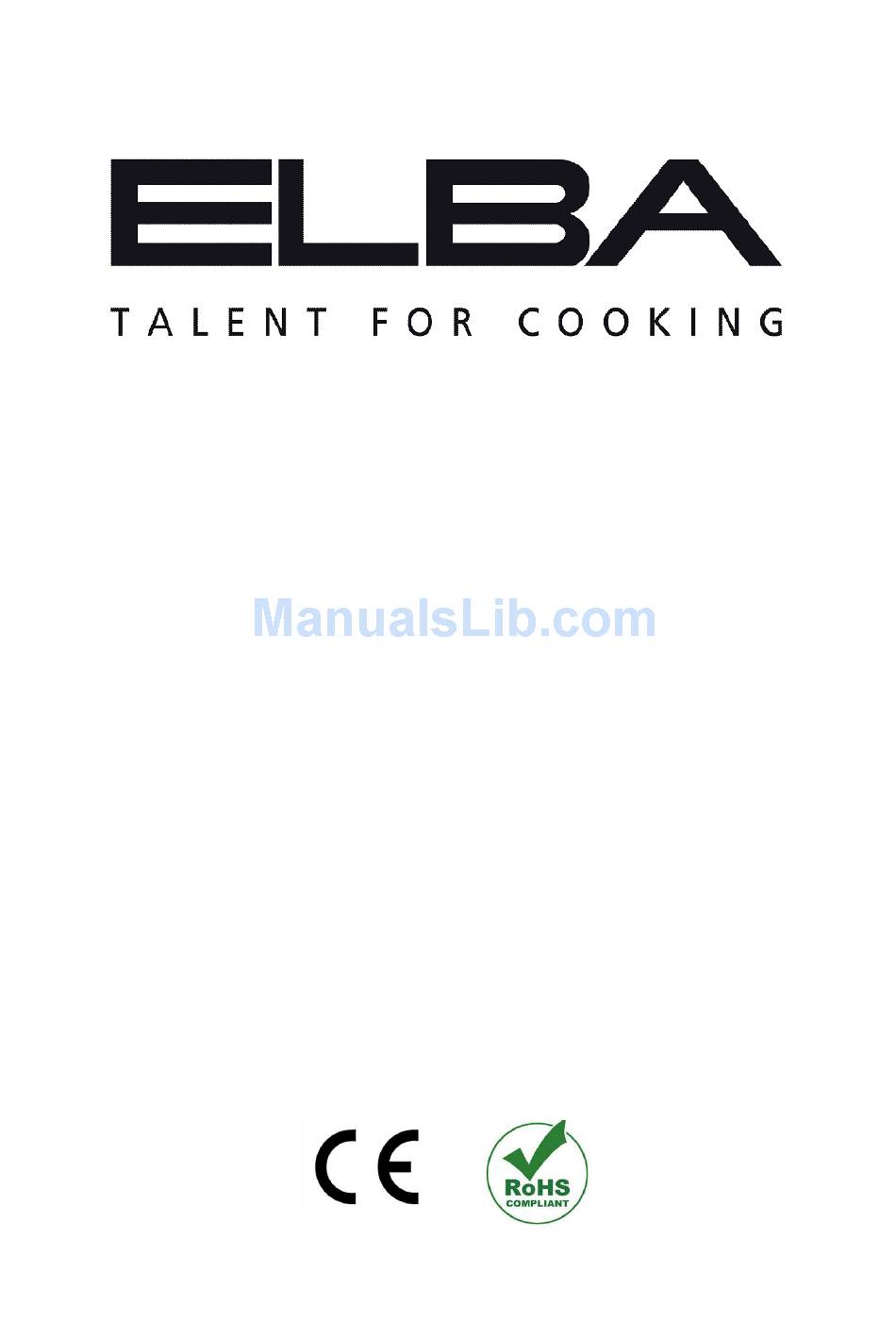

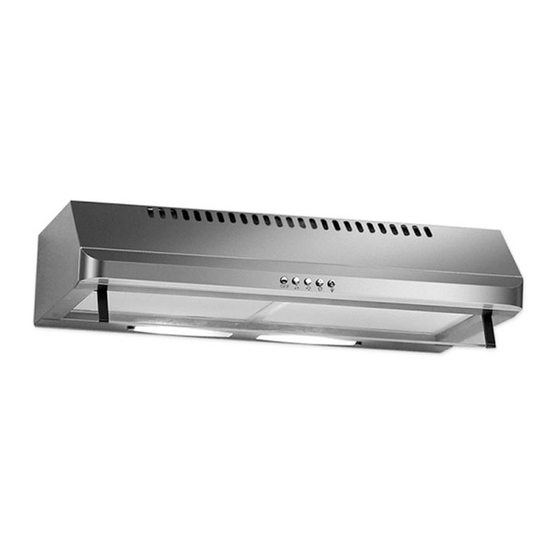

- Page 1 RH Series Range Hood (RH-601 X / RH-602 X) (RH-901 X / RH-902 X) Installation Guide Operation Manual...
- Page 2 The manufacturer will not be held liable for any damages resulting from improper installation and/or misuse of the product. Installation must be carried out by a qualified and authorized ELBA Service Technician. Failure to do so can void the warranty of this product.
- Page 3 INSTALLATION Important Notes: The hood should be placed at a distance of at least 65 cm from the cooking surface for maximum performance. The exhaust pipe should have a minimum diameter of 120 millimeters (mm) Ventilation Settings: Recycling / Indoor Air Ventilation: Turn the adjuster to recycling position. Install the cover on the air outlet on top of the hood.
- Page 4 Installation Method A – Wall Mount 1. Center the unit in the area of installation and cut a hole with a diameter of 120mm for the exhaust pipe in a ducted installation. (For recycling function installation, the 120mm hole is not required) 2.
-
Page 5: Cleaning And Maintenance
OPERATION Controls The switch is operated as illustrated. “ ”, press to turn off “I”, press to activate speed setting 1 “II” press to activate speed setting 2 “III”, press to activate speed setting 3 “ ”, press to turn on, depress to turn off CLEANING AND MAINTENANCE Incandescent Bulbs... - Page 6 Aluminum Filters This unit comes equipped with removable aluminum filters that are to be cleaned on a regular basis in order to maintain the performance and longevity of the hood. Instruction: To remove the filters, press the clip located at the front, pull down the filters, and release the clip.
