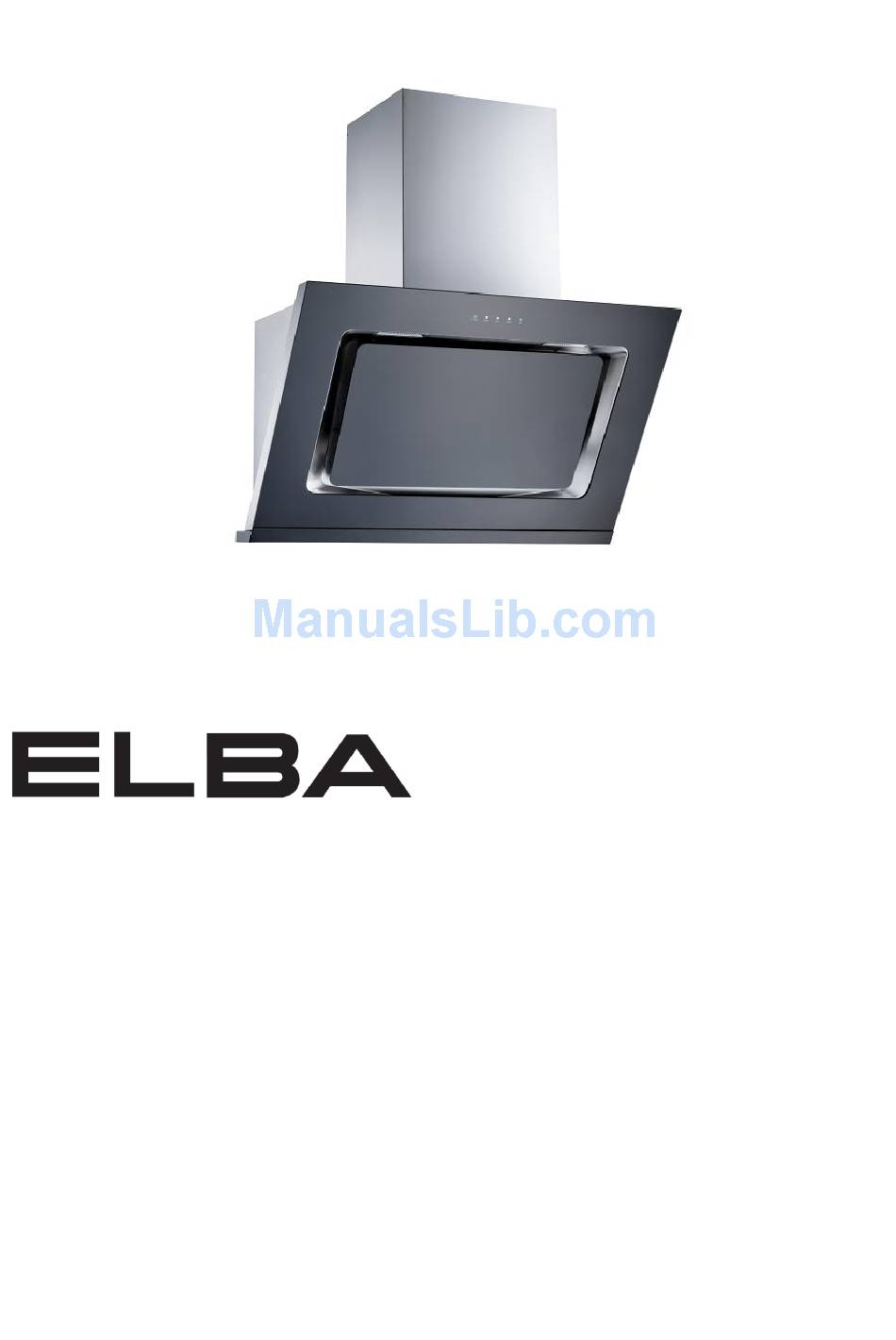

DESIGNER HOOD
MODEL: EH-E9122ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
1
Advertisement
Table of Contents
Related Manuals for Elba EH-E9122ST(BK)
Summary of Contents for Elba EH-E9122ST(BK)
- Page 1 DESIGNER HOOD MODEL: EH-E9122ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Safety Precautions
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2. -
Page 3: Assembly Instructions
ASSEMBLY INSTRUCTIONS Please check the following before installation: Installation of hood must be carried out by an authorized or qualified technician. Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. ... -
Page 4: Product Descriptions
PRODUCT DESCRIPTIONS 1 Switch/Delay Function – To switch the cooker hood to standby mode and turn off the cooker hood. Press this button during operation to schedule three minute delay timer to turn off the cooker hood. 2 Low Fan Speed – Press this button to operate low fan speed. 3 High Fan Speed –... -
Page 5: Cleaning And Maintenance
CLEANING AND MAINTENANCE The hood must always be disconnected from the electricity supply before carrying out the maintenance. Clean the hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the hood. ... -
Page 6: Troubleshooting
Turn the locknut in clockwise direction to take out the impeller. REPLACING THE LIGHT BULB Disconnect the power supply, push the panel upward with both hand to take down the panel slowly Slightly insert the screwdriver in the edge of the lamp and pry downward to take out the LED lamp (2W). -
Page 7: Main Specification
MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz LED Light : 2W x 2 Suction Power : 1,400m³/hr Motor Power : 250W Product Dimension : 898 mm (W) x 996-1343mm (H) x 428mm (D) PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.
