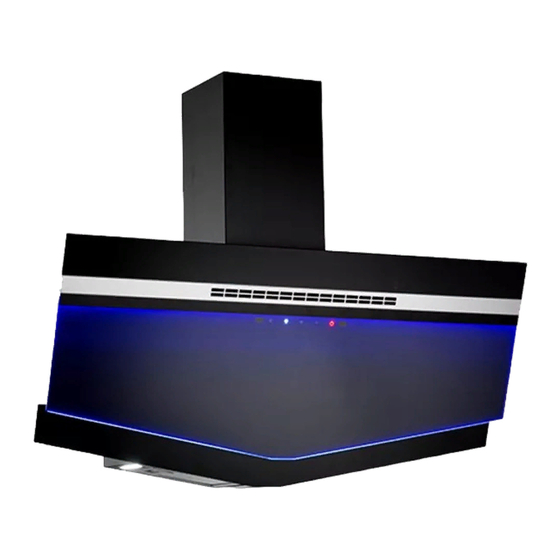

DESIGNER HOOD
MODEL: EH-M9138ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elba EH-M9138ST
Summary of Contents for Elba EH-M9138ST
- Page 1 DESIGNER HOOD MODEL: EH-M9138ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Safety Precautions
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2. - Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation: • Installation of cooker hood must be carried out by an authorized or qualified technician. • Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. •...
- Page 4 • Hang the cooker hood on the mounting bracket and make sure the cooker hood is in level. • Fix the exhaust ducting on the cooker hood. Install the oil cup on the cooker hood. • Install the exhaust cover to the height required. •...
- Page 5 NOTE: In order to ensure the well ventilation of Cool Breeze function, please ensure there is at least 30mm gap for ventilation. INSTALL THE CHARCOAL FILTER • Disconnect the power supply. Gently push the clip on the grease filter to eject and use both hands to remove it carefully (Please do not open while the cooker hood is operate or connecting the power supply).
- Page 6 • On the left side, install the charcoal filter and lock the position by turning anti-clockwise direction to tighten. • On the right side, Install the charcoal filter and lock the position by turning clockwise direction to tighten. • To remove the charcoal filter, reverse the direction on above direction to loosen.
-
Page 7: Product Descriptions
PRODUCT DESCRIPTIONS Cool Breeze – Press to activate the Cool Breeze function while cooking. The cooling fan will turn on. Press again to turn off this function. Blue Magic Light – Press to turn on the Blue Magic Light. Press again to turn off. High Speed Control –... - Page 8 OPERATING INSTRUCTIONS Press the button and press the button to operate the cooker hood in low fan speed. Press the button again to operate the cooker hood at medium fan speed. Press the button to operate the cooker hood at high fan speed. When the motor is running in low, medium or high fan speed, press button to schedule one minute delay timer to turn off the cooker hood.
-
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE • The cooker hood must always be disconnected from the electricity supply before carrying out any maintenance. • Clean the cooker hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the cooker hood. •... -
Page 10: Troubleshooting
TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far between Lower down the cooker hood the cooker hood and cooking installation height but within the safety Weak Suction appliance guideline Strong convection due to too Shut off some of the windows or doors much ventilation The power supply is not Check if the plug is well connected... -
Page 11: Main Specification
MAIN SPECIFICATION Rated Voltage : 220-240V~, 50/60Hz LED Light : 1.5W x 2 Suction Power : 1,400m³/hr Rated Power : 230W Product Dimension : 900mm (W) x 740-1,070mm (H) x 360mm (D) PRODUCT DIMENSION NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.
