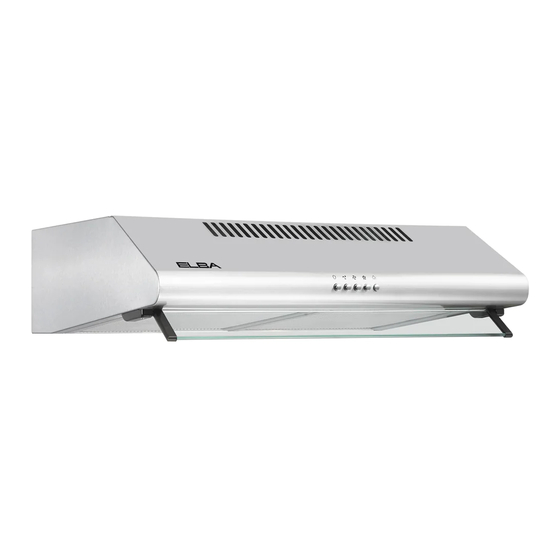

- Page 1 506A Series Range Hood Installation Guide Operation Manual...
- Page 2 The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. Installation must be carried out by a qualified and authorized ELBA Service Technician. The minimum safety distance between the cooktop and the range hood is 650 millimeters (mm).
- Page 3 INSTALLATION Important Notes: The hood should be placed at a distance of 65-75cm from the cooking surface for maximum performance. The exhaust pipe should have a minimum diameter of 120 millimeters (mm) Installation Method A – Wall Mount 1.
- Page 4 Installation Method B – Cabinet Mount 1. Drill six (6) Ø 4mm holes at the bottom of the hanging cupboard. 2. Put the one-way valve on the cooker hood, then install the hood on the bottom of the cupboard, tighten the hood with enclosed 6 screws. 3.
- Page 5 OPERATION Ventilation Settings Ducting / Outdoor Air Ventilation: Turn the adjuster to the outdoor position as seen in pic.5A. Install the outlet cover, turn on the cooker hood, then the air will be vented from the rear outlet. Recycling / Indoor Air Ventilation: Turn the adjuster to indoor position as seen in pic.5B.
- Page 6 CLEANING AND MAINTENANCE Aluminum Filters This unit comes equipped with removable aluminum filters that are to be cleaned on a regular basis in order to maintain the performance and longevity of the hood. Instruction: To remove the filters, press the clip located at the front, pull down the filters, and release the clip as seen in pic 7.
- Page 7 Incandescent Bulbs This unit comes equipped with standard incandescent bulbs. Instruction: To access the bulbs, removal of the aluminum filters is mandatory. Changing the Light Please make sure that the appliance is switched off during this step. 1. Remove the filters, press the clip located at the front, pull down the filters, and release the clip as seen in pic 7.
