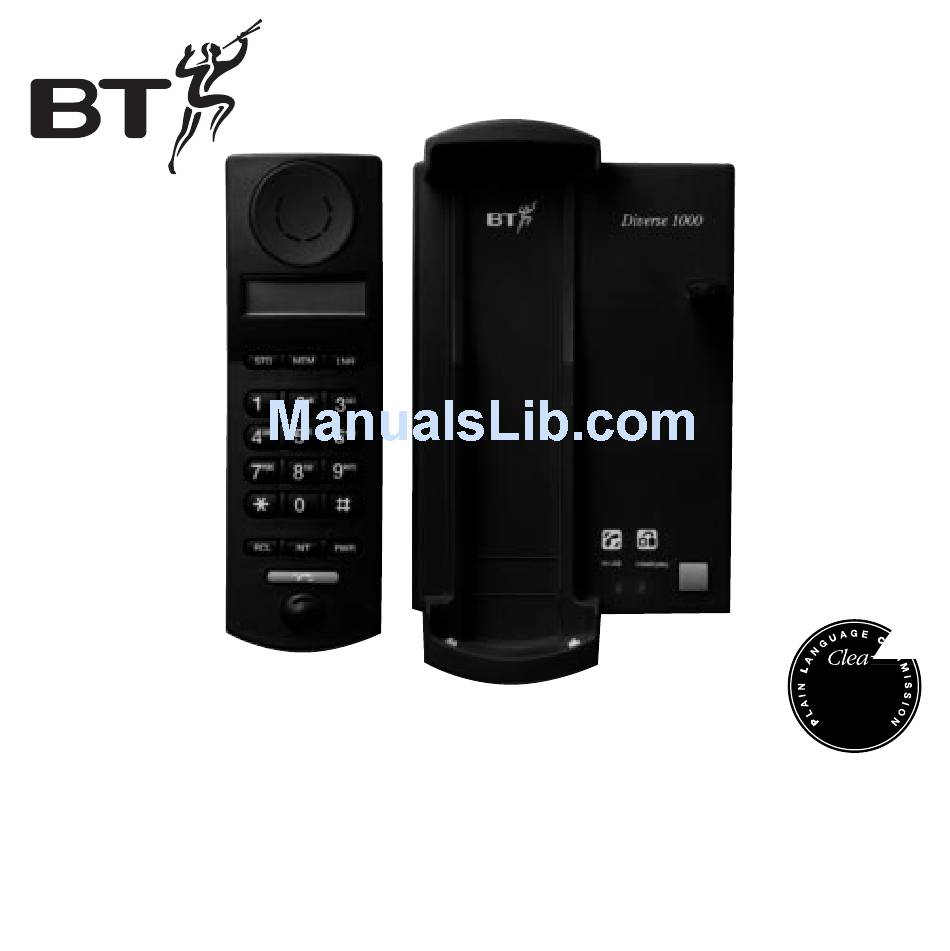

  • Page 1 Diverse 1010 telephone featuring DECT Digital Enhanced Cordless Telecommunications User guide...
  • Page 2 Please open this page for a further ‘at a glance’ guide to your Diverse 1010.

  • Page 3: At A Glance

    PQRS WXYZ Power Lets you switch the Recall handset on/off and select For use with switchboards the operating mode. and BT Select Services. Intercom Enables internal communication and call Phone Used to make and answer calls. transfer between handsets.
  • Page 4 Paging button Telephone line cord IN USE CHARGING Charging light On when handset In-use light battery is charging. Indicates an outside call is being made. Mains Power cord adaptor Handset battery charger Supplied only with the Diverse 1010 1+2 system.

  • Page 5: Table Of Contents

    Contents In this guide At a glance Introducing the Diverse 1010 Setting up Using your Diverse 1010 Additional features Using your Diverse 1010 with a PBX Registering a new Diverse handset with the base unit Operating with additional base unit...

  • Page 6: Introducing The Diverse 1010

    Introduction Introducing the Diverse 1010 Your Diverse 1010 is designed for ease of use and made to the high standards set by BT. We thank you for making the right choice and For your records expect that your Diverse 1010 will give you Date of purchase: many years of quality service.

  • Page 7: Setting Up

    Diverse from the mains power and telephone line socket during storms. 4 If you wear a hearing aid, please note that the Diverse 1010 works by sending radio signals between the base unit and handset. These signals can interfere with hearing aids, causing a humming noise.
  • Page 8 3 Connecting the optional The back-up box must be connected between back-up box your Diverse 1010 and the power adaptor. The battery back-up box is optional equipment and may be purchased from the Diverse Plug the back-up box power cord into •...

  • Page 9: Connecting The Power Cable

    5 Connecting the power cable 4 Mounting the back-up box Plug the power cable into the power socket on If required, you can mount your Diverse 1010 the underside of your Diverse 1010. Take care back-up box along your skirting board.

  • Page 10: Charging The Handset Batteries

    CHARGING When the handset battery has been charged for 16 hours, the Diverse 1010 is ready to use. Normal battery charging time After charging your Diverse 1010 for the first time, normal charging time for the handset batteries is approximately 4-5 hours.
  • Page 11 10 Setting the TONE or PULSE Press the button. • mode Press the # button. • Your Diverse 1010 is preset to TONE dialling – Press the button. • where you hear a tone beep each time you dial Enter the current system code. •...
  • Page 12 11 Using and changing the identification number) security code and handset PIN A PIN on your handset protects information, As a digital phone system, your Diverse 1010 such as numbers stored on the memory, from provides excellent security against others unauthorised access.

  • Page 13: Optional Settings

    Setting up 12 Optional settings To adjust the tone of the handset ringer There are six levels 1 = low, 6 = high. Factory To adjust the ringer volume in the handset setting is 1. There are six levels 1 = low, 6 = high. Factory setting is 6.
  • Page 14 Setting up To adjust the ‘confirmation’ tones To adjust the ‘settings confirmation’ tone Whenever you press a button on the phone you You will hear a confirmation tone each time will hear a confirmation beep. You can turn this you successfully complete a setting. You can sound on and off.
  • Page 15 Setting up To reset your Diverse 1010 base unit to To adjust the ‘range warning’ tone If you are on a call as you reach the limit of the original factory settings your handset’s range, you will hear a tone to...
  • Page 16 Setting up To reset your Diverse 1010 handset to the If you are experiencing problems, please call the original factory settings Diverse Helpline on 0345 908070. The handset must be switched ON. This will reset: Ringer volume Tone Battery warning tone...

  • Page 17: Using Your Diverse 1010

    Using your Diverse 1010 Using your Diverse 1010 ON/OFF and PROTECTED modes PROTECTED This setting stops you accidentally operating the handset’s keypad when carrying it around. The handset can be operated in one of three You can still receive incoming calls but cannot different modes.

  • Page 18: Making And Receiving Calls

    Using your Diverse 1010 Making and receiving calls To receive an external call When the phone rings the display flashes Press the button on the handset and PHONE To make an external call speak Ensure the handset is switched ON.

  • Page 19: Paging And Internal Calls

    To receive an internal call Paging and internal calls If you have multiple handsets registered with the base, the Diverse 1010 enables two handsets to talk When the handset rings, the display flashes • plus the number of the handset calling you –...
  • Page 20 Using your Diverse 1010 To transfer an external call between To put an outside caller on hold and speak handsets to another internal handset If you are in a conversation with an outside caller and want to transfer the call to another handset.
  • Page 21 # buttons. You can also enter a Continue to press and release the • ‘pause’ (see page 22, ‘Using your Diverse 1010 button to scroll through the memories. with a PBX’). Press the memory location number on the •...

  • Page 22: Additional Features

    If there is no answer, the call will ring in the same room, without your caller all other handsets. hearing the conversation. Instead your caller The factory setting for your Diverse 1010 is for hears a tone melody. collective ringing. Press the button to resume your •...
  • Page 23 To set which handset will receive ring To clear and reinstate handsets for priority collective ringing Once you have set your Diverse 1010 to ring The factory setting is for all handsets to be set priority mode (see opposite), you can select the for collective ringing.

  • Page 24: Using Your Diverse 1010 With A Pbx

    • You can enter up to three PBX access codes, each one to three digits long. • You may find it useful to enter 144 (for BT Chargecard access) as one of the access codes, together with an access pause of six seconds – see...
  • Page 25 Using your Diverse 1010 with a switchboard To put an outside call on hold and speak to Setting the access pause You can insert a pause or change the length of another, internal handset You can make a consultation call to a colleague a pause to suit different access codes.

  • Page 26: Registering A New Diverse Handset With The Base Unit

    Up to six handsets can be registered and At the handset: operated from the Diverse 1010 base unit. The system allows you to make internal intercom calls between two handsets while a third is making an external call.
  • Page 27 Registering a new Diverse handset with the base unit To remove a handset registered at the base unit PQRS Press the button. • Press the # button. • Press the then • Enter the system code. • (Factory setting 0000.) Display shows all handsets registered at •...

  • Page 28: Operating With Additional Base Unit

    1. Activate the display of the base unit numbers • To register additional Diverse 1010 handsets on each handset, see page 27. at more than one base unit You can use up to six handsets on each Diverse...
  • Page 29 Operating with additional base unit To set/clear the display of the base unit At the base unit: number on a handset The factory setting is to display the number. This is useful if your handset is connected to Press and hold down the green paging •...
  • Page 30 Operating with additional base unit To set your handset for automatic base To set your handset for manual base selection selection If you are moving around, and likely to lose You can select a base unit through which you contact with your base unit, your handset can want your handset to operate.

  • Page 31: Maintenance

    If you experience a problem with your Diverse 1010 base unit or handset you should contact the Diverse 1010 Helpline on 0345 908070. Calls are charged at local call rates. If the problem is not remedied, you will be advised to contact your original point of purchase.

  • Page 32: Help

    Recommended batteries should have a power rating of 600m Ah 1.2V. Batteries available from the Diverse helpline 0345 908070. If your Diverse 1010 is connected to a PBX, you may have to dial an access number before 999 to BT accepts no responsibility for damage contact the emergency services.
  • Page 33 To adjust the ringer volume at the handset, see page 11. If you are still experiencing difficulty, please call the Diverse 1010 Helpline on 0345 908070. Can’t get through, even though a dialling tone can be heard You may be set to the wrong signalling method.

  • Page 35: Technical Information

    Technical information Connecting to PBXs Diverse 1010 is only approved for use with a compatible PBX including those which do not provide secondary proceed indication. If you would like a list of suitable PBX’s, contact BT on 154. If you do have a compatible PBX, it...

  • Page 36: Technical Specification

    Technical information Technical specification DECT Standard 120 duplex channels Number of channels 1880 MHz to 1900 MHz Radio frequency range Time-division multiplexing. 10 ms frame length Duplex method 1728 kHz Channel grid 1152 kbit/s Bit rate GFSK Modulation 32 kbit/s Voice coding 10 mW, average output per channel Transmitted power...

  • Page 37: Index

    Base selection Optional settings Batteries Out of range warning back-up box Paging handset low warning PIN (Personal Identification Number) BT telephone socket Power cable Call timer Pulse setting Carrying clip Redial Charging the handset batteries Registering a new handset Collective ringing...
  • Page 39 Mounting template If mounting your Diverse 1010 back-up box, use this guide to position two 5mm drill holes 56mm apart.
  • Page 41 Offices in Europe, North America, Japan and Asia Pacific. The Telecommunications services described in this publication CE compliant to 89/336/EEC are subject to availability and may be modified from time to time. (EMC Directive) & 73/23/EEC (Low Services and equipment are provided subject to British Voltage Directive) Telecommunications plc’s respective standard conditions of contract.
