BT DIVERSE 1010 User Manual

BT DIVERSE 1010 User Manual

Handset for use with diverse 1010/1015 base units
Hide thumbs Also See for DIVERSE 1010:
Table of Contents

Advertisement

Quick Links

See also: User Manual

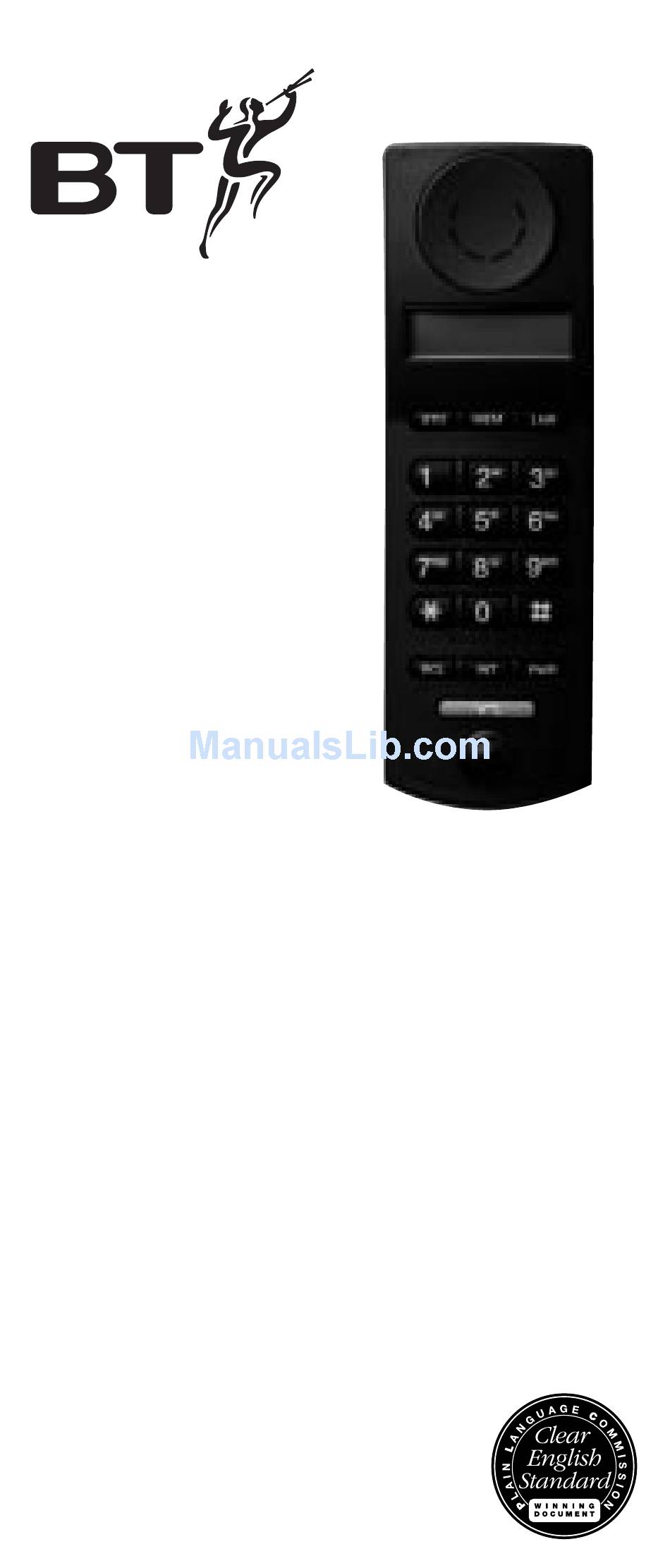

Diverse handset

for use with
Diverse 1010 / 1015
base units
featuring DECT
Digital Enhanced Cordless
Telecommunications
User guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIVERSE 1010 and is the answer not in the manual?

Questions and answers

Related Manuals for BT DIVERSE 1010

Summary of Contents for BT DIVERSE 1010

  • Page 1: Diverse Handset

    Diverse handset for use with Diverse 1010 / 1015 base units featuring DECT Digital Enhanced Cordless Telecommunications User guide...

  • Page 2: At A Glance

    Intercom Enables internal Recall communication and call For use with transfer between handsets. switchboards and BT Select Services. Power Lets you switch the Phone handset on/off and select Used to make and the operating mode. answer calls.

  • Page 3: Table Of Contents

    In this guide At a glance Introducing the Diverse handset Setting up Registering a new Diverse handset with the base unit Using the Diverse handset Using the Diverse handset with a PBX Operating with additional base units Maintenance Help Technical information Index Hints and tips boxes In this user guide, we've included helpful tips...

  • Page 4: Introducing The Diverse Handset

    The guide covers the basic features of the Diverse handset. For comprehensive instructions, see your main Diverse 1010 or 1015 user guide. DECT By purchasing your Diverse handset, you now own a product which combines the advantages of cordless operation with the performance of a high quality telephone.

  • Page 5: Setting Up

    Setting up Follow these steps to get your Diverse handset ready for use Warning 1 Use only approved nickel-cadmium (NiCad) rechargeable batteries. Never use other batteries or conventional alkaline batteries. Using such batteries could lead to a short circuit or destroy the battery casing. Recommended batteries should have a power rating of 600m Ah 1.2V.

  • Page 6: Charging The Handset Batteries

    3 Charging the handset batteries for at least 16 hours Before you use the handset, place it on the base unit or charging unit (available separately). The handset can be charged face up or down. Make sure that the contacts on the bottom end of the handset are touching both charging contacts.
  • Page 7 Setting the TONE or PULSE mode Your Diverse handset is preset to TONE dialling – where you hear a tone beep each time you dial a number. Tone dialling is suitable for all modern digital exchanges. If you cannot make a call with TONE dialling, you may need to switch to PULSE dialling.

  • Page 8: Registering A New Diverse Handset With The Base Unit

    Registering a new Diverse handset with the base unit Up to six handsets can be registered and operated from the Diverse handset base unit. The system allows you to make internal intercom calls between two handsets while a third is making an external call.
  • Page 9 To remove a handset registered at the base unit PQRS Press the button. • Press the button. • Press the then • Enter the system code. • (Factory setting 0000.) Display shows all handsets registered • at the base. Enter the number of the handset to be •...

  • Page 10: Outgoing Calls

    PROTECTED This setting stops you accidentally operating the handset’s keypad when carrying it around. You can still receive incoming calls but you cannot make outgoing calls. To switch to PROTECTED when the • handset is ON, press and release the button quickly.
  • Page 11 To end a call Press the button • PHONE Place the handset back on the base unit. • To receive an external call When the phone rings the display • flashes: . Press the PHONE button on the handset and speak. If the handset is on the base unit or •...
  • Page 12 To receive an internal call When the phone rings the display flashes and the number of the handset calling you (1-6) Either press the button or lift • PHONE the handset from the base unit or charging unit to answer the call. To make an internal call to all handsets You can call all handsets registered to •...
  • Page 13 To put an outside call on hold and speak to another internal handset Press the button. You hear the • internal dial tone and your outside caller is put on hold. Press the handset number you want, • 1-6. When the handset answers, you can talk without your outside caller hearing.
  • Page 14 To speed dial a number stored on the memory Press the button. You will hear • PHONE the dial tone. Display shows Press and release the button • twice, the number in memory one will be displayed. Continue to press and release the •...

  • Page 15: Using The Diverse Handset With A Pbx

    Using the Diverse handset with a Your Diverse handset can be connected to all compatible PBXs. For a list of suitable switchboards, phone the Diverse Helpline on 0345 908070. Entering access codes When you use your telephone on a PBX you may need to program a delay for switching calls through to external lines.
  • Page 16 Setting the access pause You can insert a pause or change the length of a pause to suit different access codes. Code PAUSE 0 2 4 1 second 0 2 5 2 second 0 2 0 3 second 0 2 1 6 second 2 5 3 To clear all...

  • Page 17: Operating With Additional Base Units

    Operating with additional base units When planning to use a handset at more than one base unit, it is recommended that you: • Assign a number to each base station, from 1 to 4. • Number each handset (1 to 6) registered at each base station.

  • Page 18: At The Handset

    At the handset: • Press and hold down the button number to specify the base unit 2, 3 number. • At the same time, hold down the button until the display shows. • Enter the handset system code. (Factory setting is 0000.) •...
  • Page 19 To set your handset for automatic base selection If you are moving around, and likely to lose contact with your base unit, your handset can be automatically switch to the first available base unit. If this is set and you are in the area where the signals of two base units are overlapping, your handset will select the strongest signal.

  • Page 20: Maintenance

    Maintenance Simply clean the handset with a damp cloth or an antistatic wipe. Never use a dry cloth as this may cause a static shock. Service Within the guarantee period If you experience a problem with your Diverse handset you should contact the Diverse Helpline on 0345 908070.

  • Page 21: Help

    Help Emergency Calls The emergency services can be contacted in the UK by dialling 999, or 112 which is valid in any country that is a member of the European Community. If your Diverse base unit is connected to a PBX, you may have to dial an access number before 999 to contact the emergency services.

  • Page 22: From The Handset

    You may be set to the wrong signalling method. To change between TONE and PULSE dialling. See Setting Up, page 10. If you have any difficulty getting replacement batteries, call the Diverse 1010 Helpline on 0345 908070. Handset beeps Are the handset batteries low? You will...

  • Page 23: Technical Information

    Technical information Environment Your Diverse handset should be kept free of dust, moisture, high temperature, vibration and should not be exposed to direct sunlight. Do not stand it on carpets or other surfaces which generate fibres or place it in locations which prevent the free flow of air over its surfaces.
  • Page 24 PBX including those which do not provide secondary proceed indication. If you would like a list of suitable PBXs, contact BT on 154. If you do have a compatible PBX it cannot be guaranteed that the telephone will operate correctly under all possible conditions of connection.
  • Page 25 CE compliant to 89/336/EEC (EMC Directive) & 73/23/EEC (Low Voltage Directive) APPROVED for connection to telecommunication systems specified in the instructions for use subject to the conditions set out in them 5 0 4 0 9 0 Offices in Europe, North America, Japan and Asia Pacific.
