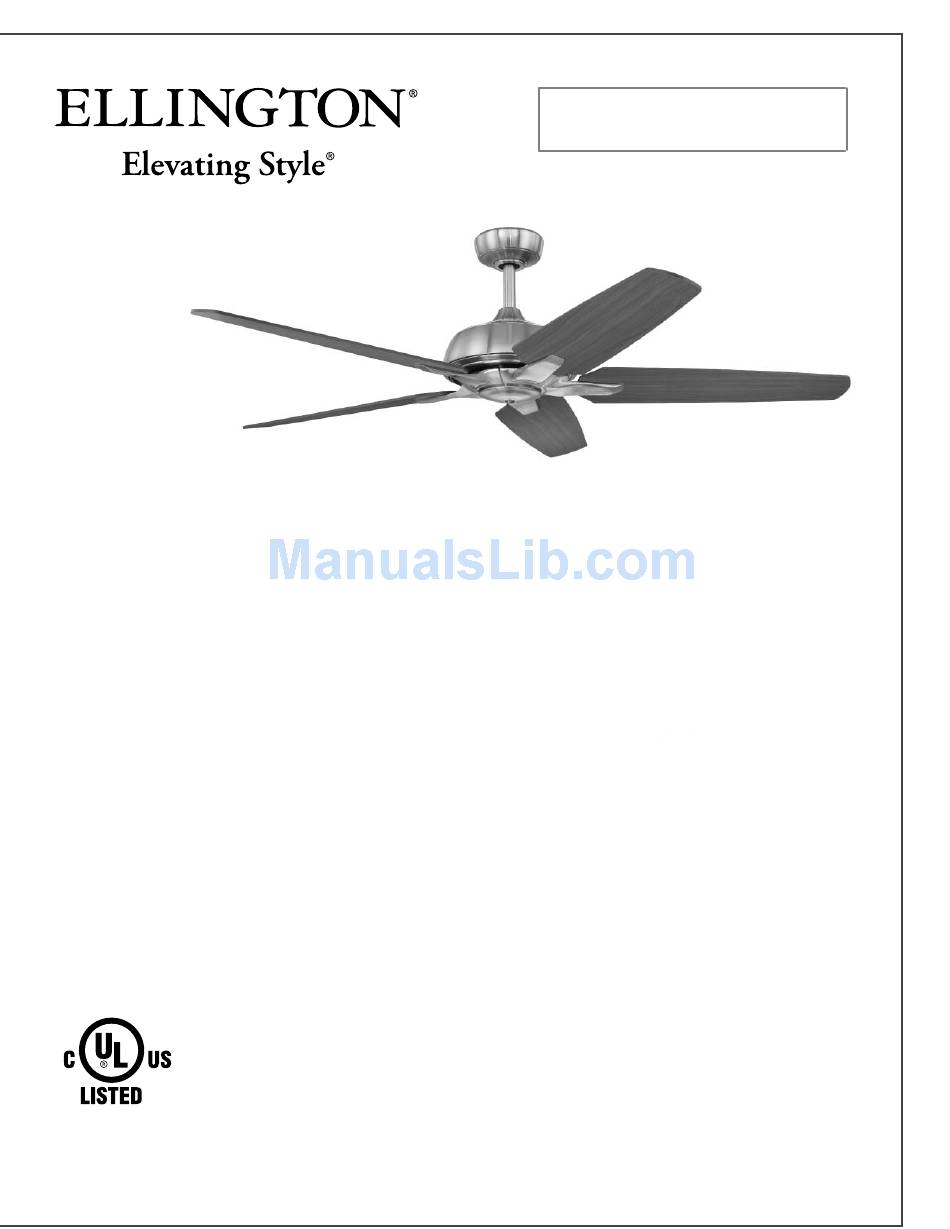

Installation Guide
For Models:
AVL56BNK5RW
AVL56TIT5RW
E192641
net weight of fan: 22.27 lb. (10.1 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pgs. 5 - 6
Canopy Assembly. pg. 6
Blade Assembly. pg. 7
Switch Housing Assembly. pg. 7
Wall Control Operation. pg. 8
Remote Control Operation. pg. 9
Testing Your Fan. pg. 9
Troubleshooting. pg. 10
Parts Replacement. pg. 10
Warranty. pg. 10
PRINTED IN CHINA
Advertisement
Table of Contents
Related Manuals for Ellington AVL56BNK5RW
Summary of Contents for Ellington AVL56BNK5RW
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide Table of Contents: For Models: AVL56BNK5RW Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 AVL56TIT5RW Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. -
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet that the hanging location allows the blades a (2.13m) (76cm) clearance of 7 feet (2.13m) from the floor and 30in. (76 cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft. -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. set screw set screw hole If you wish to extend the hanging length of your fan, you stop pin must remove the hanging ball from the 6in. downrod provided to use with an extended downrod (sold separately). [If you wish to use the 6in. downrod, please proceed to instructions following the dotted line below.] hanging ball To remove hanging ball, loosen set screw on hanging ball,... -
Page 6: Wiring. Pgs
5. Fan Assembly. (cont.) safety cable loop wood ceiling joist With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to wood screw hang your fan. Grab the fan firmly with two hands. and washer Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket. -
Page 7: Canopy Assembly
6. Wiring. (cont.) IN ORDER TO WIRE WALL CONTROL, remove existing wall switch. Wire the WALL CONTROL with outlet box wire connectors provided as shown in diagram at wall right. control plate * Wrap each wire connector separately with electrical tape as an extra safety measure. Gently green/ green/ green/... -
Page 8: Blade Assembly
8. Blade Assembly. motor housing Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. Locate 15 blade attachment screws and washers in hardware pack. Hold blade arm up to blade and align holes. Insert 3 blade attachment screws (along with washers) with fingers first blade attachment screws and washers... -
Page 9: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be TRANSMITTER code (back) programmed to multiple receivers or fans. If this is switches not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter. -
Page 10: Remote Control Operation
12. Remote Control Operation. HI button - turns fan to HIGH speed MED button - turns fan to MEDIUM speed LOW button - turns fan to LOW speed OFF button - turns fan OFF REV button - used to REVERSE blade direction (fan must be turned low before reversing blade direction) button - turns light ON/OFF (for use with optional light kit--sold separately);... -
Page 11: Troubleshooting
Warranty. Troubleshooting. ELLINGTON LIMITED LIFETIME WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD. warrants this fan to the original household purchaser for indoor use under the following provisions: 1-YEAR WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD. Problem: Fan fails to operate. will replace or repair any fan which has faulty performance Solutions: due to a defect in material or workmanship.
