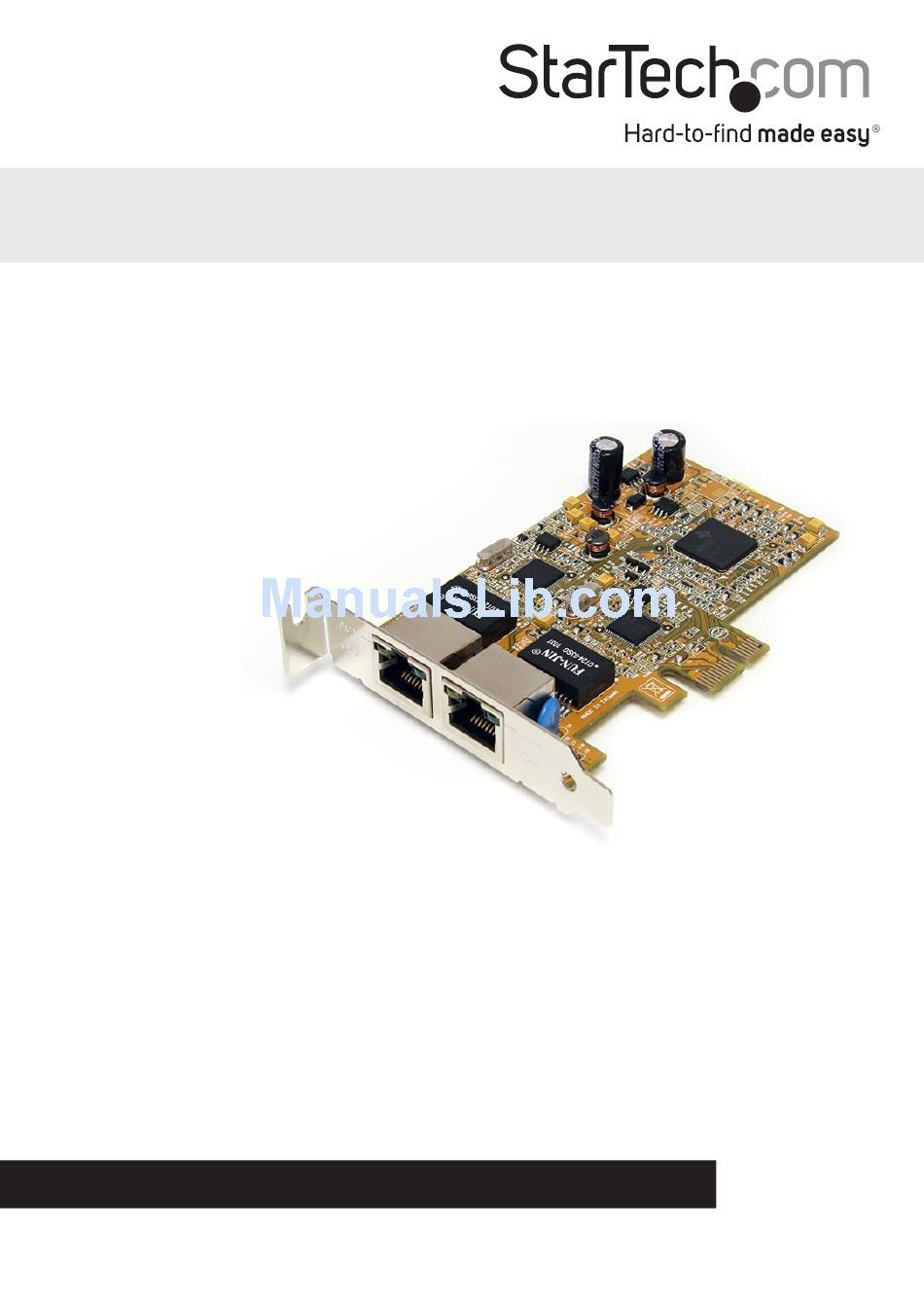

Dual Port Gigabit Network Server Card
- Low Profile
ST1000SPEXD2
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/18/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ST1000SPEXD2
Summary of Contents for StarTech.com ST1000SPEXD2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/18/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction The ST1000SPEXD2 Dual Port Low Profile PCIe Gigabit Ethernet Server Adapter Card provides two 10/100/1000 Mbps capable Ethernet ports and is fully compatible with IEEE 802.3/u/ab standards. Suitable for any PCI Express-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000 Mbps in each direction (2000 Mbps total) - up to 10 times faster than 10/100 Ethernet. -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. - Page 6 3. Enter the folder “LAN”, then “RealtekRTL8111B_8111C”, followed by your operating system version and double-click the “Setup.exe” file in that folder. 4. This should launch the driver Installation wizard. Continue through the wizard and once complete, all the necessary drivers will be installed. Windows Vista/7/Server 2008 R2 1.
-
Page 7: Specifications
Specifications PCI Express revision 1.1 Host Interface (x1 slot connector) Form Factor Low/Full Profile Chipset ID RealTek RTL8111C External Connectors 2 x RJ45 Ethernet female 2 x Link/Activity LEDs 2 x Link Speed Supported Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Maximum Data Transfer Rate 1000 Mbps Full Duplex Support... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
