Summary of Contents for StarTech.com ST1000SPEX2

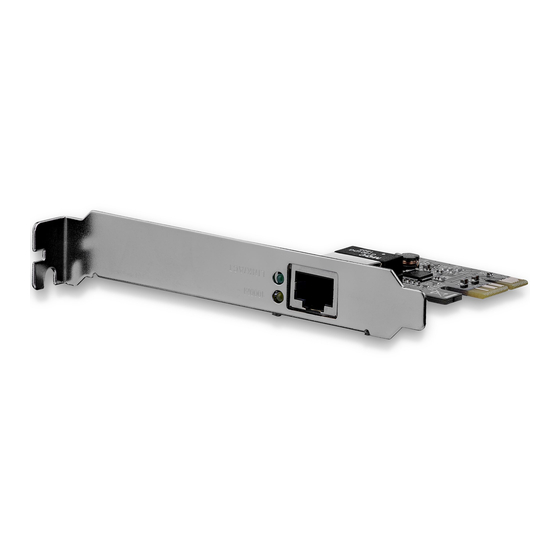

- Page 1 1-Port PCI Express Gigabit Ethernet Network Card Actual product may vary from photos User Manual SKU#: ST1000SPEX2 / ST1000SPEX2L For the latest information and specifications visit www.startech.com/ST1000SPEX2 or www.startech.com/ST1000SPEX2L Manual Revision: 09/14/2018...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage. Never use this product if parts are missing or damaged. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Table of Contents Compliance Statements ................1 Safety Statements ..................2 Warning Statements ................3 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 6: Product Diagram
Product Diagram Link/Activity RJ45 Gigabit Port To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Information
Express slot Microsoft® Windows® XP/ Server 2003/ Server 2008 R2/ Vista/ • 7/ 8 (32/64-bit), or Apple® Mac OS® 10.4 ~ 10.8, or Linux® kernel 2.4.x and later To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Hardware Installation
PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots). Gently insert the card into the open PCI Express slot and fasten the bracket to the rear of the case. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Driver Installation
Double-click the file “Setup.exe” to start the driver installation program. Complete the wizard and this will automatically install all of the drivers/software. Restart the computer if prompted. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Verify Installation
From the pop-up menu, select Manage. On the Computer Management screen, select Device Manager (left menu). The right side of the Computer Management screen, willl populate. Select Network Adapters. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 11 Computer Management screen The Realtek PCIe GBE devices listed will be listed if the installation was successful. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 12: Led Indicators
Solid On: Link/cable detected Flashing: Data Link/Activity Green transmission Off: No link/cable detected Solid On: 1000 Mbps (Gigabit) Link detected Gigabit Yellow Off: 10/100 Mbps Link or no link detected To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Specifications
IEEE 802.3, IEEE802.3u, IEEE 802.3ab Standards Compatible 10/100/1000 Mbps Networks Auto MDIX Support Full Duplex Support Operating 0°C ~ 70°C (32°F ~ 158°F) Temperature Storage 0°C ~ 100°C (32°F ~ 212°F) Temperature To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 65mm Weight Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows® Server 2008 R2, Compatible 2003(32/64) Operating Systems Mac OS X (Intel based, tested up to 10.8) Linux To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
