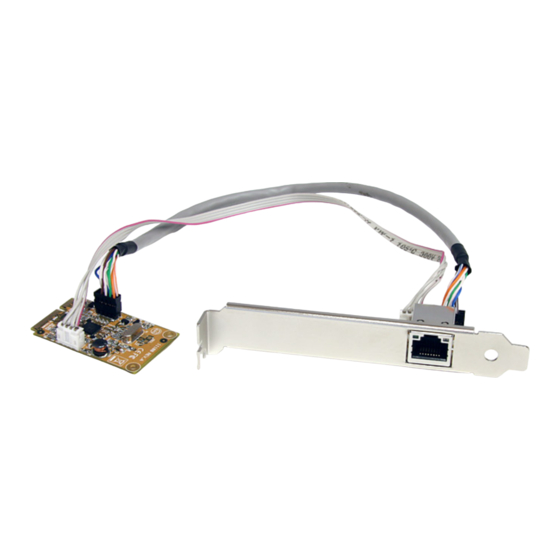

1 Port Mini PCI Express Gigabit
Network Adapter
ST1000SMPEX
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/20/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ST1000SMPEX
Summary of Contents for StarTech.com ST1000SMPEX
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/20/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction The ST1000SMPEX 1 Port Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards. Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization,... -
Page 5: Installation
WARNING! Computer parts can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
3. Make sure the cable that connects the Mini Card to the Daughter Board is firmly seated at both ends. 4. Locate an open expansion card slot and remove the metal cover plate on the rear of the computer case (Refer to documentation for your computer system for details). 5. -
Page 7: Specifications
Specifications Host Interface PCI Express Mini Card revision 1.1 Form Factor Full Length Mini PCI Express Chipset ID Realtek RTL8111C External Connectors 1 x RJ45 Ethernet female 1 x Gigabit Link LEDs 1 x Activity Supported Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Maximum Data Transfer Rate 1000 Mbps Full Duplex Support... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
