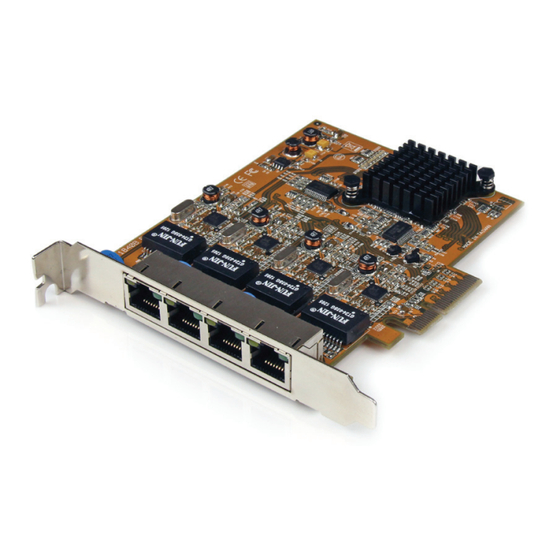

4 Port PCI Express Gigabit Ethernet
Network Card
ST1000SPEX42
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/08/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST1000SPEX42
Summary of Contents for StarTech.com ST1000SPEX42
-
Page 1: Network Card
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/08/2012... -
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................. 4 Verifying Installation ..........................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction The ST1000SPEX42 4 port PCIe 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides four Gigabit Ethernet ports and is fully compatible with IEEE 802.3/u/ ab standards. Suitable for any PCI Express x4 enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance four channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet. - Page 5 Activity LED (yellow) Link LED (green) RJ45 connector Function State Status Gigabit mode Yellow Speed/Mode 10/100 mode Link Green Link/Activity Blinking Activity Instruction Manual...
-
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
Driver Installation Windows 2000/XP/Server 2003 1. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD/DVD drive. If you are prompted to connect to Windows Update, please select the “No, not this time” option and click Next. 2. -
Page 8: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7/8), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Network Adapters” category to expand it. There should be four additional “Realtek”... -
Page 9: Specifications
Specifications Bus Interface PCI Express 1.1 (x4 slot connector) Chipset ID Realtek RTL8111E Number of Ports Connectors 4x Female RJ45 Yellow: Gigabit mode (on) / 10/100 mode (off ) LEDs Green: Link (solid) / Activity (blinking) Buffer Size 48KB Transmit/Receive (on-chip) Supported Standards IEEE 802.3/802.3u/802.3ab Maximum Transfer Rate... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
