User Manual

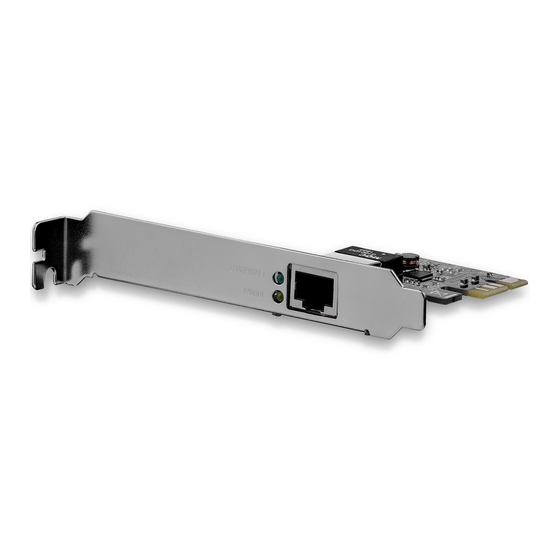

1-Port PCI Express Gigabit Ethernet
Network Card
ST1000SPEX2 / ST1000SPEX2L
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/08/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST1000SPEX2
Summary of Contents for StarTech.com ST1000SPEX2
-
Page 1: Network Card
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/08/2013... -
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Verify Installation ............................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The ST1000SPEX2/ST1000SPEX2L 1-Port PCI Express Gigabit Ethernet Network Card provides a PCI Express enabled computer with a versatile 10/100/1000 Mbps compatible RJ45 Ethernet port as either an additional or replacement networking interface. Suitable for virtually any PCI Express-enabled client, server or workstation, this network adapter card is fully compatible with IEEE 802.3/u/ab standards and... - Page 5 Link/Activity Gigabit LED RJ45 Ethernet port Color Status Solid On: Link/cable detected Flashing: Data Link/Activity Green transmission Off: No link/cable detected Solid On: 1000 Mbps (Gigabit) Link detected 1000M (Gigabit) Yellow Off: 10/100 Mbps Link or no link detected Instruction Manual...
-
Page 6: Installation
NOTE: Replacing the pre-installed installation bracket may be necessary at this point depending on the card purchased (ST1000SPEX2 / ST1000SPEX2L), and the profile of the system it is being installed in. 5. Place the cover back onto the computer case. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1. -
Page 7: Driver Installation
Driver Installation Windows 1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/ DVD drive. 2. AutoPlay should give you the option to browse the files on the CD or automatically open the CD. -
Page 8: Specifications
Specifications ST1000SPEX2 ST1000SPEX2L Host Interface PCI Express 1.1 (x1 slot connector) Standard Profile (LP Low Profile (SP Bracket Form Factor Bracket Included) Included) Chipset ID Realtek RTL8111E External Connectors 1x RJ45 Ethernet Female 1x Gigabit LEDs 1x Link/Activity Supported Standards IEEE 802.3, IEEE802.3u, IEEE 802.3ab... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
