USB 2.0 to IEEE 802.11N 150Mbps
Mini Wireless Network Adapter - 1T1R
USB150WN1X1 / USB150WN1X1W
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/02/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com USB150WN1X1W
Summary of Contents for StarTech.com USB150WN1X1W

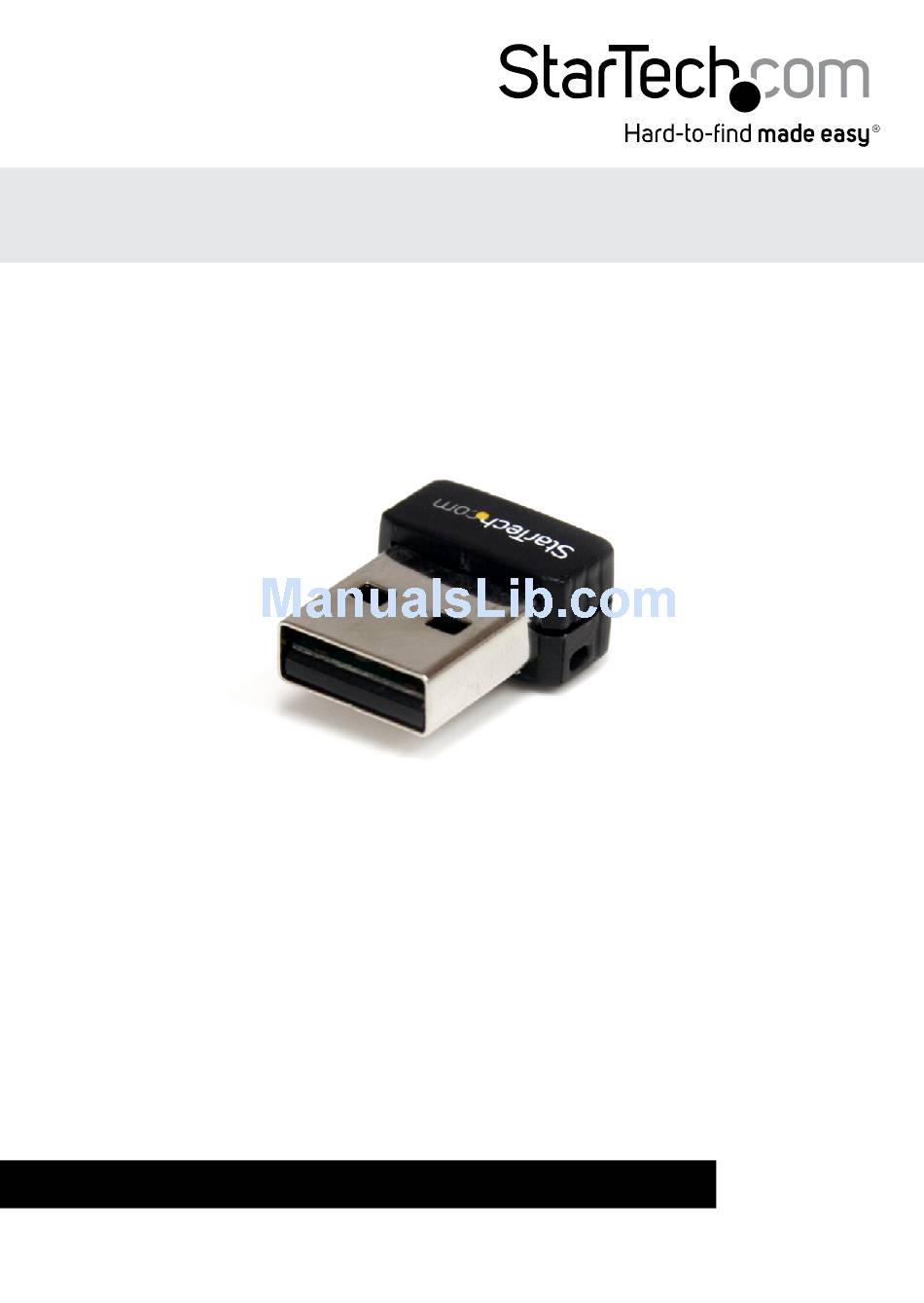

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/02/2014...
-
Page 2: Fcc Compliance Statement
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Driver Installation ............................2 How to Use ....................4 Wireless LAN Utility ..........................4 Wi-Fi Protected Setup (WPS) ..............5 Push Button Configuration ........................5 PIN Input Configuration .......................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 5: Introduction

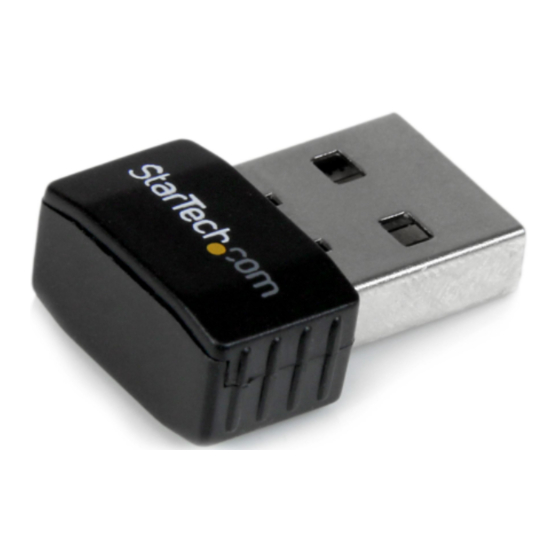

Introduction The USB150WN1X1 / USB150WN1X1W USB 802.11N Mini Wireless Network Adapter allows almost any USB-enabled desktop, laptop or netbook computer system to connect to ‘n’ , ‘g’ or ‘b’ wireless networks. Using a 1T1R (1 Transmitter/1 Receiver) design over the 2.4 GHz frequency in an extremely compact form factor, the USB adapter is capable of reaching up to 150 Mbps over an 802.11n network while taking up minimal... -
Page 6: Installation
Installation Driver Installation NOTE: Install the drivers/software before plugging in the USB adapter. Windows XP/Server 2003 1. Upon starting Windows, before plugging in the wireless adapter, insert the included Driver CD into the computer’s CD/DVD drive. 2. AutoPlay should automatically launch the Driver/Software installation splash screen. If not, open “My Computer”... - Page 7 Windows Vista/7/8/Server 2008 R2/Server 2012 1. Upon starting Windows, before plugging in the wireless adapter, insert the included Driver CD into the computer’s CD/DVD drive. 2. AutoPlay should automatically launch the Driver/ Software installation splash screen or prompt you to run Setup.exe. If not, open “Computer” open the CD/DVD drive the disk is inserted into and double- click the file Setup.exe 3.
-
Page 8: How To Use
How to Use Wireless LAN Utility The optional Realtek Wireless LAN Utility can be used to replace or supplement the Windows wireless configuration utility. All features of the Windows utility are available, in addition to more detailed statistics and advanced features such as Wi-Fi Protected Setup (WPS). -
Page 9: Wi-Fi Protected Setup (Wps)
Wi-Fi Protected Setup (WPS) WPS is an easy way for anyone to automatically setup a secure wireless network on a Windows-based computer. A WPS compatible wireless access point (AP) is required. There are two methods of setting up WPS. Push Button Configuration 1. -
Page 10: Specifications
Specifications Host Interface USB 2.0 Chipset ID Realtek RTL8188CU Connectors 1 x USB type A male LEDs Antenna Configuration (TxR:S) 1x1:1 Wireless Frequency 2.4 GHz Supported Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Supported Security Protocols WEP, WPA, WPA2, TKIP/AES Maximum Data Transfer Rate 150 Mbps Operating Temperature... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
