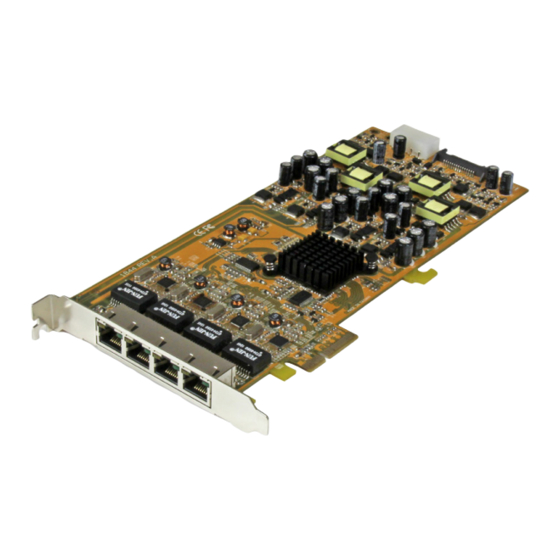

4 Port PCI Express Gigabit Ethernet PoE PSE
Network Card
ST4000PEXPSE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/03/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST4000PEXPSE
Summary of Contents for StarTech.com ST4000PEXPSE
-
Page 1: Network Card
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/03/2014... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 LED Indicators............................. 2 Installation ....................3 Hardware Installation ..........................3 Software Installation ..........................3 Verifying Installation ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1x PCI Express Network Card • 1x Driver CD • 1x Instruction Manual System Requirements • PCI Express enabled computer system with available PCI Express slot • Available SATA power or LP4 Molex connector from the computer power supply •... -
Page 5: Product Diagram
Product Diagram Front View LED Indicators Color Status Solid On: Link detected Flashing: Data Link/Activity Green transmission Off: No link detected Solid On: PoE enabled (Powered Device PoE Enabled Yellow detected) Off: PoE disabled (Powered Device not detected) Instruction Manual... -
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Verifying Installation
3. Navigate to the LAN/Realtek/RTL8111B_8111C_8111E folder and then select the appropriate folder for your operating system version. 4. Double-click the file Setup.exe application to start the driver installation program. 5. Follow the on-screen instructions to complete the installation. NOTE: You may be prompted to restart once the install completes. Verifying Installation Windows 1. -
Page 8: Specifications
Specifications Number of Ports Host Interface PCI Express x4 Chipset External Connector(s) 4 x RJ-45 Female 1 x LP4 (4 pin; Molex Large Drive Power) Male Internal Connector(s) 1 x SATA Power (15 pin) Plug Maximum Data Transfer Rate 2000 Mbps (Full-duplex) IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.1Q VLAN tagging Supported Standards... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
