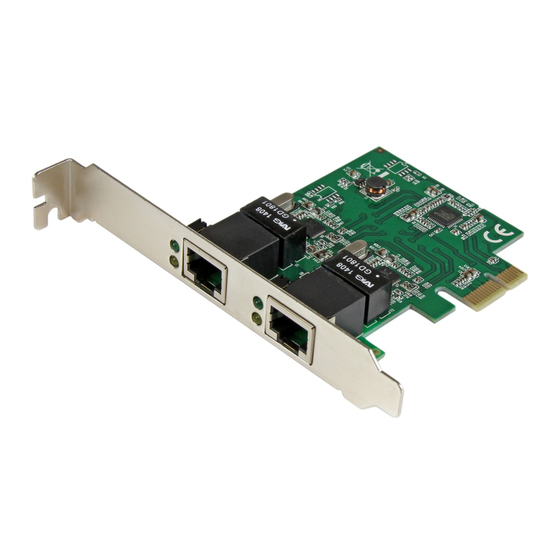

2 Port PCI Express Gigabit Ethernet Network Card
ST1000SPEXD4
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/15/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com ST1000SPEXD4
Summary of Contents for StarTech.com ST1000SPEXD4
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/15/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................1 Hardware Installation ..........................1 Software Installation ..........................2 Verifying Installation ..........................2 Specifications ..................4 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 5: Software Installation
NOTE: If installing the card into a low profile desktop system, replacing the preinstalled standard profile bracket with the included low profile (half height) installation bracket may be necessary. 5. Place the cover back onto the computer case. 6. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1. - Page 6 Mac OS 1. Open the System Profiler by clicking the Apple symbol in the top left corner, selecting About this Mac, then select System Report (Or More Info, depending on the version of Mac OS you are using). 2. Expand the “Hardware” section and click “Ethernet Cards” in the left column. With the adapter connected, you should see the following device in the list.
-
Page 7: Specifications
Specifications Ports Interface RJ-45 (Gigabit Ethernet) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Port Style Integrated on Card IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Industry Standards PCI Express Base Specification 2.0 Realtek - RTL8111E Chipset ASMedia - ASM1182e 1 x PCI Express x1 Connector(s) 2 x RJ-45 Female... - Page 8 Windows® 8.1 / 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows® Server 2012, 2008 R2, 2003(32/64) Compatible Operating Systems Mac OS 10.4 and up (Tested up to 10.10) Linux 2.4.x and up (Tested up to 3.5) Instruction Manual...
-
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
