MODEL – B96M8W – 8kg
IMPORTANT: PLEASE READ THESE
INSTRUCTIONS THOROUGHLY BEFORE USING
THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR
FUTURE REFERENCE.
IMPORTANT USER INFORMATION
– This appliance is intended for NORMAL DOMESTIC
USE ONLY.
– Please note it is not recommended that the dryer is placed
directly next to ovens, cookers or other heating appliances
as the performance of the dryer may be affected.
– Any electrical work required to install the appliance
should be carried out by a qualified person.
– The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
– It is important to clean the lint filter after each drying
cycle and the heat exchanger every month or the
restrictions to airflow will extend drying times and could
cause the safety cut-out to trip.
– DO NOT allow lint to accumulate around the tumble
dryer - risk of fire
INSTRUCTIONS FOR USE

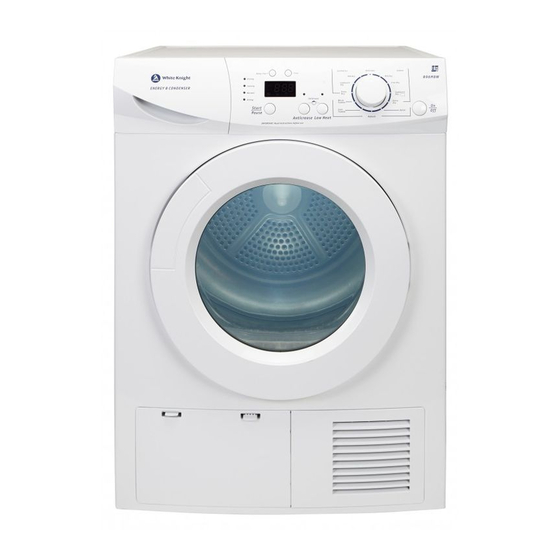

CONDENSER TUMBLE DRYER
Advertisement
Table of Contents
Related Manuals for White Knight B96M8W
Summary of Contents for White Knight B96M8W
- Page 1 INSTRUCTIONS FOR USE CONDENSER TUMBLE DRYER MODEL – B96M8W – 8kg IMPORTANT: PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE. IMPORTANT USER INFORMATION – This appliance is intended for NORMAL DOMESTIC USE ONLY.
- Page 2 – Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. – DO NOT dry unwashed items in the tumble dryer. – Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent...
- Page 3 Do not stack the tumble dryer on top of other appliances.
- Page 4 electricity supply during long periods of inactivity (i.e. weekends, holidays etc.) – The special mains cable and plug assembly must only be replaced with a genuine part from the manufacturer or our appointed service agent. – It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle.
- Page 5 – To avoid the need to iron easycare polyester/cotton items it is better to only dry small loads (i.e. half fill drum). It is better to dry small and large articles together. – DO NOT overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the airflow through the dryer is not obstructed.
-
Page 6: Drainage Options
DRAINAGE OPTIONS Your new appliance as delivered is setup such that the condensed water generated during drying is pumped into the water bottle. The bottle will then require emptying at the end of every drying cycle. Alternatively, the appliance can be converted to allow the condensed water to be pumped to your household waste pipe. -
Page 7: Dryer Installation
DRYER INSTALLATION Position the tumble dryer so that the plug remains accessible after installation. Do not block the vents at the front, rear or base of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer. -
Page 8: Cleaning The Filter
CLEANING THE FILTER ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety cut-out to operate. Pull the filter upwards and away from the appliance. Open the filter by pulling apart in the centre and then gently pressing down to release the catches at the edges. -
Page 9: Cleaning The Heat Exchanger
CLEANING THE HEAT EXCHANGER The Heat Exchanger and ducting should be cleaned monthly or more frequently if the dryer is in constant use. CAUTION: For maximum efficiency, the plates are made from very thin aluminum and are easily damaged. At all times, handle the Heat Exchanger carefully and avoid crushing the plates. - Page 10 APPLIANCE FEATURES AND PROGRAMME OPTIONS – Programme selection once the On/Off button has been pressed, rotate the programme knob to select the required programme. Additional features of Delay, Anticrease (not available on Refresh, Cool or Warm Tumble programmes) and Low Heat (not available on Refresh, Quick, Cool or Warm tumble programmes) can also be selected.
-
Page 11: Programme Table
PROGRAMME TABLE Weight Programme Programme Details (max) For garments made of cotton and linen Extra Dry Clothes are extra dry and can be put away Cupboard Dry Clothes are dry enough to be put away 8.0kg Iron Dry Clothes are slightly damp and are ready to be ironed Damp Iron Dry Clothes are slightly damp For garments made from synthetic and blended fabrics... -
Page 13: Operation
OPERATION A full load will typically take 140 minutes and will use approximately 4.74kWh of electricity. A half load will typically take 90 minutes and will use approximately 2.56kWh of electricity. The power consumption of the off-mode is 0.28W and the left-on mode is 0.9W. 1. -
Page 14: Technical Data
CUSTOMER ADVICE – BEFORE CALLING FOR ASSISTANCE If the clothes are not dry after normal drying time: – Check that you used the correct heat setting and/or programme – Check that the lint filter has been cleaned. A blocked filter will restrict the airflow. –... - Page 15 Energy labelling directive: 2010/30/EU – Product Fiche 1(a) Supplier’s name or trade mark: White Knight 1(b) Model identifier: B96M8W 1(c) Rated capacity at full load: 1(d) Appliance type: Condenser 1(e) Energy efficiency class: 1(f) The energy consumption of the appliance is 561kWh per year The figures above are based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes.
- Page 16 4 2 1 3 1 9 4 1 5 9 9 2...
