SERVICE MANUAL
WHITE KNIGHT CL767
Condenser Dryer - UK
CL767
767SV
767SVNC
CL767B
CL767Y
CL767OG
0312 767 15002
0312 767 15003
0312 767 15301
0312 767 15310
0312 767 15501
0312 767 15601
0312 767 15801
Wiring Diagram
Exploded Views
Parts List
August 2002
4213 094 63048
White
Silver
Silver
Blue
Yellow
Olive Green

Advertisement

loading
Need help?

Need help?

Do you have a question about the CL767 and is the answer not in the manual?

Questions and answers

Maurice Parish
April 1, 2025

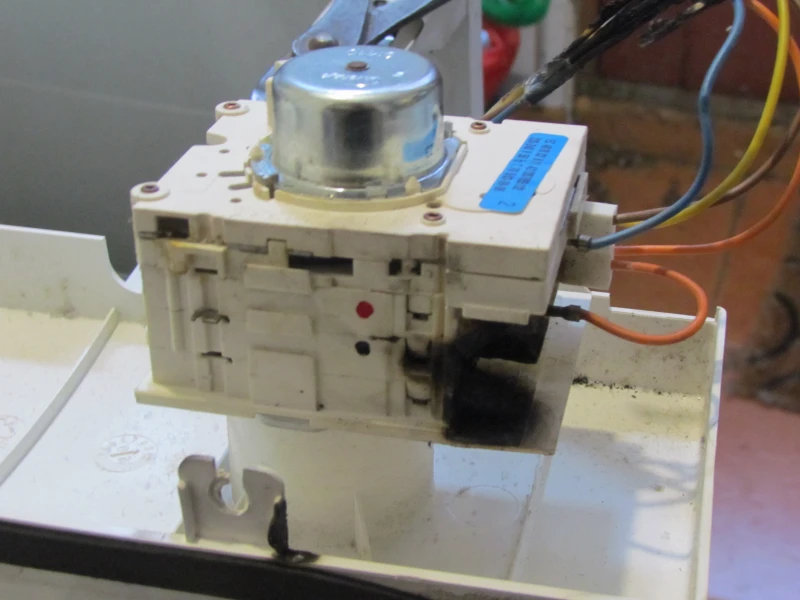

How do I remove and replace the control unit (ie 211)

User image 67ebab6e003c6

Subscribe to Our Youtube Channel

Summary of Contents for White Knight CL767

  • Page 1 SERVICE MANUAL WHITE KNIGHT CL767 Condenser Dryer - UK 0312 767 15002 CL767 White 0312 767 15003 767SV 0312 767 15301 Silver 767SVNC 0312 767 15310 Silver CL767B 0312 767 15501 Blue CL767Y Yellow 0312 767 15601 CL767OG 0312 767 15801...
  • Page 2 White Knight CL767 Condenser Dryer - Exploded View 1 231 217 363a 203a Ignis Plinth Stack Plinth 203a 363a Continental Door Frame Assembly...
  • Page 3 White Knight CL767 Condenser Dryer - Exploded View 2 445b 445a...
  • Page 4 White Knight CL767 Condenser Dryer - Exploded View 3 Blue Pipe Red Pipe WATER FLOW...
  • Page 5 White Knight 767 Condenser Dryer - Exploded View 4 101a...
  • Page 6 White Knight CL767 Condenser Exploded View 4b (dryers built prior to week 28, 2002) The serial number will therefore have the date prefix of 0227 or lower.
  • Page 7 White Knight CL767 Condenser Dryers - Wiring Diagram 1.25 D N/A EC TIMER "BOTTLE FULL" NEON D N/A B.S. MAINS D.S. CABLE 0.75 0.75 G/K 1.5 G/K 1.5 IN-TH 0.75 EX-TH MAN. PUMP 0.75 0.75 Component Code 0.75 0.75 Terminal Block...
  • Page 8 White Knight CL767 Variants - Parts List Item Description Code Expl.View Motor & 8µf Capacitor Assembly 4213 092 21001 101a Motor See 101 8µf Capacitor Assembly 4213 092 08091 Drive Belt 4213 092 19501 Mains Cable 4213 076 35122 Interference Filter...
  • Page 9 White Knight CL767 Variants - Parts List Exhaust Thermostat 4213 092 21081 Inlet Thermostat 4213 092 21251 Bottle Microswitch 4213 078 50582 Rocker Switch 4213 078 51061 Door Microswitch 4213 092 05251 Drum Assembly (new back panel*) 4213 092 37081...
  • Page 10 White Knight CL767 Variants - Parts List Latch Guide 4213 077 40992 Front Panel Assembly (white) 4213 092 21111 Front Panel Assembly (silver) 4213 092 36231 Front Panel Assembly (blue) 4213 092 28581 Front Panel Assembly (yellow) 4213 092 28591...
  • Page 11 White Knight CL767 Variants - Parts List Inlet Duct Panel Seal 4213 077 08552 Inlet Duct Rear Seal 4213 077 08566 Filter 4213 092 18351 Banjo Seal 4213 077 08484 'J' Clip 2513 482 08002 2 & 3 Condenser Latch Set...
  • Page 12 White Knight CL767 Variants - Parts List Not shown on exploded views Loom Assembly 4213 076 53165 User Instruction Booklet 4213 094 45689 * New Back Panel Assembly - introduced on all condensers in week 28 2002 (serial numbers beginning 0228 or higher). To additionally help with identifying machines the 12 digit product code on the rating plate will end with /4 - for example 0312 767 15002/4.
