ARMREST ANGLE

You can adjust the armrest angle to fit your specific needs.
See figure 14.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular
to the floor.
2. Use a 1/2-in. wrench to loosen the jam nut. See
figure 14.
3. Use a 1/2-in. wrench to loosen the adjusting screw.
4. Turn the screw clockwise to lower the front of the
armrest, or turn the screw counterclockwise to raise
the front of the armrest.
5. Lock the adjusting screw into place by tightening the
jam nut.
ARMREST HEIGHT (OPTIONAL)
Your Jet 2 may be equipped with height-adjustable arm-
rests.
To change the armrest height:
1. Locate the two setscrews under the rear of the arm-
rests. See figure 13.
2. Use a 5/32-in. hex key to loosen the screws, then
slide the armrests in or out for the desired width.
3. Tighten the setscrews.
JOYSTICK EXTENSION
The joystick control can easily slide out away from the
armrest, or in toward the armrest. See figure 15.
To extend the joystick:
1. Use a 5 mm hex key to loosen the setscrew.
2. Slide the joystick mounting bracket into or out of the
armrest to the desired position.
3. Tighten the setscrew by turning the hex key
clockwise.
Jet 2/Rev F/Feb03
A D J U S T M E N T S
JAM NUT LOCKS
ADJUSTING
SCREW IN PLACE.
TURN THIS SCREW TO
CHANGE ARMREST
ANGLE.

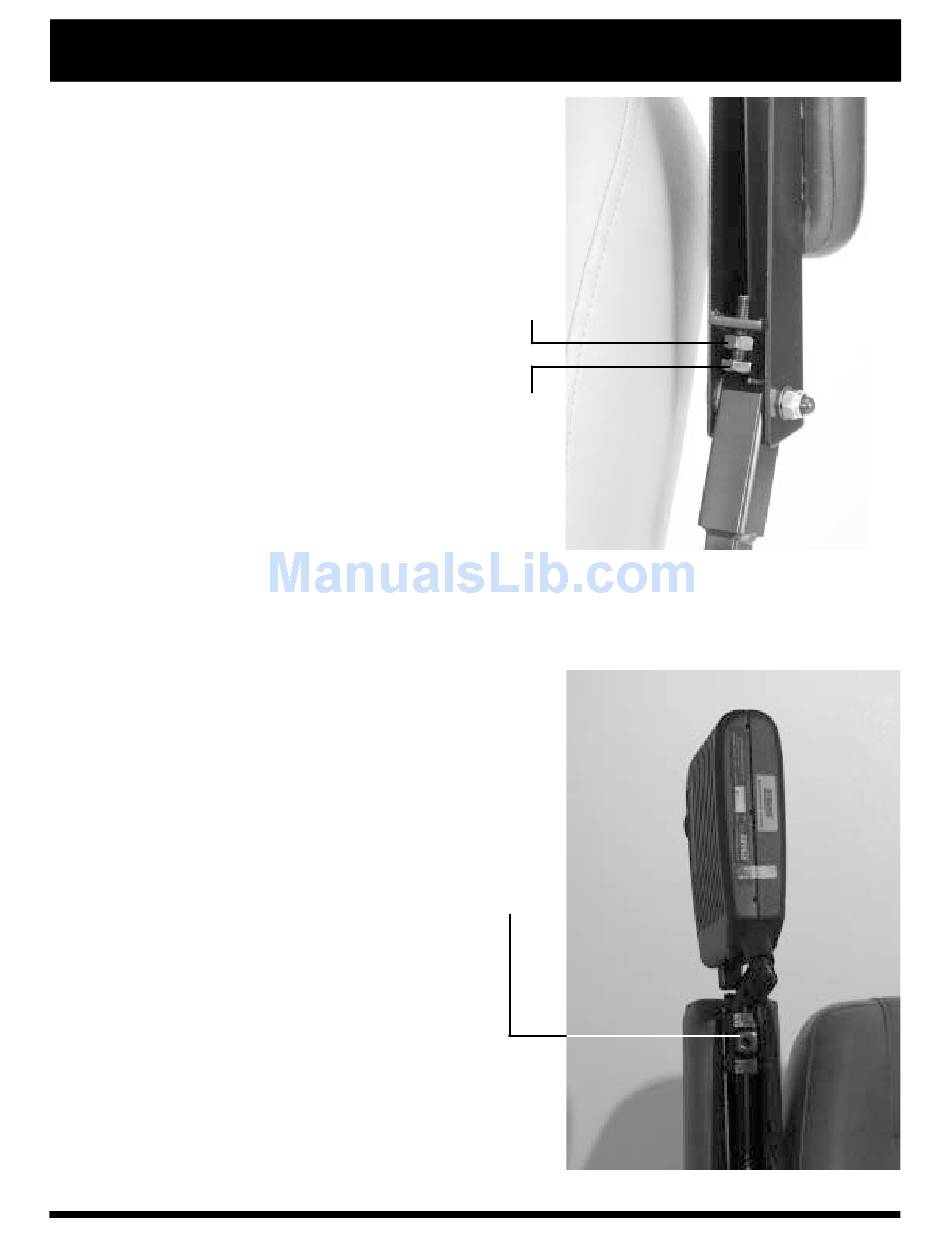

Figure 14. Armrest Angle Adjustment
LOOSEN
THIS
SETSCREW
TO ADJUST
JOYSTICK
Figure 15. Joystick Extension
