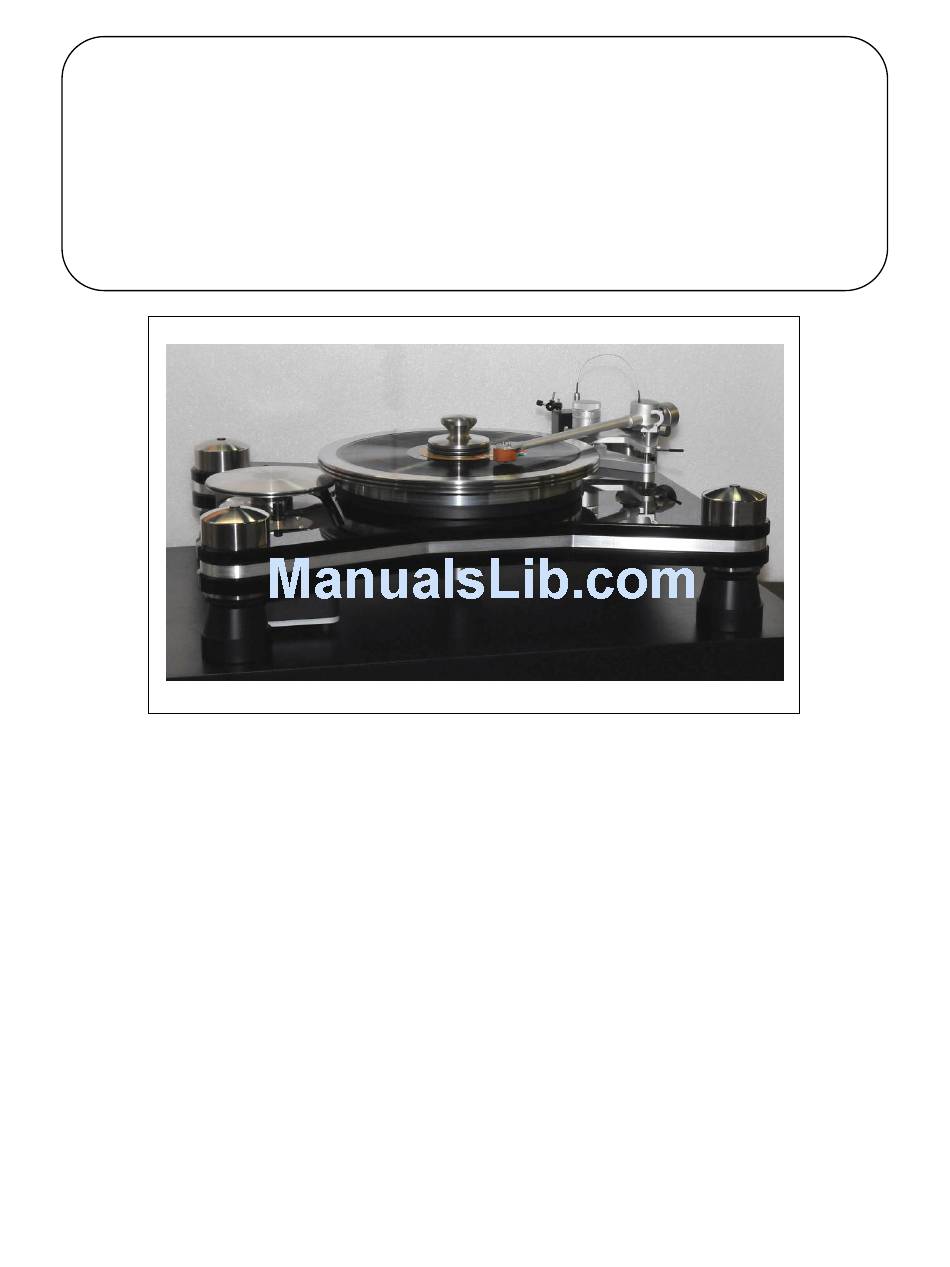

THE HR-X RIM DRIVE
REFERENCE TURNTABLE &
JMW-12.7 TONEARM
SETUP AND INSTRUCTION
MANUAL
IMPORTANT NEW INFORMATION: THE ACCURACY AND SOUND OF THE RIM
DRIVE IS VERY DEPENDENT ON THE PERFECT ROUNDNESS OF THE PLATTER.
YOUR NEW HR-X RIM DRIVE HAS THE PRECISION ALUMINUM PLATTER WE USE
ON THE CLASSIC 3 TO GIVE THE BEST SPEED STABILITY AND ACCURACY OF
SOUND.
VPI INDUSTRIES INC., 77 CLIFFWOOD AVE #3B, CLIFFWOOD N.J. 07721
PHONE: 732-583-6895 Email: sales@vpiindustries.com
www.vpiindustries.com
1
Advertisement
Table of Contents
Related Manuals for VPI HR-X
Summary of Contents for VPI HR-X
- Page 1 IMPORTANT NEW INFORMATION: THE ACCURACY AND SOUND OF THE RIM DRIVE IS VERY DEPENDENT ON THE PERFECT ROUNDNESS OF THE PLATTER. YOUR NEW HR-X RIM DRIVE HAS THE PRECISION ALUMINUM PLATTER WE USE ON THE CLASSIC 3 TO GIVE THE BEST SPEED STABILITY AND ACCURACY OF SOUND.
- Page 2 It is best to place the HR-X on a level surface that measures at least 27 x 2l inches. This will allow room for the optional dust cover if you should want to purchase it.
-
Page 3: Cartridge Mounting
SETTING YOUR JMW 12.7 MEMORIAL TONE ARM Be very careful when handling the tone arm. The internal arm wire is exposed at the headshell and at the rear of the arm. This wire is very delicate and contains 64 strands of very pure copper. - Page 4 IF YOUR PHONO SECTION INVERTS PHASE, THE HOT BECOMES THE GROUND COLOR The arm tube should be on its side on the foam pad when doing this. Using tweezers or fine tipped pliers, grip the center of the red wire's connector (do not grip the wire) and push it onto the cartridge's right hot terminal pin.
- Page 5 SHOWN ON 12.6 BUT UNITS ARE THE SAME Place the arm in its rest and apply enough tracking force to keep the stylus from moving. Loosen the screws that hold the cartridge just enough so that the cartridge can be moved back and forth. ...
-
Page 6: Tracking Force
Double check the adjustments made above. The cartridge needs to be both centered and "square" between the grid lines and have the stylus resting on the dot. The alignment gauge does not have a hole or dimple to hold the stylus. While the printed dot makes it harder to keep the stylus in place, this method was chosen to avoid the possibility of damaging the stylus cantilever or the diamond tip as the cartridge is positioned. -
Page 7: Anti-Skating
Long thin rod 90 degrees ANTI-SKATING: A pivoted arm without an offset head would not be subject to skating force. However, it will also have no correction for tracking error and the resulting distortion is unacceptable. As soon as the arm's head is offset to lower tracing distortion, skating force arises. - Page 8 We could go on discussing the pros and a con of how much anti-skate is correct, but the sonic answer is very simple. Adjust the wire as mentioned above until the tonearm drifts outward when set to neutral balance. When you push the neutral balance floating tonearm towards the center of the record, it should push back out towards the rim of the record.
-
Page 9: Very Important
VERY IMPORTANT!!! Run the HR-X RIM DRIVE for 6 hours to set the “O” ring in the RIM DRIVE for accurate tracking. Do not run the HR-X for days at a time to break it in. The RIM DRIVE runs on a PEEK thrust disc and continuous running will damage this disc. - Page 10 VPI’s sole obligation under this warranty is limited to the repair or replacement, at VPI’s option, of any part(s) found to be defective. VPI’s obligation to repair or replace defective parts is the purchaser’s sole and exclusive remedy, and VPI shall not be liable for any direct or indirect injury and/or property damage...
