SMART Board 480i6 Configuration And User's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

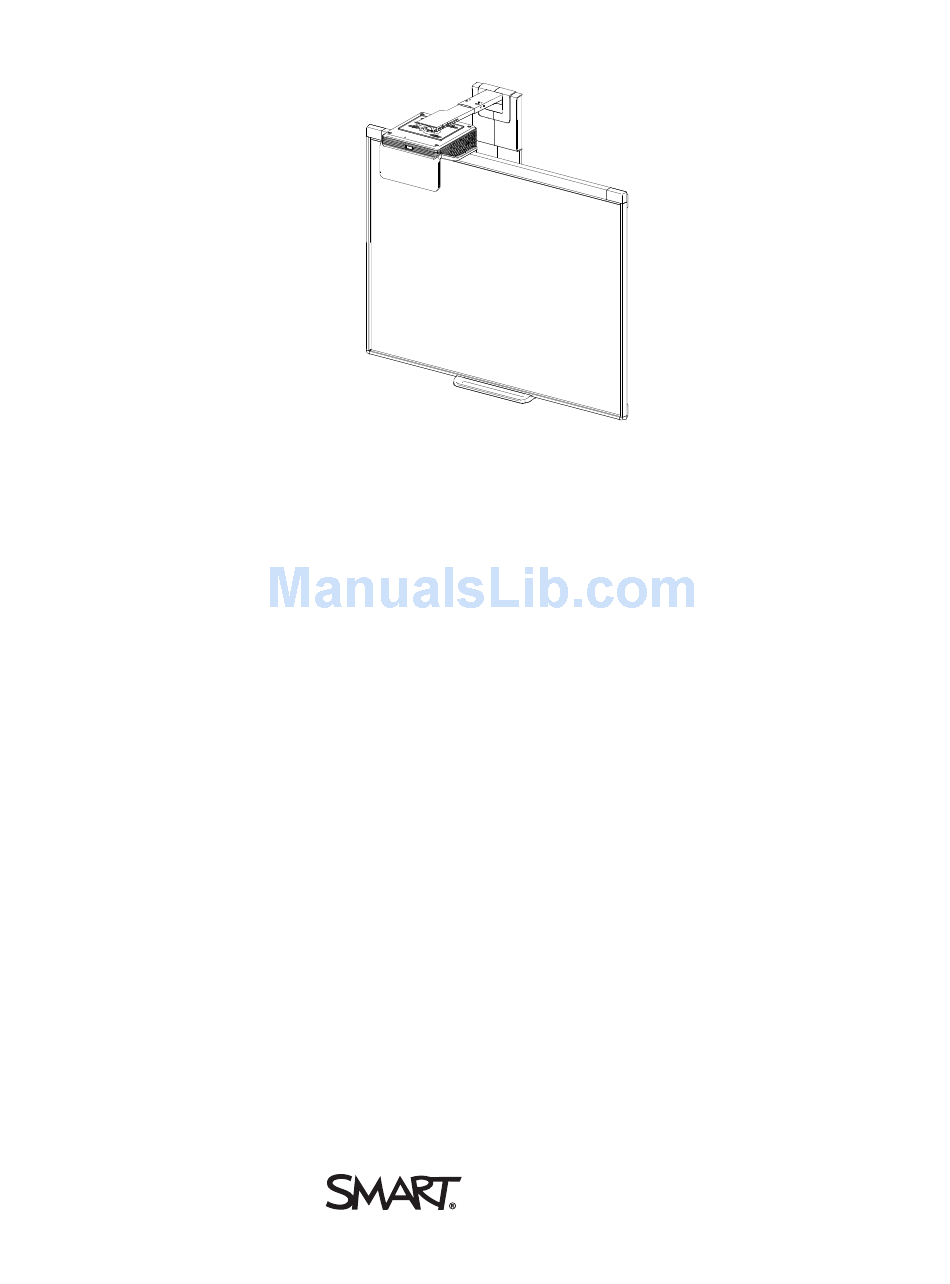

SMART Board® 480i6
Interactive whiteboard system
Configuration and user's guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 480i6 and is the answer not in the manual?

Questions and answers

Related Manuals for SMART Board 480i6

Summary of Contents for SMART Board 480i6

  • Page 1 SMART Board® 480i6 Interactive whiteboard system Configuration and user’s guide...
  • Page 2 FCC warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications.

  • Page 3: Important Information

    Important information Before you install and use your SMART Board® 480i6 interactive whiteboard system, read and understand the safety warnings and precautions in this user’s guide and the included warnings document. These safety warnings and precautions describe the safe and correct operation of your interactive whiteboard system and its accessories, helping you to prevent injuries and equipment damage.
  • Page 4 I M P O R T A N T I N F O R M A T I O N Two people are required to mount your SMART product because it may be too heavy for one person to safely maneuver. When you lift your interactive whiteboard, you and your assistant should stand on either side of the screen, supporting its weight at the bottom while balancing the top with your other hands.
  • Page 5 Disconnect the product from its power source when it’s not used for a long period. Other precautions If you own a SMART product other than a SMART Board 480i6 series interactive whiteboard system, refer to the installation manual for your product for relevant warnings and maintenance instructions.

  • Page 6: Environmental Requirements

    Unmated connectors meet no malfunction or damage up to 4kV (both polarities) for direct (contact) discharge Cables All SMART Board 480i6 interactive whiteboard system cables should be shielded to prevent potential accidents and degraded video and audio quality. Conducted and radiated...

  • Page 7: Table Of Contents

    Contents Important information Safety warnings, cautions and important information Environmental requirements Chapter 1: About your interactive whiteboard system SMART Board 480i6 interactive whiteboard system features Included accessories Optional accessories Chapter 2: Installing your interactive whiteboard system Choosing a location Choosing a height...
  • Page 8 C O N T E N T S Simple Network Management Protocol (SNMP) Appendix B: Remotely managing your system through an RS-232 serial interface Connecting your room control system to the SMART UF70 projector Projector programming commands Appendix C: Remote control code definitions Appendix D: Hardware environmental compliance Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives)

  • Page 9: Chapter 1: About Your Interactive Whiteboard System

    SMART UF70 projector Included accessories Remote control Optional accessories Your SMART Board 480i6 interactive whiteboard system combines the following components: SMART Board 480 interactive whiteboard Wall-mounted, short-throw SMART UF70 projector Accessories and optional equipment This chapter describes the features of your interactive whiteboard and provides information about product parts and accessories.

  • Page 10: Smart Board 480I6 Interactive Whiteboard System Features

    When you use SMART software with your SMART Board 480i6 interactive whiteboard system, you can write or draw over the projected computer image in digital ink, and then save these notes to a .notebook file or directly into any Ink Aware application.

  • Page 11: Included Accessories

    C H A P T E R 1 About your interactive whiteboard system SMART UF70 projector The SMART UF70 projector system includes a short-throw projector for use with SMART Board interactive whiteboards and a sturdy support system suitable for many different environments. Other features of your projector system include: A wall-mounted, high-offset projector engine that uses DLP®...

  • Page 12: Optional Accessories

    C H A P T E R 1 About your interactive whiteboard system Remote control The remote control enables you to control the system and set up your projector. Use the remote control to access menu options, system information and input selection options. Optional accessories You can add a variety of accessories to your interactive whiteboard to best meet your specific needs.

  • Page 13: Chapter 2: Installing Your Interactive Whiteboard System

    Securing the projector to the boom Routing the cables Installing SMART software Consult the SMART Board 480i6 interactive whiteboard system installation document included with your product for instructions on how to install and secure your system. I M P O R T A N T Use the SMART Board 480i5 interactive whiteboard system installation guide...

  • Page 14: Choosing A Height

    Securing the projector to the boom To learn how to secure the SMART UF70 projector to the boom, see the included SMART Board 480i6 interactive whiteboard system installation guide (smarttech.com/kb/156695). Routing the cables When connecting cables from a SMART UF70 projector to your computer, make sure that all cables pass along the top of the interactive whiteboard wall-mounting bracket and then down the side of the interactive whiteboard.

  • Page 15: Installing Smart Software

    C H A P T E R 2 Installing your interactive whiteboard system I M P O R T A N T Do not connect the power cable to a power outlet until you have connected all the cables to the projector.

  • Page 17: Chapter 3: Using Your Interactive Whiteboard System

    Chapter 3 Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard This chapter describes the basic operation of your interactive whiteboard system and explains how to set up your remote control, retrieve system information, access the projector’s image adjustment options and integrate your interactive whiteboard system with peripheral devices.

  • Page 18: Replacing The Remote Control Battery

    C H A P T E R 3 Using your interactive whiteboard system Replacing the remote control battery Follow this procedure to replace the remote control battery. W A R N I N G Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified CR2025 coin-cell battery.

  • Page 19: Using The Remote Control Buttons

    C H A P T E R 3 Using your interactive whiteboard system Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control to put the projector into Standby mode or to turn it on. You can also use the Input button on the remote control to switch sources on the projector.

  • Page 20: Adjusting Projector Settings

    C H A P T E R 3 Using your interactive whiteboard system N O T E The Mute, Volume Up and Volume Down buttons work only if there is an audio source connected to the projector for the currently selected video input source. Adjusting projector settings The remote control’s Menu button enables you to access the on-screen display to adjust the projector settings.
  • Page 21 C H A P T E R 3 Using your interactive whiteboard system Setting Notes V-Position Moves the vertical position of Don’t adjust this setting unless you’re advised the source video up or down to by SMART Support. from -5 to 5 (relative to the Apply this setting only after you make all boom projected image).
  • Page 22 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector Functions menu Auto Signal Enables or disables signal The default is off. Detect searching of input connectors. Select On to have the projector continuously switch inputs until it finds an active video source.
  • Page 23 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector ID Displays the projector’s unique You can refer to or change this number when ID number (from 0 to 99) within using the network remote management feature your organization’s network.
  • Page 24 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Network menu Network and Activates the projector’s RJ45 VGA Out connector and network features. Status Displays the current network The default is off. status (Connected, Disconnected or Off). DHCP Displays the status of the The default is on.
  • Page 25 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Group Name Displays the projector’s You can set the projector’s workgroup name workgroup name as set by an using the remote management features (see administrator (maximum 12 Remotely managing your system through a characters).

  • Page 26: Focusing The Image

    C H A P T E R 3 Using your interactive whiteboard system Setting Notes Resolution Displays the projector’s most If there is no current video input source signal, recently detected video source this setting displays the last known source signal resolution and refresh signal image resolution and refresh rate.

  • Page 27: Adjusting The Image

    Adjusting the image Refer to these notes when adjusting the projected image as described in the included SMART Board 480i6 interactive whiteboard system installation guide (smarttech.com/kb/170553). While adjusting the projected image size, shape and location, use the projector’s default background so that you can see the full projected image clearly. Don’t use other images, which might be cropped or scaled by the projector and could result in a misleading projected image size, shape and location.
  • Page 28 C H A P T E R 3 Using your interactive whiteboard system 11 12 13 14 Connector Connect to: Power Mains power supply 7-pin mini-DIN [Not used] 4-pin power mini-DIN 5V/2A output [Not used] HDMI input High-definition video and audio source (not included) DB15F RGB video input (VGA 1) Primary computer (not included)

  • Page 29: Using Your Interactive Whiteboard

    C H A P T E R 3 Using your interactive whiteboard system N O T E S To connect your interactive whiteboard, see the SMART Board 480i6 interactive whiteboard system installation guide (smarttech.com/kb/170553). To connect accessories to your interactive whiteboard, refer to the documents included with the accessories and consult the SMART Support website (smarttech.com/support) for...

  • Page 31: Appendix 4: Integrating Other Devices

    Video system signal compatibility SMART UF70 projector Connecting peripheral sources and outputs This appendix provides information on integrating your SMART Board 480i6 interactive whiteboard system with peripheral devices. Video format compatibility Your projector has a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities.
  • Page 32 C H A P T E R 4 Integrating other devices SMART UF70 projector Resolution Mode Aspect ratio Refresh rate (Hz) Match Input appearance 720 × 400 720×400_85 1.8:1 85.039 Letterbox 640 × 480 VGA 60 59.94 Full screen 640 × 480 VGA 72 72.809 Full screen...
  • Page 33 C H A P T E R 4 Integrating other devices Resolution Mode Aspect ratio Refresh rate (Hz) Match Input appearance 1600 × 1200 UXGA Full screen 1680 x 1050 1680x1050 50 16:10 49.974 Letterbox 1680 x 1050 1680x1050 50 16:10 59.954 Letterbox...

  • Page 34: Video System Signal Compatibility

    C H A P T E R 4 Integrating other devices HD and SD signal format compatibility The following tables list the projector’s high definition (HD) and standard definition (SD) format signal compatibility, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 12.

  • Page 35: Connecting Peripheral Sources And Outputs

    C H A P T E R 4 Integrating other devices Video mode Aspect ratio Horizontal Vertical Color signal frequency (kHz) frequency (Hz) (MHz) 15.62 4.43 SECAM 15.62 4.25 (f 4.06 (f PAL-M 15.73 59.94 3.58 PAL-N 15.63 3.58 PAL-60 15.73 59.94 4.43...

  • Page 37: Chapter 5: Maintaining Your Interactive Whiteboard System

    Removing and replacing the projector lamp module Resetting the lamp hours This chapter includes methods for properly cleaning and preventing damage to your SMART Board 480i6 interactive whiteboard system. Maintaining your interactive whiteboard For information on maintaining your interactive whiteboard, see the SMART Board 480 interactive whiteboard user’s guide (smarttech.com/kb/156693).

  • Page 38: Focusing And Adjusting The Projector Image

    C H A P T E R 5 Maintaining your interactive whiteboard system Before you clean the projector, press the Power button twice on the remote control to put the system in Standby mode, and then allow the lamp to cool for at least 30 minutes. Do not spray cleaners, solvents or compressed air directly on the projector.

  • Page 39: Replacing The Projector Lamp

    C H A P T E R 5 Maintaining your interactive whiteboard system Replacing the projector lamp This section provides instructions for replacing the projector lamp module. Removing and replacing the projector lamp module Eventually the lamp will dim and a message will appear reminding you to replace it. Make sure you have a replacement lamp module before proceeding with the following instructions.
  • Page 40 C H A P T E R 5 Maintaining your interactive whiteboard system When replacing the projector lamp module: Put the projector into Standby mode and wait 30 minutes for the lamp to cool completely. Do not remove any screws other than those specified in the lamp replacement instructions.
  • Page 41 C H A P T E R 5 Maintaining your interactive whiteboard system 5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp module and gently remove lamp module. N O T E Don’t try to remove these screws.

  • Page 42: Resetting The Lamp Hours

    C H A P T E R 5 Maintaining your interactive whiteboard system 4. Replace the lamp cover. 5. Connect the power cable to the wall outlet. 6. Press the Power button once on the remote control to confirm that the projector is operating and that the lamp module is correctly installed.
  • Page 43 C H A P T E R 5 Maintaining your interactive whiteboard system 2. Scroll down to Lamp Hour Reset, and then press OK. Both Lamp Hour values (Standard and Economy) reset to zero. C A U T I O N Do not reset the lamp hours unless you have just replaced the lamp module.

  • Page 45: Chapter 6: Troubleshooting Your Interactive Whiteboard System

    Chapter 6 Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining you interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving connection issues Resolving projector issues Resolving projector errors Resolving image issues Loss of signal Partial, scrolling or incorrectly displayed image Unstable or flickering image...

  • Page 46: Before You Start

    C H A P T E R 6 Troubleshooting your interactive whiteboard system This chapter provides basic troubleshooting information for your interactive whiteboard system. For issues not covered in this chapter, consult the SMART Support website (smarttech.com/support) or contact your authorized SMART reseller (smarttech.com/where). Before you start Before you troubleshoot your interactive whiteboard system or contact SMART Support or your authorized SMART reseller for assistance, you need to do the following:...

  • Page 47: Determining You Interactive Whiteboard System's Status

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Locating serial numbers The SMART Board 480 interactive whiteboard serial number is located on the lower-right edge of your interactive whiteboard’s frame. For more information, see the SMART Board 480 interactive whiteboard user’s guide (smarttech.com/kb/156693).

  • Page 48: Resolving Interactive Whiteboard Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Projected image Touch control Status and related troubleshooting Projector Power Projector Service light light Flashing amber None None The system is entering Standby mode. Error statuses Solid green Incorrect Full control There’s an issue with the projected...

  • Page 49: Resolving Projector Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system To resolve operation issues, complete the following tasks: Resolving connection issues To resolve connection issues, complete the following tasks: Confirm that the USB cable is properly connected from a fully functional USB receptacle on the computer to the interactive whiteboard.

  • Page 50: Partial, Scrolling Or Incorrectly Displayed Image

    C H A P T E R 6 Troubleshooting your interactive whiteboard system To resolve signal loss issues 1. Wait approximately 45 seconds for the image to synchronize. Some video signals require a longer synchronization period, cycling back through inputs to the one you want also help image synchronization.

  • Page 51: Unstable Or Flickering Image

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Unstable or flickering image If the projector’s image is unstable or flickering, you could have different frequency or tracking settings on your input source than on your projector. I M P O R T A N T Write down your setting values before adjusting any of the settings in the following procedure.

  • Page 52: Unaligned Projected Image

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Some laptop computers deactivate their screens when you connect a secondary display device. Refer to your computer’s manual for details on reactivating the computer's display screen. Unaligned projected image Alignment errors occur when the projected image isn’t perpendicular to the screen.

  • Page 53: Resolving Network Communication Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system 5. Check that your source input, such as your computer or video device, isn’t malfunctioning. Ensure that its audio output is on and that the volume isn’t set to the lowest position. N O T E You must display the source input’s video to play its audio through the connected speakers or audio system.

  • Page 54: Accessing The Service Menu

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Accessing the service menu C A U T I O N To prevent tampering or unintentional changes, only system administrators should access the service menu. Do not share the service menu access code with casual users of your interactive whiteboard system.

  • Page 55: Transporting Your Interactive Whiteboard System

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Resetting the projector At some point during troubleshooting, you might need to reset all projector settings. I M P O R T A N T This action is irreversible. To reset all projector settings 1.

  • Page 57: Appendix A: Remotely Managing Your System Through A Network Interface

    E-mail alerts Password settings Simple Network Management Protocol (SNMP) This chapter includes detailed instructions on how to remotely manage your SMART Board 480i6 interactive whiteboard system settings through a network interface. Web page management You can access advanced setup features via the projector’s web page. This web page enables you to manage the projector from a remote location using any computer connected to your intranet.

  • Page 58: Accessing Web Page Management

    A P P E N D I X A Remotely managing your system through a network interface Accessing web page management Before you can access the web page, connect your projector to the network, and then enable the projector’s network functions using the projector’s menu. An IP address appears on the on-screen display.
  • Page 59 A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Restore All Projector Returns projector settings to default values or refreshes the current Defaults settings. Select Submit or Refresh. I M P O R T A N T The Submit option is irreversible and resets all values.
  • Page 60 A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Color Adjusts the Red, Green, Blue, Cyan, Magenta and Yellow colors on the projector from 0 to 100 to provide custom color and luminance output.
  • Page 61 A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Aspect Ratio Adjusts the image output to Fill Screen, Match Input or 16:9. Fill Screen produces an image that fills the entire screen by stretching and scaling.

  • Page 62: Control Panel Ii

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description HDMI Assigns an alternative name to your HDMI input, which appears when you select the HDMI input. Emergency Alert Turns the on-screen alert broadcast message on or off. When enabled, this message displays over the current projected image.

  • Page 63: E-Mail Alerts

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Displays or allows you to set the projector’s IP address for your network’s primary domain name server in values between 0.0.0.0 and 255.255.255.255.

  • Page 64: Password Settings

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Displays or allows you to set the e-mail address of the e-mail alert “copy to” recipient. From Displays or allows you to set the e-mail address of the user who sends the e-mail alert.

  • Page 65: Simple Network Management Protocol (Snmp)

    A P P E N D I X A Remotely managing your system through a network interface If you forget the projector password, refer to Accessing the service menu on page 46 to set the projector setting to factory defaults. Simple Network Management Protocol (SNMP) Your projector supports a list of SNMP commands as described in the management information base (MIB) file.

  • Page 67: Appendix B: Remotely Managing Your System Through An Rs-232 Serial Interface

    Field Definitions Command/response definitions Field definitions Command/response definitions This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board 480i6 interactive whiteboard system settings through an RS-232 serial interface. smarttech.com/kb/170584...

  • Page 68: Connecting Your Room Control System To The Smart Uf70 Projector

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Connecting your room control system to the SMART UF70 projector By connecting a computer or room control system to the RS-232 serial interface of the SMART UF70 projector, you can select video inputs, start up or shut down your interactive whiteboard system and request information such as projector lamp use, current settings and network addresses.
  • Page 69 A P P E N D I X B Remotely managing your system through an RS-232 serial interface N O T E S Asynchronous mode is disabled by default in the projector. All commands should be in ASCII format. Terminate all commands with a carriage return. All responses from the projector are terminated with a command prompt.

  • Page 70: Projector Programming Commands

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Projector programming commands This section documents the projector programming commands and responses. Projector power state controls Your projector responds to commands only at certain power states and times. There are five projector power states: Powering (startup) On (operating)

  • Page 71: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field definitions Field Possible values Description The input source to switch to. None is a non- current input VGA1 selectable input and is returned in response to a Composite get input command when the projector is turned HDMI1...

  • Page 72: Video Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface > set input=next input = composite > get videoinputs videoinputs = vga1, composite, hdmi1 > get usb1source usb1source = vga1 > get usb2source usb2source = hdmi1 >...
  • Page 73 A P P E N D I X B Remotely managing your system through an RS-232 serial interface get frequency frequency =[current] set tracking [target] tracking =[current] get tracking tracking =[current] set saturation [target] saturation =[current] get saturation saturation =[current] set tint [target] tint =[current] get tint...

  • Page 74: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface set yellow [target] yellow =[current] get yellow yellow =[current] set videofreeze [target] videofreeze =[current] get videofreeze videofreeze =[current] set displayhide displayhide = [target] get displayhide displayhide = [target] Field definitions...
  • Page 75 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target frequency + val The ranges must match the OSD ranges – val = -5 ~ +5 current frequency = -5 ~ +5 The ranges must match the OSD ranges target tracking + val...
  • Page 76 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target degamma + val The ranges must match the OSD ranges – val = 0 ~ 3 current degamma = 0 ~ 3 The ranges must match the OSD ranges target red + val...
  • Page 77 A P P E N D I X B Remotely managing your system through an RS-232 serial interface current displayhide normal Matches the 3 states of the hide button on the IR frozen remote controller muted target displayhide normal Allows for setting of the mode directly or to move frozen from one state to the next sequentially.

  • Page 78: Audio Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Audio Control Audio output related controls. The range of values used for these commands should match the range displayed visually on the OSD. Command/response definitions Command Response...
  • Page 79 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible values Description target mute = on Specifies if mute is enabled or disabled. = off current mute = on Current state of the mute = off current volumecontrol = on...
  • Page 80 A P P E N D I X B Remotely managing your system through an RS-232 serial interface >set volume -15 volume=-20 smarttech.com/kb/170584...

  • Page 81: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Network information Various network information. Command/response definitions Command Response Powered off get netstatus netstatus =[current] set network network=[current] get network network=[current] set dhcp [target] dhcp =[current] get dhcp dhcp =[current]...
  • Page 82 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target network Enable/Disable network module and VGA output current dhcp = on Enable/Disable for DHCP Networking = off target dhcp Enable/Disable for DHCP Networking current ipaddr...

  • Page 83: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface System Information Various system information. Command/response definitions Command Response Powered off set autosignal [target] autosignal =[current] get autosignal autosignal =[current] set lampreminder lampreminder = [target] [current]...
  • Page 84 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off set startupscreen startupscreen = [target] [current] get startupscreen startupscreen = [current] set restoredefaults restoredefaults= [current] get lamphrs lamphrs=[current] set lamphrs [target] lamphrs=0 get syshrs...

  • Page 85: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off get modelnum modelnum=UF70, or Return the actual model of the projector UF70w set videomute [target] videomute=[current] get videomute videomute=[current] set vgaoutnetenable vgaoutnetenable =...
  • Page 86 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target highbrightness = on The ranges must match the OSD ranges = off current highbrightness The ranges must match the OSD ranges target autopoweroff + val The ranges must match the OSD ranges...
  • Page 87 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current aspectratio Fill The ranges must match the OSD ranges match 16:9 target projectionmode = front The ranges must match the OSD ranges = ceiling = rear = rear ceiling...
  • Page 88 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current fwverecp [?].[?].[?].[?] ECP Version current language Arabic Must match the OSD setting Czech German Danish Greek English Spanish Finnish French...
  • Page 89 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target contactinfo = User String current contactinfo User String current modelnum User String Must match the OSD screen current videomute The ranges must match the OSD ranges target videomute...

  • Page 90: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Service Information These are commands used in servicing and manufacturing of the unit. They should be hidden from the user during normal operation. Command/response definitions Command Response...

  • Page 91: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Definitions Field Possible Values Description current displayhour 0 ~ 20000 Current Display hours. target testpattern Set the test pattern to pattern number X (1~4). If only one test pattern, call it test pattern 1.
  • Page 92 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current factoryreset = true Set to true only if a factor reset is about to occur. = false target highspeedfan = high The ranges must match the OSD ranges...

  • Page 93: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Engineering commands These commands are to be part of the RS232 list but not viewable by the “?” command Command/response definitions Command Response Powered off set dbmsgon [target]...
  • Page 94 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current temperature To get system temperature while power on. target While setting to on, while high speed fan mode temperaturereport turn on, will send out system temperature each 5 seconds...

  • Page 95: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Additional commands These commands & behaviors are to provide backward compatibility for legacy control interfaces. Command/response definitions Command Execute command: Behaviour set input=VGA1 set input=VGA1 switch to VGA1 port set input=HDMI...
  • Page 96 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Unknown command If an unknown command is received, the projector must identify this to the user. This is accomplished by sending the following response back to the user. Please note that there is a space between “Invalid”...

  • Page 97: Appendix C: Remote Control Code Definitions

    Appendix C Remote control code definitions IR signal format: NEC1 Repeat Vendor code Key code format Byte 1 Byte 2 Byte 3 Byte 4 Input Power ( ) Menu Up ( ) Left ( ) Enter ( ) Right ( ) Down ( ) Hide Volume up ( )

  • Page 99: Appendix D: Hardware Environmental Compliance

    Appendix D Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health.

  • Page 101: Index

    Index display modes 11-12, 51 DNS 55 document cameras 27 3.5 mm audio connectors 20 dust iv DVDs 27 accessories included 3 e-mail alerts 55 optional 4 electrostatic discharge iv alarms 54 emergency alerts 54 aspect ratios 23, 26, 53 emissions iv Aspect ratios 15 environmental requirements iv...
  • Page 102 I N D E X installation Passwords 16 choosing a height 6 pen 3 choosing a location 5 pen tray interactive whiteboard about 2 about 2 Perchlorate material 91 indicators and controls of 40 peripheral sources 27 maintaining 29 pillarboxing 23, 26 using 21 power 20, 50, 62 IP address 16, 50, 54...
  • Page 103 S-video connections 26 whiteboard See interactive whiteboard SD signal compatibility 26 serial interface See RS-232 serial interface serial number 39 signal loss 41 SMART Board interactive XGA support 23 whiteboard See interactive whiteboard SMART UF75 projector See projector SMTP 56 SNMP 57 zoom 52 sound See audio...
  • Page 106 SMART Technologies smarttech.com/support smarttech.com/contactsupport smarttech.com/kb/170584...
