PRESENTATION OF SYSTEM
4.4.

Back panel

4.4.1. 750 / 1000 VA models
1000-LV

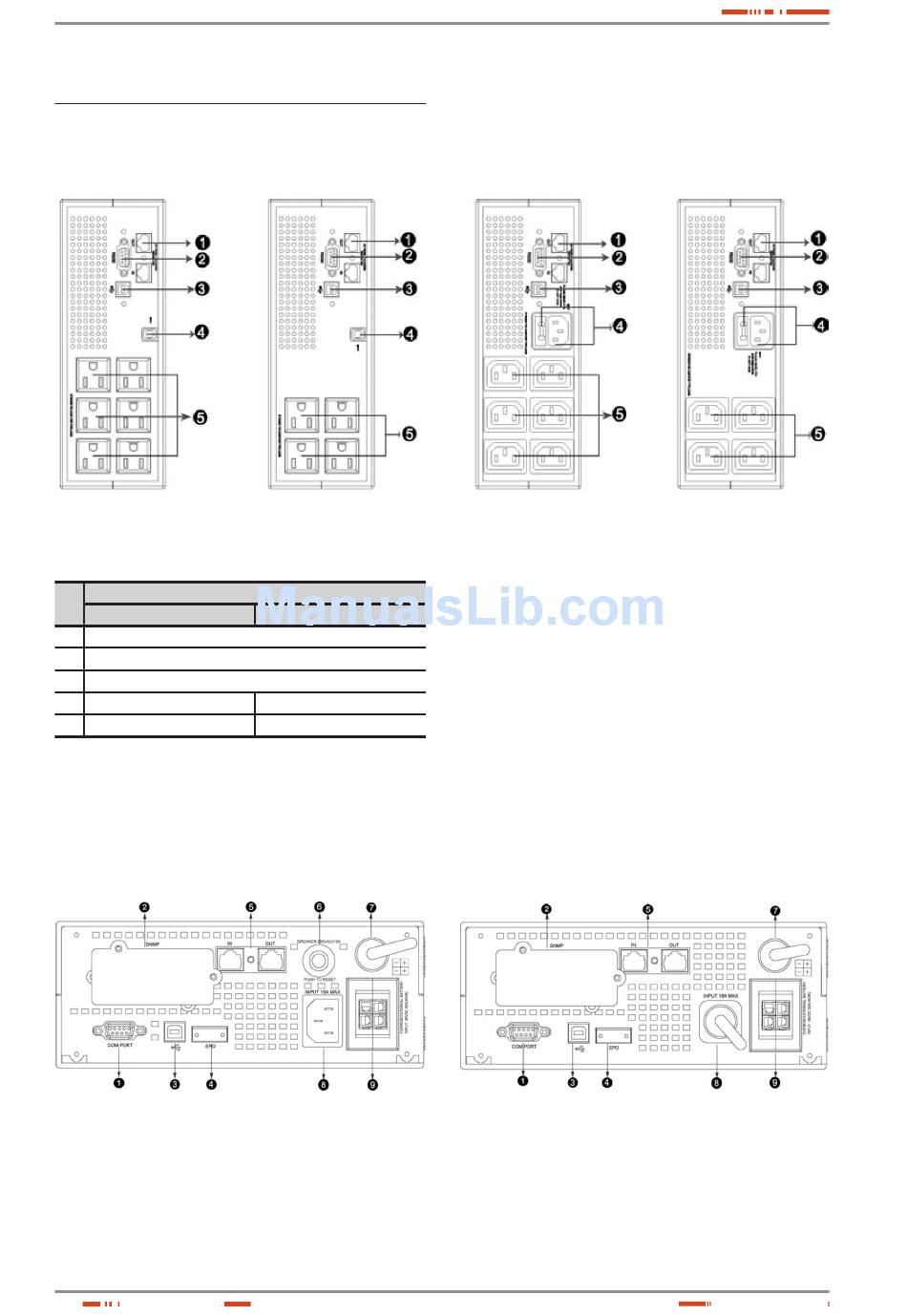

Fig. 8. View of the 750 and 1000 VA models
No.
LV model(110/120/127Vac)
1 Modem / Network Surge Protection
2
RS232 / Dry-Contact Communication Port
3
USB Communication Port
4 AC Input Power cord
5 AC Output NEMA
Table 3. Rear panel description for LV and HV models table
4.4.2. 1500 / 2000 VA models
4.4.2.1. UPS module
Fig. 9. Rear panel for HV model
10
750-LV
Function
HV model(220/230/240Vac)
AC Input & Protection
AC Output IEC
1000-HV
Fig. 10. Rear panel for LV model
750-HV
